tikz grid without top edge

Question

In this code from TikZ (finite) grid with character in each cell

\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{matrix}

\begin{document}
\begin{tikzpicture}
\draw[step=0.5cm,color=gray] (-1,-1) grid (1,1);
\matrix[matrix of nodes,nodes={inner sep=0pt,text width=.5cm,align=center,minimum height=.5cm}]{
A & B & C & D \\
E & F &  & H \\
I & J & K & L \\
M & N & O & P\\};
\end{tikzpicture}
\end{document}

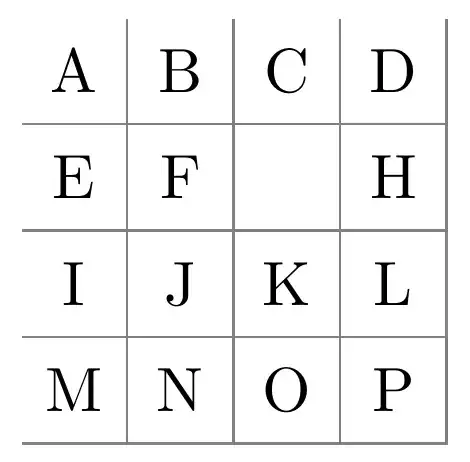

I would like to delete the top and left edges of the grid.

I have found solutions using nodes but much prefer this one with a matrix.

@JouleV Indeed, It won't survive any votes on this question. — Ethan Bolker, Mar 25 '19 at 13:36

score 3 · Accepted Answer · 2019-03-25T15:25:12.500

3

We can use \foreach:

\documentclass[tikz]{standalone}
\usetikzlibrary{matrix}

\begin{document}
\begin{tikzpicture}
%\draw[step=0.5cm,color=gray] (-1,-1) grid (1,1);
\foreach \i in {-0.5,0,0.5,1} {
    \draw[gray] (-1,-\i)--(1,-\i);
    \draw[gray] (\i,-1)--(\i,1);
}
\matrix[matrix of nodes,nodes={inner sep=0pt,text width=.5cm,align=center,minimum height=.5cm}]{
A & B & C & D \\
E & F &  & H \\
I & J & K & L \\
M & N & O & P\\};
\end{tikzpicture}
\end{document}

Honestly I don't think nodes or matrices have any thing to do here.

This approach is based on marmot 's creative way, which is nicer and more tricky:

\documentclass[tikz]{standalone}
\usetikzlibrary{matrix}

\begin{document}
\begin{tikzpicture}
\draw[step=0.5cm,color=gray] ({-1cm+0.2pt},-1) grid (1cm,{1cm-0.2pt});
\matrix[matrix of nodes,nodes={inner sep=0pt,text width=.5cm,align=center,minimum height=.5cm}]{
A & B & C & D \\
E & F &  & H \\
I & J & K & L \\
M & N & O & P\\};
\end{tikzpicture}
\end{document}

edited Mar 25 '19 at 15:25

answered Mar 25 '19 at 13:39

1

Thanks. There is a "matrix" in the code. Other answers to my original question used nodes. – Ethan Bolker Mar 25 '19 at 13:46
@EthanBolker No problem. You are welcome ;) – Mar 25 '19 at 13:47
Maybe mention also \draw[step=0.5cm,color=gray] (-0.99,-1) grid (1,0.99); which is shorter and gives (for all practical purposes) the same output. – Mar 25 '19 at 15:15
@marmot Ohh your way is wonderfully creative :)) I did not even think of that. However they are not mathematically correct. – Mar 25 '19 at 15:17
@JouleV What do you mean by "not mathematically correct"? It is as correct as a truncated grid can be. – Mar 25 '19 at 15:18
@marmot As I know the default value of line width is 0.4pt, so to make it mathematically correct I think we should use \draw[step=0.5cm,color=gray] ({-1cm+0.2pt},-1) grid (1cm,{1cm-0.2pt}); :) – Mar 25 '19 at 15:21
@JouleV And what about the line cap? BTW, this is why I wrote "or all practical purposes". – Mar 25 '19 at 15:28
@marmot That's why I wrote "mathematically" :) – Mar 25 '19 at 15:32
I see. "mathematically" = "doesn't matter" ;-) – Mar 25 '19 at 15:32

score 2 · Answer 2 · answered Mar 25 '19 at 16:03

Another solution. It draws the grid with a matrix of drawn nodes. After that, left and top border are deleted with a white supperposed line.

\documentclass[tikz,border=2mm]{standalone}
\usetikzlibrary{matrix}

\begin{document}
\begin{tikzpicture}
\matrix[matrix of nodes,nodes={draw=gray, anchor=center, minimum size=.6cm}, column sep=-\pgflinewidth, row sep=-\pgflinewidth] (A) {
A & B & C & D \\
E & F &  & H \\
I & J & K & L \\
M & N & O & P\\};
\draw[white] ([xshift=.5\pgflinewidth]A-4-1.south west)|-([yshift=-.5\pgflinewidth]A-1-4.north east);
\end{tikzpicture}
\end{document}
