Vertical spacing in table

Question

I am trying to create a table, but inside has some mathematical fractions which is too wide for the table.

Originally I used arraystretch 1.4, the vertical space is too tight. So I wanted to stretch wider.

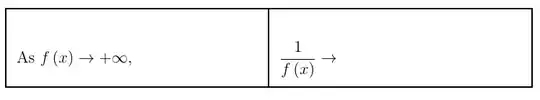

When I used 2.4, the problem is that it is not vertically aligned anymore.

The problem might not seem apparent in this, so when I increase further to 4, it is even less vertically aligned.

Can someone help me understand and find the correct solution? Thanks in advance.

PS: Incidentally, I use LuaLaTeX as the default compiler.

\documentclass[twoside,14pt]{extarticle}
\usepackage{array}
\newcolumntype{L}[1]{>{\raggedright\arraybackslash}m{#1}}

\usepackage{amsmath}

\begin{document}

    \renewcommand{\arraystretch}{2.4}
    \setlength\tabcolsep{1.5\tabcolsep}
    \setlength\arrayrulewidth{1.5pt}
    \begin{center}
        \begin{tabular}{!{\vrule width 1.5pt} L{75mm} !{\vrule width 1.5pt} L{75mm} !{\vrule width 1.5pt}}
            \hline
            As $\displaystyle f\left(x\right) \rightarrow +\infty$, & $\displaystyle \dfrac{1}{f\left(x\right)} \rightarrow$
            \\ \hline
        \end{tabular}
    \end{center}

\end{document}

https://tex.stackexchange.com/a/394792/2388 – Ulrike Fischer Apr 19 '19 at 22:37 — Ulrike Fischer, Apr 19 '19 at 22:37

score 2 · Accepted Answer · answered Apr 19 '19 at 23:06

The cellspace ensures a minimal vertical padding of cells in columns with specifier prefixed with the letter S (or C if you load siunitx). This works better with the pcolumn type, for some reason:

\documentclass[twoside,14pt]{extarticle}

\usepackage{array}
\usepackage{cellspace}
\setlength{\cellspacetoplimit}{8pt}
\setlength{\cellspacebottomlimit}{8pt}
\newcolumntype{L}[1]{>{\raggedright\arraybackslash}S{p{#1}}}

\usepackage{amsmath}

\begin{document}

    \setlength\tabcolsep{1.5\tabcolsep}
    \setlength\arrayrulewidth{1.5pt}
    \begin{center}
        \begin{tabular}{!{\vrule width 1.5pt} L{75mm} !{\vrule width 1.5pt} L{75mm} !{\vrule width 1.5pt}}
            \hline
            As $\displaystyle f\left(x\right) \rightarrow +\infty$, & then $\displaystyle \dfrac{1}{f\left(x\right)} \rightarrow$
            \\ \hline
        \end{tabular}
    \end{center}

\end{document}

@James If this answer helps you, consider accepting it by clicking the checkmark on the left of the answer. If you have already done so, flag this comment as no longer needed. — , Apr 20 '19 at 07:53

score 2 · Answer 2 · answered Apr 20 '19 at 08:32

with macro \makegapedcells from the makecell pacakege. after removing all unnecessary code from your mwe the code of mwe is:

\documentclass[twoside,14pt]{extarticle}
\usepackage{array,
            makecell}   % new
\newcolumntype{L}[1]{>{\raggedright\arraybackslash}p{#1}}

\usepackage{amsmath}

\begin{document}
    \begin{center}
\setlength\tabcolsep{1.5\tabcolsep}
\setlength\arrayrulewidth{1.5pt}
\setcellgapes{5pt}
\makegapedcells
    \begin{tabular}{| L{75mm} |  L{75mm} |}
        \hline
        As $f(x) \rightarrow +\infty$, & then $\dfrac{1}{f(x)} \rightarrow$ \\
        \hline
    \end{tabular}
    \end{center}
\end{document}

note: this solution doesn't works with m columns type!
