Superlattice in Tikz

Question

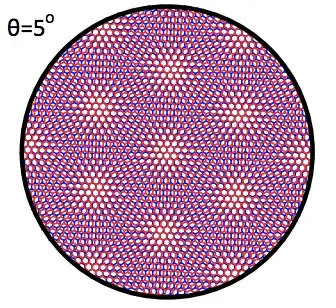

I'm trying to work out how to plot two (hexagonal) lattices stacked on top of each other at a relative twist angle on tikz -- see the attached examples. I know how to plot a lattice using a for loop, but I'm a bit stuck on how to plot another one rotated by a given angle. Thanks in advance!

.......................................

Answer 1

This question is interesting since other methods to draw hexagonal grid does not quite work here.

\documentclass[border=9,tikz]{standalone}

\begin{document}

\tikz{
    \draw(-5,-5)rectangle(5,5);
    \begin{pgfinterruptboundingbox}
        \draw[x=10.3923pt,y=18pt,dash pattern={on 6pt off 12pt},cyan]
            foreach\j in{0,120,240}{
                [rotate=\j]
                foreach\i in{-10,...,9}{
                    (\i,-10)--(\i,10)(\i+.5,-10.5)--(\i+.5,10.5)
                }
            }
        ;
        \draw[x=10.3923pt,y=18pt,dash pattern={on 6pt off 12pt},rotate=5]
            foreach\j in{0,120,240}{
                [rotate=\j]
                foreach\i in{-10,...,9}{
                    (\i,-10)--(\i,9.5)(\i+.5,-9.5)--(\i+.5,10)
                }
            }
        ;
    \end{pgfinterruptboundingbox}
}


\end{document}

Answer 2

Such effects can be achieved with nonlinear transformations. If you provide more detailed information the prescriptions, this can be adjusted accordingly. In this version, I use a slight generalization of the \flagtransrformation from this answer, and the lattice points are taken from this answer.

\documentclass[tikz,border=3.14mm]{standalone}
\usepgfmodule{nonlineartransformations}
\makeatletter
\def\latticetilt{%
\pgf@xa=\pgf@x%
\pgf@ya=\pgf@y%
%\typeout{old\space x=\pgf@xa\space old \space y=\pgf@ya}%
\pgfmathsetmacro{\myx}{\pgf@xa+3*sin(\pgf@ya*1.8)}%
\pgf@x=\myx pt%
\pgfmathsetmacro{\myy}{\pgf@ya+3*sin(\pgf@xa*1.8)}%
%\typeout{at\space x=\the\pgf@xa:\space new\space y=\myy}%
\pgf@y=\myy pt}
\makeatother
\begin{document}
\begin{tikzpicture}[hexa lattice/.style={insert path={% https://tex.stackexchange.com/a/6025/121799
foreach \i in {\the\numexpr-#1-1\relax,...,#1}
   {foreach \j in {\the\numexpr-#1*2\relax,...,\the\numexpr#1*2\relax} {
  foreach \a in {0,120,-120} { ({3*\i},{2*sin(60)*\j}) -- +(\a:1)}
  foreach \a in {0,120,-120} { ({3*\i+3*cos(60)},{2*sin(60)*\j+sin(60)}) --
  +(\a:1)}}}}},hexa lattice/.default=3]
  \clip (-5,-5) rectangle (5,5);
  \draw[scale=0.3,hexa lattice=5];
  \begin{scope}
  \pgftransformnonlinear{\latticetilt}
  \draw[blue,scale=0.3,hexa lattice=5];
  \end{scope}
\end{tikzpicture}
\end{document}

This is a variation in which the parameters are stored in pgf keys.

\documentclass[tikz,border=3.14mm]{standalone}
\usepgfmodule{nonlineartransformations}
\makeatletter
\def\latticetilt{%
\pgf@xa=\pgf@x%
\pgf@ya=\pgf@y%
%\typeout{old\space x=\pgf@xa\space old \space y=\pgf@ya}%
\pgfmathsetmacro{\myx}{\pgf@xa+\pgfkeysvalueof{/tikz/lattice/amplitude}*sin((\pgf@ya/\pgfkeysvalueof{/tikz/lattice/spacing})*360/\pgfkeysvalueof{/tikz/lattice/superlattice period})}%
\pgf@x=\myx pt%
\pgfmathsetmacro{\myy}{\pgf@ya+\pgfkeysvalueof{/tikz/lattice/amplitude}*sin((\pgf@xa/\pgfkeysvalueof{/tikz/lattice/spacing})*360/\pgfkeysvalueof{/tikz/lattice/superlattice period})}%
%\typeout{at\space x=\the\pgf@xa:\space new\space y=\myy}%
\pgf@y=\myy pt}
\makeatother
\begin{document}
\begin{tikzpicture}[hexa lattice/.style={insert path={% https://tex.stackexchange.com/a/6025/121799
foreach \i in {\the\numexpr-#1-1\relax,...,#1}
   {foreach \j in {\the\numexpr-#1*2\relax,...,\the\numexpr#1*2\relax} {
  foreach \a in {0,120,-120} {
  ({\pgfkeysvalueof{/tikz/lattice/spacing}*3*\i},{\pgfkeysvalueof{/tikz/lattice/spacing}*2*sin(60)*\j})
  -- +(\a:\pgfkeysvalueof{/tikz/lattice/spacing})}
  foreach \a in {0,120,-120} {
  ({\pgfkeysvalueof{/tikz/lattice/spacing}*(3*\i+3*cos(60))},
  {\pgfkeysvalueof{/tikz/lattice/spacing}*(2*sin(60)*\j+sin(60))}) --
  +(\a:\pgfkeysvalueof{/tikz/lattice/spacing})}}}}},hexa lattice/.default=3,
  lattice/.cd,spacing/.initial=1,superlattice
  period/.initial=30,amplitude/.initial=3]
  \clip (-5,-5) rectangle (5,5);
  \draw[lattice/spacing=0.3cm,hexa lattice=5];
  \begin{scope}
  \pgftransformnonlinear{\latticetilt}
  \draw[blue,lattice/spacing=0.3cm,hexa lattice=5];
  \end{scope}
\end{tikzpicture}
\end{document}
