What do I have to set to get a coordinate sytem like enter image description here

MWE:

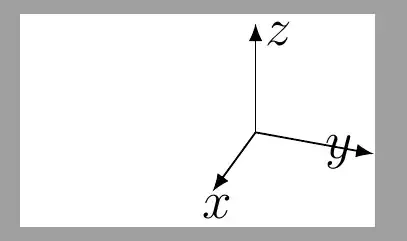

enter image description here

\documentclass[]{standalone}
\usepackage{tikz}
\usepackage{tikz-3dplot}
\begin{document}
\tdplotsetmaincoords{60}{110}
%\tdplotsetrotatedcoords{30}{45}{0}
%\tdplotsetcoord{point}{1}{33}{44}
%\tdplotsetrotatedcoords{00}{0}{0}

\begin{tikzpicture}[
tdplot_main_coords,
%tdplot_rotated_coords,
]
\foreach \P/\s/\Pos in {(1,0,0)/x/below, (0,1,0)/y/left, (0,0,1)/z/right}
\draw[-latex] (0,0,0) -- \P node[\Pos, pos=0.9,inner sep=2pt]{$\s$};
\end{tikzpicture}
\end{document}
cis
  • 8,073
  • 1
  • 16
  • 45

1 Answers1

1

The desired coordinate system is not an orthographic projection and can thus not obtained with tikz-3dplot (unless you overrule it by hand).

  • Can I create something like https://i.stack.imgur.com/5a48W.png ? I want the origin to be the foremost point and the axes to go backwards. – cis Jul 24 '19 at 01:43
  • @cis I am currently traveling and cannot see figures because they get censored away. –  Jul 25 '19 at 03:52
