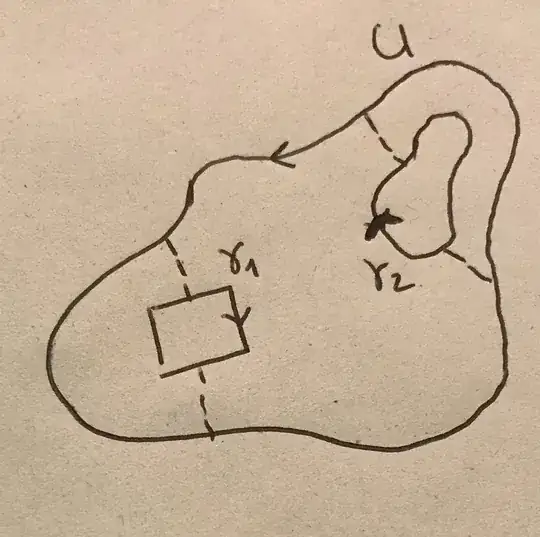

Could someone help me drawing this picture?enter image description here

It should be a complex domain U, not simply connected (with two curves inside linked to the domain frontier with dashed lines)

Lorenzo
  • 45
  • 1
    What have you tried? Where did you get stuck? – Benjamin McKay Oct 21 '19 at 16:51
  • 1
    You can just draw by hand, scan in the drawing, use includegraphics. – Benjamin McKay Oct 21 '19 at 16:52
  • Thank everybody... I didn't have so deeply knowledge about tools used in your answers (and I made this question perhaps too soon after the previous, since I didn't see the answer: my fault, I am a new user) but I'm going to update my knowledge. In future I will surely share my attempts basing on what I have learned. – Lorenzo Oct 21 '19 at 18:42

1 Answers1

1

The purpose of this site is not to let someone else convert screen shots into LaTeX code. Rather, you should ask questions from which you and others can learn. For instance, this question can be answered with the very tools that were provided in an answer to your previous question. These tools comprise drawing irregular shapes and adding an arrow at some position of a path. (I did that very quickly.)

\documentclass[tikz,border=3mm]{standalone}
\usepackage{amsfonts}
\usetikzlibrary{arrows.meta,bending,decorations.markings,intersections} %< added
\tikzset{% https://tex.stackexchange.com/a/430239
    arc arrow/.style args={%
    to pos #1 with length #2}{
    decoration={
        markings,
         mark=at position 0 with {\pgfextra{%
         \pgfmathsetmacro{\tmpArrowTime}{#2/(\pgfdecoratedpathlength)}
         \xdef\tmpArrowTime{\tmpArrowTime}}},
        mark=at position {#1-\tmpArrowTime} with {\coordinate(@1);},
        mark=at position {#1-2*\tmpArrowTime/3} with {\coordinate(@2);},
        mark=at position {#1-\tmpArrowTime/3} with {\coordinate(@3);},
        mark=at position {#1} with {\coordinate(@4);
        \draw[-{Stealth[length=#2,bend]}]
        (@1) .. controls (@2) and (@3) .. (@4);},
        },
     postaction=decorate,
     },arr/.style={arc arrow=to pos #1 with length 2.3mm},
     set mark/.style args={#1/#2}{postaction={decorate,decoration={markings,
     mark=at position #1 with {\coordinate(#2);}}}}
}
\begin{document}
\begin{tikzpicture}[declare function={rr(\t)=2*(1+0.2*sin(2*\t+40)-0.3*sin(\t-10)+0.1*rnd);
f1(\t)=0.5*(1+0.2*sin(2*\t+120)+0.1*rnd);}]
  \pgfmathsetseed{42}
  \draw[set mark={0.05/p0},arr=0.1,set mark={0.23/p2},set mark={0.55/p3},set mark={0.8/p1}] plot[smooth cycle,variable=\t,samples at={0,45,...,315}] (\t:{rr(\t)});
  \draw[rotate around={20:(-1.4,-1)},arr=0.65] (-1.4,-1) rectangle
    ++ (0.8,0.6) (-1,-0.4) coordinate (q2) (-1,-1) coordinate (q3);
  \path (@2) node[above right] {$\gamma_1$};
  \draw[arr=0.3,set mark={0.65/q0},set mark={0.95/q1},xshift=1cm] plot[smooth cycle,variable=\t,samples
  at={0,45,...,315}] (-\t:{f1(\t)});
  \path (@2) node[below left] {$\gamma_2$};
  \path (45:2.8) node{$U$};
  \draw[dashed] (p0) -- (q0) (p1) -- (q1) (p2) -- (q2) (p3) -- (q3);
\end{tikzpicture}
\end{document}
