How to write "loop" in the following PSTricks example?

Question

\documentclass[border=10pt,pstricks]{standalone}
\usepackage{xfp,pst-eucl}
\begin{document}
\begin{pspicture}[showgrid,linejoin=1](-2,-2)(2,2)
%%%
\def\mypoly#1#2{% #1: sides, #2: angles
\pnode(0,0){O}
\def\n{#1}
\def\goc{\fpeval{round(360/#1,2)}} %%  https://tex.stackexchange.com/questions/425043/decimal-on-divison
\multido{\iA=1+1}{#1}{\pnode(1;\fpeval{#2+\iA*\goc}){A\iA}}
\pstProjection[PointName=,PointSymbol=none]{A1}{A2}{O}[K]
\pstTriangleOC[fillstyle=solid,fillcolor=red]{A1}{A2}{A3}
\pspolygon(A1)(A2)(A3)(A4)(A5)%(A6)%(A7)%(A8)
\pstCircleOA[fillstyle=solid,fillcolor=white]{O}{K}}
%%%%%
\mypoly{5}{18}
\end{pspicture}
\end{document}

Question:

You can see \pspolygon(A1)(A2)(A3)(A4)(A5)%(A6)%(A7)%(A8)

With \mypoly{5}{18} n=5 , LaTeX print \pspolygon(A1)(A2)(A3)(A4)(A5); \mypoly{4}{45} n=4 , LaTeX print \pspolygon(A1)(A2)(A3)(A4); ...

How can I do?

You can use loop of TeX. – Black Mild Oct 31 '19 at 18:29 — Black Mild, Oct 31 '19 at 18:29

score 4 · Accepted Answer · 2019-10-31T00:20:42.590

If I understand the question correctly, you want to automatically involve all of the vertices in the polygon. This can be achieved by building up the list of vertices in the same \multido in which you define the vertices.

\documentclass[border=10pt,pstricks]{standalone}
\usepackage{xfp,pst-eucl}
\begin{document}
\begin{pspicture}[showgrid,linejoin=1](-2,-2)(2,2)
%%%
\def\mypoly#1#2{%
\pnode(0,0){O}
\def\n{#1}
\def\goc{\fpeval{round(360/#1,2)}} %%  https://tex.stackexchange.com/questions/425043/decimal-on-divison
\edef\mypoly{}
\multido{\iA=1+1}{#1}{\pnode(1;\fpeval{#2+\iA*\goc}){A\iA}%
\xdef\mypoly{\mypoly(A\iA)}}
\pstProjection[PointName=,PointSymbol=none]{A1}{A2}{O}[K]
\pstTriangleOC[fillstyle=solid,fillcolor=red]{A1}{A2}{A3}
\edef\temp{\noexpand\pspolygon\mypoly}
\temp
\pstCircleOA[fillstyle=solid,fillcolor=white]{O}{K}}
%%%%%
%\mypoly{5}{18}
%\mypoly{6}{18}
\mypoly{7}{18}
\end{pspicture}
\end{document}

Of course, you may find it more convenient to define the full pic like this.

\documentclass{article}
\usepackage{pstricks}
\usepackage{xfp,pst-eucl}
\begin{document}
\def\mypolypic#1#2{%
\begin{pspicture}[showgrid,linejoin=1](-2,-2)(2,2)
%%%
\pnode(0,0){O}
\def\n{#1}
\def\goc{\fpeval{round(360/#1,2)}} %%  https://tex.stackexchange.com/questions/425043/decimal-on-divison
\edef\mypoly{}
\multido{\iA=1+1}{#1}{\pnode(1;\fpeval{#2+\iA*\goc}){A\iA}%
\xdef\mypoly{\mypoly(A\iA)}}
\pstProjection[PointName=,PointSymbol=none]{A1}{A2}{O}[K]
\pstTriangleOC[fillstyle=solid,fillcolor=red]{A1}{A2}{A3}
\edef\temp{\noexpand\pspolygon\mypoly}
\temp
\pstCircleOA[fillstyle=solid,fillcolor=white]{O}{K}
\end{pspicture}}
%%%%%
\multido{\iB=3+1}{8}{\noindent
\mypolypic{\iB}{18}\ifodd\iB\else\\\fi}

\end{document}

user187802 · Answer 2 · 2019-10-31T09:29:12.770

1

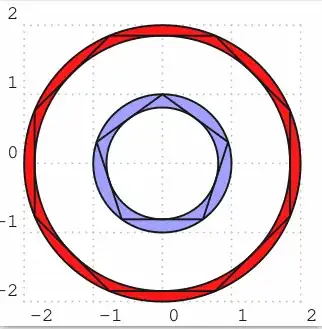

no need for any loop. You should make things simpel and not complecated! Simply use \psRing and \PstPolygon. Can be extended to any value n with simple geometry equations.

\documentclass[border=10pt,pstricks]{standalone}
\usepackage{xfp,pst-eucl,pst-poly}
\newcommand\myPoly[2][]{{%
  \psRing[fillstyle=solid,fillcolor=red,#1](0,0){\fpeval{cos(1/#2*3.14)}}{1}%
  \PstPolygon[PolyNbSides=#2,PstPicture=false,PolyRotation=\fpeval{90/#2},#1]%
}}
\begin{document}

\begin{pspicture}[showgrid,linejoin=1](-2,-2)(2,2)
\myPoly[unit=2,PolyRotation=\fpeval{180/8}]{8}
\myPoly[fillcolor=blue!40]{5}
\end{pspicture}

\end{document}

edited Oct 31 '19 at 09:29

answered Oct 31 '19 at 09:15

user187802

16,850

Your simplification is differ from my thinking! Really, my code does not use pst-poly package (I have seen it before) and \psRing , both is difficult for junior users as myself. :-), – Oct 31 '19 at 10:04
then calculate the inner and outer radius which is simple for a polygon. – user187802 Oct 31 '19 at 10:24
