I am using texlive-full installation and TexMaker IDE.
I have done a manual installation (mkdir and copy paste .sty file) under
/usr/share/texlive/texmf-dist/tex/latex/nicematrix/nicematrix.sty
When I include
\usepackage{nicematrix} and try to compile with PDFLatex my IDE goes into an infinite run. I have to break it with a stop button. At this point I get the following errors:
Here is the error log file: link
Please help me fix this. Thank you.
Things tried:
- Checked for all other dependent packages -- they exist
- Did a user wide installation -- same error
- Restarting everything after installation -- same error
Below is the minimum working example:
\documentclass[letterpaper]{article}
\usepackage{proceed2e}
\usepackage[margin=1in]{geometry}
% Set the typeface to Times Roman
\usepackage{times}
% The following packages can be found on http:\\www.ctan.org
\usepackage[]{graphics}
\usepackage{epsfig} % for postscript graphics files
\graphicspath{{figs/}}
\usepackage[font=small,skip=6pt]{caption}
% Algorithm Environment
\usepackage{algpseudocode,algorithm,algorithmicx}
\renewcommand{\algorithmicrequire}{\textbf{Input:}}
\renewcommand{\algorithmicensure}{\textbf{Output:}}
% Custom colors
\usepackage{color}
\usepackage[dvipsnames]{xcolor}
\usepackage[hidelinks]{hyperref}
\usepackage{amsmath}
\usepackage{amssymb} % assumes amsmath package installed
\usepackage{pifont}
\usepackage{marvosym}
\usepackage{mathtools}
\usepackage{mathrsfs} %
\usepackage{enumerate}
\usepackage{graphicx}
\usepackage{subfig}
\usepackage{tikz}
\usetikzlibrary{bayesnet}
\usetikzlibrary{decorations.pathreplacing,calc} % braces {}
\usetikzlibrary{shapes,arrows,positioning}
\usepackage{pgfplots}
\pgfplotsset{compat=1.8}
\tikzset{
block/.style={
draw,
rectangle,
minimum height=2em,
minimum width=5em,
},
sum/.style={
draw,
circle,
minimum size=2em
},
input/.style={coordinate},
output/.style={coordinate},
mytext/.style={
draw,
text depth=4pt,
text height=10pt
}
}
\def\-{\raisebox{.75pt}{-}}
\usepackage{multirow}
% For developing the paper
%-------------------------
\usepackage[colorinlistoftodos,prependcaption,textwidth=20mm,textsize=tiny,color=yellow]{todonotes}
\usepackage{xargs}
\newcommandx{\unsure}[2][1=]{\todo[linecolor=red,backgroundcolor=red!25,bordercolor=red,#1]{#2}}
\newcommandx{\change}[2][1=]{\todo[linecolor=blue,backgroundcolor=blue!25,bordercolor=blue,#1]{#2}}
\newcommandx{\info}[2][1=]{\todo[linecolor=OliveGreen,backgroundcolor=OliveGreen!25,bordercolor=OliveGreen,#1]{#2}}
\newcommandx{\improvement}[2][1=]{\todo[linecolor=Plum,backgroundcolor=Plum!25,bordercolor=Plum,#1]{#2}}
\newcommandx{\thiswillnotshow}[2][1=]{\todo[disable,#1]{#2}}
\usepackage[normalem]{ulem}
\usepackage{balance}
\usepackage{nicematrix} % <-------------------HERE
%%% WRITING BEGINS %%%%
%-------------------------
\title{\LARGE \bf
Large Network Modelling Using Horses and Apples
}
\renewcommand\footnotemark{}
\renewcommand\footnoterule{}
\author{John Doe$^{\dagger}$, John Ek $^{*}$ and John Jen$^{\dagger \theta}$ }
\thanks{$^{\theta}$Author order to be decided.}
\begin{document}
\maketitle
\begin{abstract}
Real-world large can be modelled using
Graphs. Such a model is parametrised by a basis matrix, whose
size is orders of
\end{abstract}
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\section{Introduction}
\label{sec:Introduction}
Real-world very large networks can be modelled using
Graphs. Such a model is parametrised by a basis matrix, whose
size is orders of magnitude smaller, blah blah
\bibliographystyle{IEEEtran}
\balance
\bibliography{references}
\end{document}
EDIT:: Fixed! So the point raised by @daleif is correct. My version of TeXLive - which is the actual distribution version for ubuntu 16.04, is 2015. This is too old. I tried many things as seen in the comments and none of them work - ended up crashing my Ubuntu also, as I removed some dependencies.
Now I finally did the following: 1. Updated Ubuntu Xenial generic, headers, images etc. 2. added ppa with :ppa-link 3. Update, Upgrade, Autoremove 4. I have texlive version 2018. No side install. No equivs. 5. This has nicematrix package by default!
Update-1: Any idea why just NiceArray and all its subtypes bNiceArray and so on are "package not found" but NiceMatrix works just fine? Below is the MWE that does not compile/work (All examples are from Stack Exchange/Documentation):
\documentclass[12pt,oneside]{article}
\usepackage{nicematrix}
\begin{document}
\[
P = \begin{bNiceArray}{C CCCC}
a & 0 & 0 & \dots & 0 \\
0 & \Block{4-4}<\huge>{Q} \\
0 & & & & \\
\vdots & & & & \\
0 & & & &
\end{bNiceArray}
\end{document}

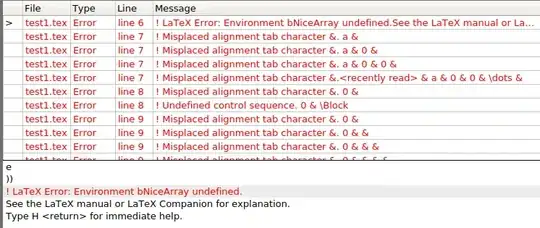

Output:
The following example compiles but executes with some bugs:
\documentclass[12pt,oneside]{article}
\usepackage{nicematrix}
\begin{document}
$\begin{pNiceMatrix}[nullify-dots]
a& b& 0&& \Cdots & 0\\b& a& b& \Ddots && \Vdots \\0& b& a& \Ddots &&\\& \Ddots & \Ddots & \Ddots && 0\\\Vdots &&&&& b\\0& \Cdots && 0& b& a
\end{pNiceMatrix}$
\bigskip
\bigskip
\bigskip
\bigskip
\[
\begin{pmatrix}
1 & \cdots & \cdots & 1 \\
0 & \ddots & & \vdots \\
\vdots & \ddots & \ddots & \vdots \\
0 & \cdots & 0 & 1
\end{pmatrix}
\]
\end{document}

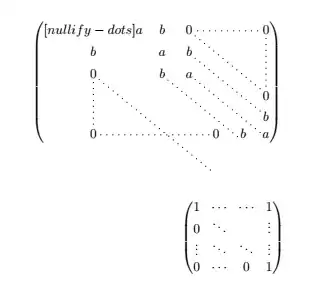

OUTPUT:
