How can i draw a circuit like this using circuitikz?

https://cdn.sparkfun.com/assets/learn_tutorials/2/1/6/43-xor_circuit.png

electroman
  • 3
  • 1
    Welcome to TeX.SE! What you try so far? For logic gates see CircuiTikZ manual, section 3.24 Logic gates, page 97. At bottom of the page 101 you can find some examples of elementary logic circuits. This can serve for starting point. Also see https://tex.stackexchange.com/questions/174663/colorful-logic-gates-using-circuitikz?rq=1 and https://tex.stackexchange.com/questions/332639/logic-gates-circuitikz?rq=1. Both questions are quite similar what you like to draw. – Zarko Feb 23 '20 at 13:41
  • Thank you for your comment! I looked at them both but couldn't make it at all. – electroman Feb 23 '20 at 13:55
  • Have you spent your four or five hours to give it a real try? Unless you're asking for someone to draw your circuit for you, that's about the minimum amount of time you need to learn to do anything useful in circuitikz from a zero start – Scott Seidman Feb 23 '20 at 14:13
  • Thank you for your suggestions. I will make it like that after this time. Sorry for taking time – electroman Feb 23 '20 at 15:17
  • And also how can i learn circuitikz very well? Any other sources than documentation? – electroman Feb 23 '20 at 15:18
  • @electroman you can read a bit in the pgfmanual, circuitikz uses TikZ below the hood and most of the syntax is "just" TikZ. Also the circuitikz manual has quite a few examples and a tutorial inside. – Skillmon Feb 23 '20 at 15:25
  • Thank you i will give it a try. – electroman Feb 23 '20 at 15:34

1 Answers1

3

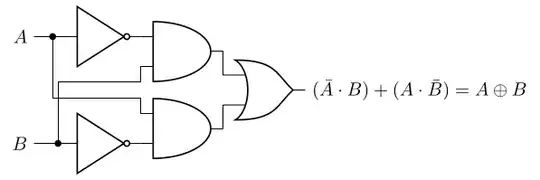

The following draws your logic circuit. Everything is placed relative to A and if you change something in the A path, the B path should stretch/shrink accordingly.

\documentclass[border=3.14,tikz]{standalone}

\usepackage{circuitikz}
\usetikzlibrary{calc}

\begin{document}
\begin{tikzpicture}
  \draw (0,0) coordinate[label={[left]$A$}](A)
    to[short,-*] ++(.35,0) coordinate(jA)
    -- ++(.25,0) node[american not port, anchor=west](notA){} (notA.east)
    node[american and port, anchor=in 1](andA){}
    (A) ++(0, -2) coordinate[label={[left]$B$}](B)
    to[short,-*] ($(B-|jA)+(0.1,0)$) coordinate(jB)
    -- (B-|notA.west) node[american not port, anchor=west](notB){} (notB.east)
    node[american and port, anchor=in 2](andB){}
    (jA) -- ($(jA)!.8!(jA|-andB.in 1)$) -| (andB.in 1) -- +(.01,0)
    (jB) -- ($(jB)!.8!(jB|-andA.in 2)$) -| (andA.in 2) -- +(.01,0)
    ($(A)!.5!(B)$) coordinate(vc)
    (vc-|andB.out) node[american or port, anchor=west](or){}
    (andA.out) ++(-.01,0) -| (or.in 1) -- +(0.01,0)
    (andB.out) ++(-.01,0) -| (or.in 2) -- +(0.01,0)
    (or.out) node[right]{$(\bar{A}\cdot B)+(A\cdot\bar{B})=A\oplus B$}
    ;
\end{tikzpicture}
\end{document}

enter image description here
