How can I shift the text of a node?

Question

I'm using tikz to represent an axe. The code is the following:

\documentclass[a4paper,oneside,12pt]{article}
\usepackage{tikz}
\usepackage{xcolor}
\usetikzlibrary{trees}
\usepackage{relsize}
\usepackage{longtable,geometry}
\usepackage[frenchb]{babel}
\usepackage{wrapfig}
\usepackage{graphicx}
\geometry{dvips,a4paper,margin=1in}
\usepackage[utf8]{inputenc}
\usepackage[T1]{fontenc}
\usepackage[babel]{csquotes}
\usetikzlibrary{decorations}
\usetikzlibrary{decorations.pathmorphing}
\usetikzlibrary{decorations.pathreplacing}
\usetikzlibrary{decorations.shapes}
\usetikzlibrary{decorations.text}
\usetikzlibrary{decorations.markings}
\usetikzlibrary{decorations.fractals}
\usetikzlibrary{decorations.footprints}
\MakeAutoQuote{«}{»}
\pagestyle{headings}

\begin{document}
\begin{center}
\begin{tikzpicture}
\draw[thick,>=stealth,->] (0,0) node[below] {$-\infty$} --  (2.8,0) node[below]
{$\frac{\mathlarger{-e}}{\mathlarger{(1-\theta)}}-f$} node {$\bullet$} -- (5.6,0)
node[below] {$\frac{\mathlarger{-v}}{\mathlarger{(1-\theta)}}-f$} node {$\bullet$} --
(8.4,0) node[below] {$\frac{-2f-e-\sqrt{e^2-\frac{4ev}{1-\theta)}}}{2}$} node
{$\bullet$} -- (11.4,0) node[below] {$\frac{-2f-e+\sqrt{e^2-\frac{4ev}
{1-\theta)}}}{2}$} node {$\bullet$} -- (14.2,0) node[below] {$-f$} node{$\bullet$}--
(17,0) node[below] {$\omega(M)$} ;

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(0,0) -- (5.57,0) node[above,pos=0.5] {E1};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(5.63,0) -- (8.37,0) node[above,pos=0.5] {E1, E2};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(8.43,0) -- (11.37,0) node[above,pos=0.5] {E1, E2, E3};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(11.43,0) -- (14.17,0) node[above,pos=0.5] {E1, E2};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(14.23,0) -- (16.7,0) node[above,pos=0.5] {E2};

\draw[color=red,decorate,decoration={brace, mirror, raise=1.5cm}]
(0,0) -- (2.77,0) node[below,pos=0.49] {E5};

\draw[color=red,decorate,decoration={brace, mirror, raise=1.5cm}]
(2.83,0) -- (17,0) node[below,pos=0.5] {E4};
\end{tikzpicture}
\end{center}
\end{document}

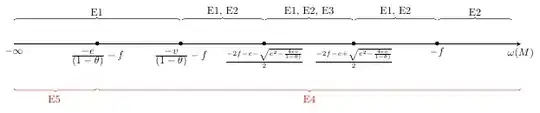

How can I move the text E4 and E5 for it to be closer to the red brace?

Thanks in advance, and sorry if the layout is not the right one.

Answer 1

The below key takes an optional distance argument. Setting below=1.6cm works quite well in this case.

Note that you don't need to load the xcolors package explicitly (this is done by tikz) or the decorations library (it's loaded by the specific decorations libraries), and you have a lot of packages in your code that aren't needed for this example.

\documentclass[a4paper,oneside,12pt]{article}
\usepackage{tikz}
\usepackage{relsize}
\usetikzlibrary{decorations.pathreplacing}
\pagestyle{headings}

\begin{document}
\begin{center}
\begin{tikzpicture}
\draw[thick,>=stealth,->] (0,0) node[below] {$-\infty$} --  (2.8,0) node[below]
{$\frac{\mathlarger{-e}}{\mathlarger{(1-\theta)}}-f$} node {$\bullet$} -- (5.6,0) node[below] {$\frac{\mathlarger{-v}}{\mathlarger{(1-\theta)}}-f$} node {$\bullet$} -- (8.4,0) node[below] {$\frac{-2f-e-\sqrt{e^2-\frac{4ev}{1-\theta)}}}{2}$} node {$\bullet$} -- (11.4,0) node[below] {$\frac{-2f-e+\sqrt{e^2-\frac{4ev}{1-\theta)}}}{2}$} node {$\bullet$} -- (14.2,0) node[below] {$-f$} node{$\bullet$}-- (17,0) node[below] {$\omega(M)$} ;

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(0,0) -- (5.57,0) node[above=0.8cm,pos=0.5] {E1};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(5.63,0) -- (8.37,0) node[above=0.8cm,pos=0.5] {E1, E2};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(8.43,0) -- (11.37,0) node[above=0.8cm,pos=0.5] {E1, E2, E3};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(11.43,0) -- (14.17,0) node[above=0.8cm,pos=0.5] {E1, E2};

\draw[color=black,decorate,decoration={brace, raise=0.8cm}]
(14.23,0) -- (16.7,0) node[above=0.8cm,pos=0.5] {E2};

\draw[color=red,decorate,decoration={brace, mirror, raise=1.5cm}]
(0,0) -- (2.77,0) node[below=1.6cm,pos=0.49] {E5};

\draw[color=red,decorate,decoration={brace, mirror, raise=1.5cm}]
(2.83,0) -- (17,0) node[below=1.6cm,pos=0.5] {E4};
\end{tikzpicture}
\end{center}
\end{document}

Answer 2

You can add a touch of style! (I took the code of Jake's fine answer)

remark : (a) -- node {x} (b); by default pos=.5 update : a lot of node use belowso I modify every node/.stylebut to adjust other nodes, I created ce/.style={anchor=center}. below is the same option than anchor=south.

\begin{tikzpicture}[bst/.style={color=black,decorate,decoration={brace, raise=0.8cm}},
                    rst/.style={color=red,decorate,decoration={brace,mirror, raise=1.5cm}},
                    eti/.style={above=0.8cm},
                    every node/.style=below,
                    ce/.style={anchor=center}]

\draw[thick,>=stealth,->] (0,0)
  node     {$-\infty$}   -- (2.8,0)  node {$\frac{\mathlarger{-e}}{\mathlarger{(1-\theta)}}-f$}
  node[ce] {$\bullet$}   -- (5.6,0)  node {$\frac{\mathlarger{-v}}{\mathlarger{(1-\theta)}}-f$}
  node[ce] {$\bullet$}   -- (8.4,0)  node {$\frac{-2f-e-\sqrt{e^2-\frac{4ev}{1-\theta)}}}{2}$}
  node[ce] {$\bullet$}   -- (11.4,0) node {$\frac{-2f-e+\sqrt{e^2-\frac{4ev}{1-\theta)}}}{2}$}
  node[ce] {$\bullet$}   -- (14.2,0) node {$-f$}
  node[ce] {$\bullet$}   -- (17,0)   node {$\omega(M)$} ;

\draw[bst] (0,0)     -- node[eti]          {E1}         (5.57 ,0) ;
\draw[bst] (5.63,0)  -- node[eti]          {E1, E2}     (8.37 ,0) ;
\draw[bst] (8.43,0)  -- node[eti]          {E1, E2, E3} (11.37,0) ;
\draw[bst] (11.43,0) -- node[eti]          {E1, E2}     (14.17,0) ;
\draw[bst] (14.23,0) -- node[eti]          {E2}         (16.7 ,0) ;
\draw[rst] (0,0)     -- node[below=1.6cm]  {E5}         (2.77 ,0) ;
\draw[rst] (2.83,0)  -- node[below=1.6cm]  {E4}         (17   ,0) ;
\end{tikzpicture}
