I want the legend of my plot to display a fraction the same way it would be done using \displaystyle. When using \displaystyle, the border of the legend gets cut (see picture below). How can I proceed to nicely format my equation ? I have tried using \addlegendentryextended but it doesn't work.

Here is a MWE :

\documentclass{article}
\usepackage{tikz}
\usepackage{pgfplots}
\pgfplotsset{compat=1.16}
\begin{document}

\begin{tikzpicture}
    \begin{axis}[axis x line=center,
      axis y line=center,
        legend pos = north west,
        xlabel = $x$,
        ylabel = {$f(x)$},
        xmin=-5,
        xmax=5,
        ymin=-2,
        ymax=5,
    ]
    %Below the red parabola is defined
    \addplot [
        samples=100,
        color=blue,
    ]
    {e^x};
    \addlegendentry{$e^x$}

    %Here the blue parabloa is defined
    \addplot [
        domain=-4:5,
        samples=100,
        color=red,
        ]
        {1+x};
    \addlegendentry{$1+x$}

    \addplot [
        domain=-3:5,
        samples=100,
        color=orange,
    ]
    {1+ x + 1/2*x^2};
    \addlegendentry{$\displaystyle 1+ x +\frac{1}{2}x^2$} % <---- goes out of border

    \end{axis}
\end{tikzpicture}
\end{document}

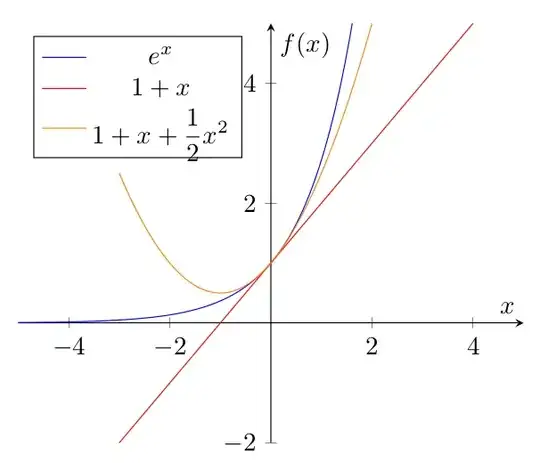

Here is the output :

enter image description here

Sileo
  • 307
  • 1
    Just a correction: I think you have tried \addlegendentryexpanded not \addlegendentryextended, am I right? – Leone Mar 17 '21 at 22:26

1 Answers1

1

Update: I did some further research and found that this problem has already been solved here.


I've just faced the same problem and solved it using raisebox:

\raisebox{<vertical shift>}{<content>}

The drawback of doing this is the necessity of manually tuning the <vertical shift>

So, for your problem:

\documentclass{article}
\usepackage{tikz}
\usepackage{pgfplots}
\pgfplotsset{compat=1.16}
\begin{document}

\begin{tikzpicture} \begin{axis}[axis x line=center, axis y line=center, legend pos = north west, xlabel = $x$, ylabel = {$f(x)$}, xmin=-5, xmax=5, ymin=-2, ymax=5, ] %Below the red parabola is defined \addplot [ samples=100, color=blue, ] {e^x}; \addlegendentry{$e^x$}

%Here the blue parabloa is defined
\addplot [
    domain=-4:5,
    samples=100,
    color=red,
    ]
    {1+x};
\addlegendentry{$1+x$}

\addplot [
    domain=-3:5,
    samples=100,
    color=orange,
]
{1+ x + 1/2*x^2};
\addlegendentry{\raisebox{7pt}{$\displaystyle 1+ x +\frac{1}{2}x^2$}} % &lt;---- goes out of border

\end{axis}

\end{tikzpicture} \end{document}

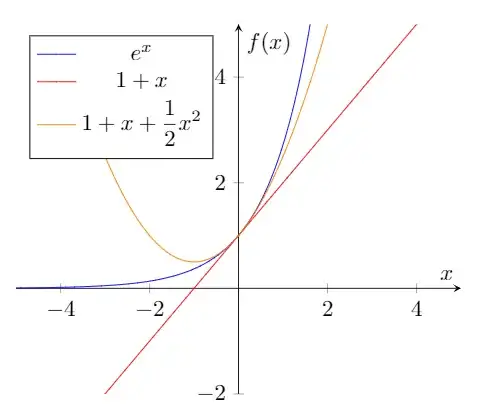

result

Leone
  • 576
