How to add right answer key at the end of \newpage, created in article with task environment

Question

I'm creating a math test, this is the file I'm using. I like this file, basically I coped this from different latex files, at the beginning, I used the table to input the right keys, this way is too slow and I made a lot of mistakes, I saw some people can fix this use add \CC in front of the right answer or use \correctchoice (in exam), I don't know how to add maybe \renewenvironment.

\documentclass[12pt]{article}
\usepackage{answers}
\usepackage[utf8]{inputenc}
\usepackage[T2A]{fontenc}
\usepackage{xpatch}
\usepackage{graphicx}
\usepackage{amssymb}
\usepackage{multicol}
\newcommand{\ds}{\displaystyle}
\usepackage{tasks}
\setlength{\columnsep}{0.1cm}
\setlength{\columnseprule}{0.2pt}
\usepackage{geometry}
 \geometry{
 a4paper,
 total={170mm,257mm},
 left=5mm,
 right=5mm,
 top=15mm,
 }
\usepackage{tikz}
\usepackage{amsmath}
\usepackage{amsmath,amssymb}
\usepackage{enumitem}
\usepackage{varwidth}
\usetikzlibrary{calc}
\newcommand{\mybox}[4][\textwidth-\pgfkeysvalueof{/pgf/inner xsep}-2mm]{%
\begin{figure}[!h]
\centering
\begin{tikzpicture}
\node[line width=.5mm, rounded corners, draw=#2, inner ysep=10pt, text width=#1, outer sep=0] (one) {\vspace{15pt}\\begin{varwidth}{\textwidth}#4\end{varwidth}};
\node[text=white,anchor=north east,align=center, minimum height=20pt] (two) at (one.north east) {#3 \hspace{.5mm}};
\path[fill=#2]
    (one.north west|-two.west) --
    ($(two.west)+(-1.5cm,0)$)
    to[out=0,in=180] (two.south west) --
    (two.south east) [rounded corners] --
    (one.north east) --
    (one.north west) [sharp corners] -- cycle;
\node[text=white,anchor=north east,align=center, minimum height=20pt, text height=2ex] (three) at (one.north east) {#3 \hspace*{.5mm}};
\end{tikzpicture}
\end{figure}
}
\begin{document}
\begin{center}
\mybox{gray!70!black}{\Large{Test 1}}{
\hspace*{7.5cm}
Angles in parallel lines
}
\end{center}
\begin{multicols}{2}
\begin{enumerate}
%%%%%%%%%%%%%Q1%%%%%%%%%%%%%
\item If the ratio of two supplementary angles is $\dfrac{4}{11}$, what is the measure of small angle?
\begin{tasks}counter-format = {(tsk[A])},label-offset = {0.8em},item-indent={-0.1cm},label-format = {\bfseries}
\task $36^\circ$
\task $44^\circ$
\task $48^\circ$
\task $52^\circ$
\task $60^\circ$
\end{tasks}\vspace{1cm}
%C
%%%%%%%%%%%%%Q2%%%%%%%%%%%%%
\item
\begin{tasks}counter-format = {(tsk[A])},label-offset = {0.8em},item-indent={-0.1cm},label-format = {\bfseries}
\task
\task
\task
\task
\end{tasks}
%%%%%%%%%%%%%Q3%%%%%%%%%%%%%
\item
\begin{tasks}counter-format = {(tsk[A])},label-offset = {0.8em},item-indent={-0.1cm},label-format = {\bfseries}
\task
\task
\task
\task
\end{tasks}
\end{enumerate}
\end{multicols*}
\newpage
\end{document}

What style do you want to apply for the item of correct choice? — muzimuzhi Z, Jun 19 '20 at 21:19

score 1 · Answer 1 · answered Jan 03 '21 at 20:50

I suggest to

use the tcolorbox solution by @Ignasi from the answer here https://tex.stackexchange.com/a/340938/ instead of your implementation of \mybox (which at least needs to get rid of the figure environment;
use my answer with tasks and xsim here https://tex.stackexchange.com/a/577369/ to implement a choices environment and use the exercise environment
use the parskip package

Then we can have a clean input in the document...

\begin{document}
\begin{examtitle}{Test 1}
  Angles in parallel lines
\end{examtitle}
\begin{multicols*}{2}
\begin{exercise}
  If the ratio of two supplementary angles is $\frac{4}{11}$, what is the
  measure of the small angle?
  \begin{choices}(5)
    \choice \ang{36}
    \choice \ang{44}
    \choice \answer{\ang{48}}
    \choice \ang{52}
    \choice \ang{60}
  \end{choices}
\end{exercise}
\begin{exercise}
  .
  .
  .
\end{document}

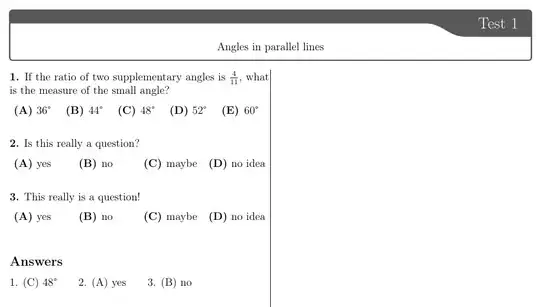

... and still maintain your desired output:

Here is the complete code:

\documentclass[12pt]{article}
\usepackage[T1]{fontenc}
\usepackage{parskip}
\usepackage{geometry}
\geometry{
  a4paper,
  total={170mm,257mm},
  left=5mm,
  right=5mm,
  top=15mm,
}
\usepackage{multicol}
\setlength{\columnsep}{0.1cm}
\setlength{\columnseprule}{0.2pt}
\usepackage[most]{tcolorbox}
\makeatletter
\newtcolorbox{examtitle}[2][]{
  halign=flush center,
  colframe=gray!70!black,
  fonttitle=\Large,
  enhanced,
  breakable,
  colback=white,
  attach boxed title to top right={yshift=-2pt}, title={#2},
  boxed title size=standard,
  boxrule=0pt,
  boxed title style={
    sharp corners,
    rounded corners=northeast,
    colback=tcbcolframe,
    boxrule=0pt},
  sharp corners=north,
  overlay unbroken={
    \path[fill=tcbcolback]
      ([xshift=2pt]title.south west)
      to[out=180, in=0] ([xshift=-1.5cm]title.west)--
      (title.west-|frame.west) |-
      ([xshift=2pt]title.south west)--cycle;
    \path[fill=tcbcolframe] (title.south west)
      to[out=180, in=0] ([xshift=-1.5cm]title.west)--
      (title.west-|frame.west)
      [rounded corners=\kvtcb@arc] |-
      (title.north-|frame.north)
      [sharp corners] -| (title.south west);
    \draw[line width=.5mm, rounded corners=\kvtcb@arc,
      tcbcolframe]
      (title.north east) rectangle
      (frame.south west);
  },
  overlay first={
    \path[fill=tcbcolback]
      ([xshift=2pt]title.south west)
      to[out=180, in=0] ([xshift=-1.5cm]title.west)--
     (title.west-|frame.west) |-
      ([xshift=2pt]title.south west)--cycle;
    \path[fill=tcbcolframe] (title.south west)
      to[out=180, in=0] ([xshift=-1.5cm]title.west)--
      (title.west-|frame.west)
      [rounded corners=\kvtcb@arc] |-
      (title.north-|frame.north)
      [sharp corners] -| (title.south west);
    \draw[line width=.5mm, rounded corners=\kvtcb@arc,
      tcbcolframe]
      (frame.south west) |- (title.north) -|
      (frame.south east);
  },
  overlay middle={
    \draw[line width=.5mm, tcbcolframe]
    (frame.north west)--(frame.south west)
    (frame.north east)--(frame.south east);
  },
  overlay last={
    \draw[line width=.5mm, rounded corners=\kvtcb@arc,
      tcbcolframe]
      (frame.north west) |- (frame.south) -|
      (frame.north east);
  },
  #1
}
\makeatother
\usepackage{siunitx}
\usepackage{xsim}
\xsimsetup{
  load-style = layouts ,
  exercise/template = minimal ,
  exercise/the-counter = \arabic{exercise}. ,
  exercise/end-hook = \vspace{\baselineskip}
}
\usepackage{tasks}
\NewTasksEnvironment[
  label = (\Alph*) ,
  label-format = \bfseries ,
  label-width = 21pt
]{choices}[\choice]
\DeclareExerciseProperty{answer}

\newcommand*\answer[1]{%
  \SetExpandedExerciseProperty{answer}{ \thetask\ \unexpanded{#1}}%
 #1%
}
\newcommand*\getanswers{%
  \def\betweenanswers{\def\betweenanswers{\hspace{2em}}}%
  \ForEachUsedExerciseByID{%
    \betweenanswers##3\ExercisePropertyGet{##1}{##2}{answer}%
  }%
}
\usepackage{amsmath}
\usepackage{amsmath,amssymb}
\usepackage{enumitem}
\begin{document}
\begin{examtitle}{Test 1}
  Angles in parallel lines
\end{examtitle}
\begin{multicols}{2}
\begin{exercise}
  If the ratio of two supplementary angles is $\frac{4}{11}$, what is the
  measure of the small angle?
    \begin{choices}(5)
      \choice \ang{36}
      \choice \ang{44}
      \choice \answer{\ang{48}}
      \choice \ang{52}
      \choice \ang{60}
    \end{choices}
  \end{exercise}
  \begin{exercise}
    Is this really a question?
    \begin{choices}(4)
      \choice \answer{yes}
      \choice no
      \choice maybe
      \choice no idea
    \end{choices}
  \end{exercise}
    \begin{exercise}
    This really is a question!
    \begin{choices}(4)
      \choice yes
      \choice \answer{no}
      \choice maybe
      \choice no idea
    \end{choices}
  \end{exercise}
  \subsection{Answers}
  \getanswers
\end{multicols*}
\end{document}
