Draw connecting lines under text

Question

I would like to recreate a structure of the following sort:

I don't care too much about the look of the lines (they don't have to have 90°/rounded angles or those tiny horizontal lines at each end, I simply need to schematize the connection of elements in the text above). The only thing that's important to me is the cross and checkmark in the middle of each line. I have absolutely no idea how to go about this. Do I have to use tikz? Any help is appreciated!

Here is my MEW:

\documentclass{article}
\usepackage{fixltx2e}
\begin{document}
[P [\ldots DP\textsubscript{\textsc{3sg}}\ldots[\ldots DP\textsubscript{\textsc{1sg}}\ldots]]]
\end{document}

Related question using tikzmark package: https://tex.stackexchange.com/q/448913 — muzimuzhi Z, Jul 14 '20 at 13:18
I believe the best method is to use tikzmark : https://ctan.org/pkg/tikzmark . Try to search on this site, and I think you will find that your question has been answered before. — hpekristiansen, Jul 14 '20 at 13:53

score 7 · Answer 1 · answered Jul 14 '20 at 13:50

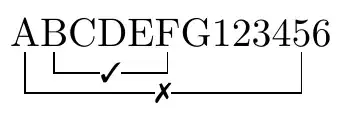

A tikzmark attempt:

\documentclass{article}
\usepackage{amssymb}
\usepackage{pifont} % for checkmark and crossmark symbols
\usepackage{tikz}
\usetikzlibrary{tikzmark}
\tikzset{
  midway mark/.style={pos=0.25, fill=white, inner sep=0pt, font=\scriptsize},
  every subnode/.style={inner sep=1pt}
}
\begin{document}
\begin{tikzpicture}[
  remember picture,
  every subnode/.append style={anchor=south}
]
  \node {\subnode{beg2}{A}\subnode{beg}{B}CDE\subnode{end}{F}G1234\subnode{end2}56};
  \draw (beg) -- ++(0, -10pt) -| node[midway mark] {\ding{51}} (end);
  \draw (beg2) -- ++(0, -15pt) -| node[midway mark] {\ding{55}} (end2);
\end{tikzpicture}
\end{document}

Notice: to run with xelatex, you need to apply the patch in https://tex.stackexchange.com/a/339975.

score 5 · Answer 2 · answered Jul 14 '20 at 15:11

5

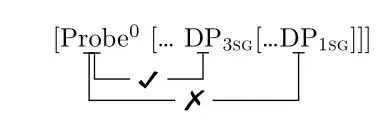

It is also very easy with the \ncbar command from pst-node:

\documentclass{article}
\usepackage{pst-node}
\usepackage{niceframe, dingbat, bbding}
\begin{document}
[\Rnode{P}{Probe}\textsuperscript{0} [… \Rnode{D1}{DP}\textsubscript{\textsc{3sg}}[…\Rnode{D2}{DP}\textsubscript{\textsc{1sg}}]]]
\psset{linewidth=0.5pt, arrows=|-|, angle=-90, nodesep=0.5ex}
\ncbar{P}{D1}\ncput{\footnotesize\checkmark}
\ncbar[arm =18pt, offsetA = -2pt]{P}{D2}\ncput{\footnotesize\XSolidBrush}
\end{document}

answered Jul 14 '20 at 15:11

Bernard

271,350

Works as a charm! – muzimuzhi Z Jul 14 '20 at 16:20
Thank you so much! This looks perfect, but when I tried it it didn't end up looking like yours, it looks like this: https://imgur.com/a/LeVECgg – aktualitaet Jul 15 '20 at 09:12
Which compiler did you use? – Bernard Jul 15 '20 at 09:15
I'm using Overleaf – aktualitaet Jul 15 '20 at 10:05
1

pdflatex cannot make the computations required by postscript. So either you compile in the traditional way: latex -> dvips -> pstopdf or you compile with xelatex. – Bernard Jul 15 '20 at 10:08
