I'm using \documentclass{tufte-book} and trying to get a full-width algorithm environment (specifically, using algorithm2e).

Minimum working example:

\documentclass{tufte-book}

\title{Full-width algorithm2e algorithms}


\usepackage{lipsum} % for dummy text only


\usepackage[lined, ruled]{algorithm2e}


\begin{document}


\lipsum[2]


\begin{algorithm}[H]
    \tcp{Main loop}
    \While{not converged}{
        $a = a + 1$ ;
    }
    \caption{A text-width algorithm}
\end{algorithm}


\lipsum[2]


\marginnote[10pt]{This algorithm should be full-width, but isn't}
\begin{fullwidth}
\begin{algorithm}[H]
    \tcp{Main loop}
    \While{not converged}{
        $a = a + 1$ ;
    }
    \caption{A full-width algorithm}
\end{algorithm}
\end{fullwidth}


\lipsum[2]


\end{document}

Which renders:

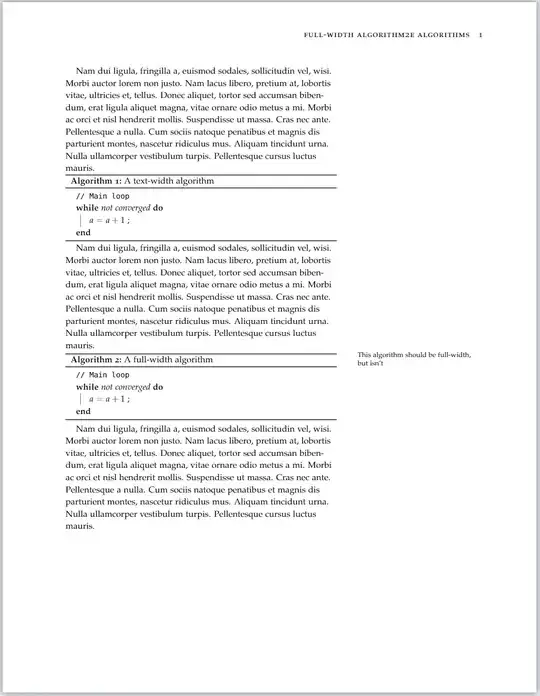

Screenshot of rendered output from minimum working example

In the algorithm2e.sty source-code, I found the dimension algowidth defined about half way through the document.

%[snip]
\newdimen\algowidth%
%[snip]

So I've tried adjusting this length using \setlength{\algowidth}{XXX} in my example, but it doesn't seem to have any effect.

  • How can I achieve full-width algorithm2e algorithm blocks with tufte-latex?
  • Bonus marks if algorithm* can be adjusted to be full-width by default.
  • Extra bonus marks if the algorithm caption can also be moved to hang in the margin, as is the style with tufte-latex full width figures and tables.

Possibly related questions that don't seem to answer this:

aaronsnoswell
  • 217

2 Answers2

3

This might not be the most ideal solution since you loose the floating behaviour of the algorithmby enclosing it in a minipage, but you nevertheless already deactivated the float mechanism by adding [H]...

enter image description here

\documentclass{tufte-book}

\title{Full-width algorithm2e algorithms}


\usepackage{lipsum} % for dummy text only


\usepackage[lined, ruled]{algorithm2e}


\newenvironment{widealgorithm}{\begin{fullwidth}
\begin{minipage}{\linewidth}
\begin{algorithm}[H]}{\end{algorithm}
\end{minipage}
\end{fullwidth}}


\begin{document}


\lipsum[2]


\begin{algorithm}[H]
    \tcp{Main loop}
    \While{not converged}{
        $a = a + 1$ ;
    }
    \caption{A text-width algorithm}
\end{algorithm}


\lipsum[2]


\begin{fullwidth}
\begin{minipage}{\linewidth}
\begin{algorithm}[H]
    \tcp{Main loop}
    \While{not converged}{
        $a = a + 1$ ;
    }
    \caption{A full-width algorithm}
\end{algorithm}
\end{minipage}
\end{fullwidth}


\lipsum[2]


\begin{widealgorithm}
    \tcp{Main loop}
    \While{not converged}{
        $a = a + 1$ ;
    }
    \caption{A full-width algorithm}
\end{widealgorithm}


\end{document}
leandriis
  • 62,593
0

To solve this issue also for floating algorithms (I had one that was also a whole page) you can define a new float and put the minipage into that float. This is a variation of this answer. If I interpret this correctly, this should require the float package, which tufte-latex loads for you.

% Reusing the preamble of leandriis' excellent answer
\documentclass{tufte-book}
\title{Floaty Full-width algorithm2e algorithms}
\usepackage{lipsum} % for dummy text only
\usepackage[lined, ruled]{algorithm2e}

% Define a new float with name myalgo
% Default placement tbp and a file extension mya (for temp files)
% Cf. https://ctan.mc1.root.project-creative.net/macros/latex/contrib/float/float.pdf
\newfloat{myalgo}{tbp}{mya}


% create a new environment called floatyalgorithm with one parameter (our algorithm code)
% Using this creates a new float through the myalgo float we defined above,
% which is filled with a minipage of full page width.
% The width is defined as the sum of a line, the margin and the sapce in between (since the fullwidth environment cannot help us here).
% For the variables names cf. https://www.overleaf.com/learn/latex/page_size_and_margins
% As in leandriis' answer, use [H] for the algorithm to fill the space.
\newenvironment{floatyalgorithm}[1][tbp]%
{\begin{myalgo}[#1]
\begin{minipage}{\linewidth+\marginparsep+\marginparwidth}
\begin{algorithm}[H]}%
{\end{algorithm}
\end{minipage}
\end{myalgo}
}


\begin{document}


\begin{floatyalgorithm}[tbp]
  $m := m'$;
  \caption{\lipsum[2]}
\end{floatyalgorithm}


\end{document}

I have not extensively tested this. For my use case it worked nicely, but there might be some unwanted interactions with full pages and the content of the margin.
