Horizontal line in matrix not well balanced

Question

I'm having troubles in drawing an horizontal line inside a matrix. As from this MWE code, the line isn't well balanced relative to the equal sign (it should be aligned, vertically), and there's a pesky white hole below the middle:

\documentclass[11pt,letterpaper,twoside]{book}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage[total={6in,10in},left=1.5in,top=0.5in,includehead,includefoot]{geometry}
\usepackage{microtype}
\usepackage{amsmath}
\usepackage{amsfonts}
\usepackage{mathtools}
\usepackage{tensor}
\begin{document}
%\setlength{\abovedisplayskip}{1em}
\setlength{\abovedisplayshortskip}{0pt}
\setlength{\belowdisplayskip}{\abovedisplayskip}
\setlength{\belowdisplayshortskip}{\belowdisplayskip}
\setlength{\jot}{3ex}
\begin{equation}
    R = \left[ \begin{array}{ccc|ccc}
    \tensor{R}{_{0101}} &amp; \tensor{R}{_{0102}} &amp; \tensor{R}{_{0103}} &amp; \tensor{R}{_{0123}} &amp; \tensor{R}{_{0131}} &amp; \tensor{R}{_{0112}} \\[2ex]
    \tensor{R}{_{0102}} &amp; \tensor{R}{_{0202}} &amp; \tensor{R}{_{0203}} &amp; \tensor{R}{_{0223}} &amp; \tensor{R}{_{0231}} &amp; \tensor{R}{_{0212}} \\[2ex]
    \tensor{R}{_{0103}} &amp; \tensor{R}{_{0203}} &amp; \tensor{R}{_{0303}} &amp; \tensor{R}{_{0323}} &amp; \tensor{R}{_{0331}} &amp; \tensor{R}{_{0312}}
    \\[\dimexpr 1ex+2\arrayrulewidth] \hline \\[\dimexpr 1ex-2\arrayrulewidth-\jot]
    \tensor{R}{_{0123}} &amp; \tensor{R}{_{0223}} &amp; \tensor{R}{_{0323}} &amp; \tensor{R}{_{2323}} &amp; \tensor{R}{_{2331}} &amp; \tensor{R}{_{2312}} \\[2ex]
    \tensor{R}{_{0131}} &amp; \tensor{R}{_{0231}} &amp; \tensor{R}{_{0331}} &amp; \tensor{R}{_{2331}} &amp; \tensor{R}{_{3131}} &amp; \tensor{R}{_{3112}} \\[2ex]
    \tensor{R}{_{0112}} &amp; \tensor{R}{_{0212}} &amp; \tensor{R}{_{0312}} &amp; \tensor{R}{_{2312}} &amp; \tensor{R}{_{3112}} &amp; \tensor{R}{_{1212}}
\end{array} \right]\!.
\end{equation}


\end{document}

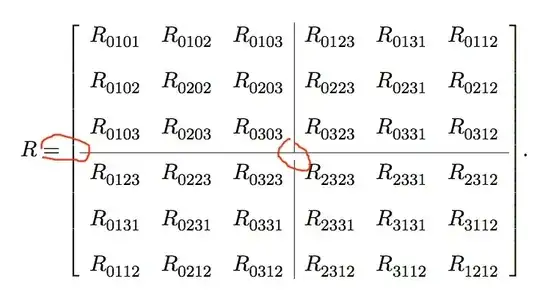

Preview:

So how can I modify that code so the horizontal line is well balanced vertically in the matrix, without that whiloe hole under it?

https://tex.stackexchange.com/questions/240859/dividing-line-in-a-matrix — js bibra, Jul 22 '20 at 16:37
@jsbibra, none of the solutions from your link give a proper result. There are still white gaps, and the line isn't well balanced. — Cham, Jul 22 '20 at 16:41
My line is drawn from an answer found there: https://tex.stackexchange.com/questions/540022/how-to-adjust-vertical-spacing-in-a-matrix-with-an-horizontal-line?noredirect=1#comment1364288_540022 — Cham, Jul 22 '20 at 16:46
Why do you use superfluous tensor package for the subscripts? — Sebastiano, Aug 10 '20 at 11:54

js bibra · Answer 1 · 2020-07-22T16:52:35.600

from --https://tex.stackexchange.com/questions/240859/dividing-line-in-a-matrix

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage[total={6in,10in},left=1.5in,top=0.5in,includehead,includefoot]{geometry}
\usepackage{microtype}
\usepackage{amsmath}
\usepackage{amsfonts}
\usepackage{mathtools}
\usepackage{booktabs}
\usepackage{tensor}
\begin{document}
    \[
    M =
    \left( \begin{array}{c|c}
    A & B \\
    \midrule
    C & D \\
    \end{array}\right)
    \]
    \[
     R = \left[ \begin{array}{ccc|ccc}
        \tensor{R}{_{0101}} & \tensor{R}{_{0102}} & \tensor{R}{_{0103}} & \tensor{R}{_{0123}} & \tensor{R}{_{0131}} & \tensor{R}{_{0112}} \\[2ex]
        \tensor{R}{_{0102}} & \tensor{R}{_{0202}} & \tensor{R}{_{0203}} & \tensor{R}{_{0223}} & \tensor{R}{_{0231}} & \tensor{R}{_{0212}} \\[2ex]
        \tensor{R}{_{0103}} & \tensor{R}{_{0203}} & \tensor{R}{_{0303}} & \tensor{R}{_{0323}} & \tensor{R}{_{0331}} & \tensor{R}{_{0312}}
        \\ \midrule
        \tensor{R}{_{0123}} & \tensor{R}{_{0223}} & \tensor{R}{_{0323}} & \tensor{R}{_{2323}} & \tensor{R}{_{2331}} & \tensor{R}{_{2312}} \\[2ex]
        \tensor{R}{_{0131}} & \tensor{R}{_{0231}} & \tensor{R}{_{0331}} & \tensor{R}{_{2331}} & \tensor{R}{_{3131}} & \tensor{R}{_{3112}} \\[2ex]
        \tensor{R}{_{0112}} & \tensor{R}{_{0212}} & \tensor{R}{_{0312}} & \tensor{R}{_{2312}} & \tensor{R}{_{3112}} & \tensor{R}{_{1212}}
    \end{array} \right]\!.
    \]
\end{document}

edit -- with intersection no hole aligned to = sign

 R = \left[ \begin{array}{@{\,}ccc|ccc@{\,}}
        \tensor{R}{_{0101}} & \tensor{R}{_{0102}} & \tensor{R}{_{0103}} & \tensor{R}{_{0123}} & \tensor{R}{_{0131}} & \tensor{R}{_{0112}} \\
        \tensor{R}{_{0102}} & \tensor{R}{_{0202}} & \tensor{R}{_{0203}} & \tensor{R}{_{0223}} & \tensor{R}{_{0231}} & \tensor{R}{_{0212}} \\
        \tensor{R}{_{0103}} & \tensor{R}{_{0203}} & \tensor{R}{_{0303}} & \tensor{R}{_{0323}} & \tensor{R}{_{0331}} & \tensor{R}{_{0312}}
        \\ \hline
        \tensor{R}{_{0123}} & \tensor{R}{_{0223}} & \tensor{R}{_{0323}} & \tensor{R}{_{2323}} & \tensor{R}{_{2331}} & \tensor{R}{_{2312}} \\
        \tensor{R}{_{0131}} & \tensor{R}{_{0231}} & \tensor{R}{_{0331}} & \tensor{R}{_{2331}} & \tensor{R}{_{3131}} & \tensor{R}{_{3112}} \\
        \tensor{R}{_{0112}} & \tensor{R}{_{0212}} & \tensor{R}{_{0312}} & \tensor{R}{_{2312}} & \tensor{R}{_{3112}} & \tensor{R}{_{1212}}
    \end{array} \right]\!.

That line still have gaps in the middle. And the elements don't have a proper spacing around the line, compared with other elements in the matrix. — Cham, Jul 22 '20 at 16:48
See the solution from that answer (which strangely doesn't work well here): https://tex.stackexchange.com/questions/540022/how-to-adjust-vertical-spacing-in-a-matrix-with-an-horizontal-line?noredirect=1#comment1364288_540022 — Cham, Jul 22 '20 at 16:49
Addendum: If you need a bit of extra vertical separation between the rows, you could load the array package and issue the instruction \setlength\extrarowheight{1pt} in the preamble. This may be particularly useful if the submatrices have diacritics (such as \bar{...}) that would otherwise come too close to the \hline — js bibra, Jul 22 '20 at 16:53
https://tex.stackexchange.com/questions/246844/matrix-hline-is-cut-by-cmidrule — js bibra, Jul 22 '20 at 16:54

score 1 · Answer 2 · answered Aug 10 '20 at 10:15

With the latest version of nicematrix (v 5.1 of 2020-07-31), the vertical rules specified by | in the preamble of {NiceArray} (similar to {array} of array) are never broken (because they are drawn in fact by PGF/Tikz).

So, you can write directly without broken vertical rule:

\documentclass[11pt,letterpaper,twoside]{book}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage[total={6in,10in},left=1.5in,top=0.5in,includehead,includefoot]{geometry}
\usepackage{amsfonts}
\usepackage{mathtools}
\usepackage{tensor}
\usepackage{nicematrix}
\begin{document}
\setlength{\abovedisplayshortskip}{0pt}
\setlength{\belowdisplayskip}{\abovedisplayskip}
\setlength{\belowdisplayshortskip}{\belowdisplayskip}
\setlength{\jot}{3ex}
\begin{equation}
    R = \left[ \begin{NiceArray}{ccc|ccc}
    \tensor{R}{{0101}} & \tensor{R}{{0102}} & \tensor{R}{{0103}} & \tensor{R}{{0123}} & \tensor{R}{{0131}} & \tensor{R}{{0112}} \[2ex]
    \tensor{R}{{0102}} & \tensor{R}{{0202}} & \tensor{R}{{0203}} & \tensor{R}{{0223}} & \tensor{R}{{0231}} & \tensor{R}{{0212}} \[2ex]
    \tensor{R}{{0103}} & \tensor{R}{{0203}} & \tensor{R}{{0303}} & \tensor{R}{{0323}} & \tensor{R}{{0331}} & \tensor{R}{{0312}}
    \[\dimexpr 1ex+2\arrayrulewidth] \hline \[\dimexpr 1ex-2\arrayrulewidth-\jot]
    \tensor{R}{{0123}} & \tensor{R}{{0223}} & \tensor{R}{{0323}} & \tensor{R}{{2323}} & \tensor{R}{{2331}} & \tensor{R}{{2312}} \[2ex]
    \tensor{R}{{0131}} & \tensor{R}{{0231}} & \tensor{R}{{0331}} & \tensor{R}{{2331}} & \tensor{R}{{3131}} & \tensor{R}{{3112}} \[2ex]
    \tensor{R}{{0112}} & \tensor{R}{{0212}} & \tensor{R}{{0312}} & \tensor{R}{{2312}} & \tensor{R}{{3112}} & \tensor{R}{{1212}}
\end{NiceArray} \right]!.
\end{equation}
\end{document}
