Tabbing: Colored background

Question

\documentclass{article}

\newenvironment{mytabbing}{%
\begin{minipage}[t]{3in}
\begin{tabbing}
\hspace*{2cm}\= \hspace*{2cm}\= \hspace*{2cm}\= \hspace*{2cm} \kill
TAB-1 \> TAB-2 \> TAB-3 \> TAB-4\\
}%
{\end{tabbing}\end{minipage}}%

\begin{document}
\begin{mytabbing}
Test1 \> Test2 \> Test3 \>Test4
\end{mytabbing}

\end{document}

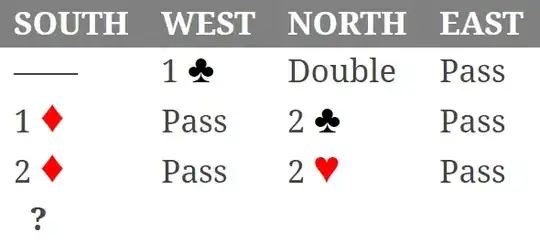

If I want colored background for the column names (TAB-1 ...), do I have to work in some tabular (tabularx, etc.) environment, and I have no other option? Something like:

Please try with better option with the combination of tabularx and colortbl packages, instead of tabbing — MadyYuvi, Sep 16 '20 at 08:21
if you could upload a sketch of the desired output it would be helpful — js bibra, Sep 17 '20 at 00:43

score 1 · Answer 1 · answered Nov 12 '21 at 14:25

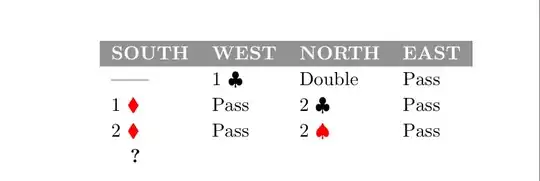

Here is a solution with {NiceTabular} of nicematrix. You won't see any thin white line in the gray panel of the first row, whatever PDF you use and whatever level of zoom you use.

\documentclass{article}
\usepackage[margin=1in]{geometry}
\usepackage{amssymb}
\usepackage{xcolor}
\newcommand{\cred}[1]{\color{red}#1}
\newcommand{\wt}[1]{\color{white}\textbf{#1}}
\usepackage{nicematrix}
\begin{document}
\begin{center}
\begin{NiceTabular}{llll}[cell-space-top-limit=3pt]
\RowStyle[bold,rowcolor=gray,color=white]{}
SOUTH   & WEST  & NORTH     & EAST  \

    &amp; 1 $\clubsuit$
            &amp; Double    &amp; Pass  \\

1 $\cred{\blacklozenge}$
        & Pass  & 2 $\clubsuit$
                            & Pass  \
2 $\cred{\blacklozenge}$
        & Pass & 2 $\cred{\spadesuit}$
                            & Pass  \
\quad \textbf{?}
        &       &           &       \
\end{NiceTabular}
\end{center}
\end{document}

You need several compilations (because nicematrix uses PGF/Tikz nodes under the hood).

Abuzar Ghafari · Answer 2 · 2020-09-17T08:39:58.820

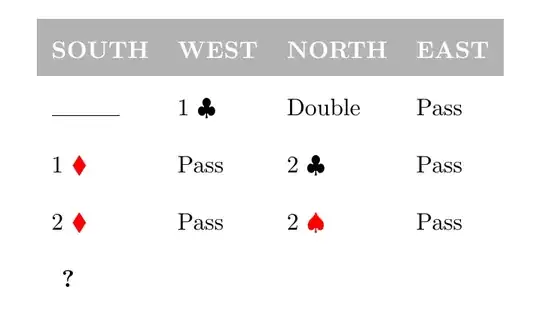

Here is the solution with the tabular environment.

\documentclass{article}
\usepackage[margin=1in]{geometry}
\usepackage{colortbl}
\usepackage{xcolor}
\usepackage{amssymb}
\usepackage{tikz}
\renewcommand{\arraystretch}{2}
\newcommand{\cred}[1]{\color{red}#1}
\newcommand{\wt}[1]{\color{white}\textbf{#1}}
\begin{document}
\begin{center}
    \begin{tabular}{llll}
        \rowcolor{gray!60} \wt{SOUTH} &amp; \wt{WEST} &amp; \wt{NORTH} &amp; \wt{EAST} \\
        \tikz \draw (0,0) -- (1,0); &amp; 1 $\clubsuit$   &amp; Double &amp; Pass\\
        1 $\cred{\blacklozenge}$ &amp; Pass &amp; 2 $\clubsuit$ &amp; Pass \\
        2 $\cred{\blacklozenge}$ &amp; Pass &amp; 2 $\cred{\spadesuit}$&amp; Pass \\
        \hspace{0.15cm}\textbf{?}  &amp; &amp; &amp; \\
    \end{tabular}
\end{center}


\end{document}

The ? is now centered.

the ? needs to be centered – js bibra Sep 17 '20 at 08:30 — js bibra, Sep 17 '20 at 08:30

score 0 · Answer 3 · answered Oct 13 '21 at 07:04

Solution with use of the tabularray table package:

\documentclass{article}
\usepackage[margin=1in]{geometry}
\usepackage{amssymb}
\usepackage{xcolor}
\newcommand{\cred}[1]{\color{red}#1}
\newcommand{\wt}[1]{\color{white}\textbf{#1}}
\usepackage{tabularray}
\begin{document}
\begin{center}
    \begin{tblr}{row{1}={font=\bfseries, bg=gray, fg=white, abovesep+=2pt},
                 colspec=llll,
                 }
SOUTH   & WEST  & NORTH     & EAST  \

    &amp; 1 $\clubsuit$
            &amp; Double    &amp; Pass  \\

1 $\cred{\blacklozenge}$
        & Pass  & 2 $\clubsuit$
                            & Pass  \
2 $\cred{\blacklozenge}$
        & Pass & 2 $\cred{\spadesuit}$
                            & Pass  \
\SetCell[c=1]{l,font=\bfseries} ;?
        &       &           &       \
    \end{tblr}
\end{center}
\end{document}
