0

I followed the code from Numbering side-by-side equations or inline equations, got:

enter image description here

However, I desire for:

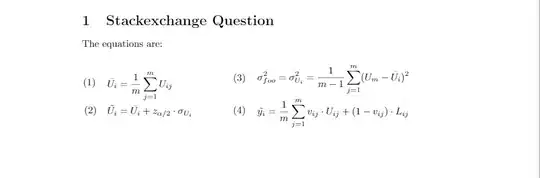

enter image description here Meaning, the tabular is aligned to the left (or center), and numbering is before the equation, without a lot of space between the number and the equation.

How can I achieve this result? My code:

\documentclass{article}

\usepackage{amsmath}

\begin{document} \section{Stackexchange Question} The equations are:

\begin{tabular}{p{7cm}p{7cm}} {\begin{align} &\bar{U_i} = \frac{1}{m}\sum_{j=1}^m U_{ij} \ &\tilde{{U_{i}}} = \bar{{U_{i}}} + z_{\alpha \slash 2} \cdot \sigma_{U_{i}} \end{align}} & {\begin{align} &\sigma_{foo}^2 = \sigma_{U_{i}}^2 = \frac{1}{m-1}\sum_{j=1}^m(U_{m}-\bar{U_{i}})^2 \ &\tilde{y_i} = \frac{1}{m}\sum_{j=1}^m v_{ij} \cdot U_{ij} + (1-v_{ij})\cdot L_{ij} \end{align}} \end{tabular}

\end{document}

Any help would be appreciated. Thanks!

  • My humble opinion: why do you use a table? With the enumitem package you can create a columned numbered equations where there are no spaces. – Sebastiano Sep 26 '20 at 15:40
  • 1
    Thanks for your answer. I'm actually not familiar with enumitem, and found the above as quick solution – Eli Simhayev Sep 26 '20 at 15:45
  • Do you want a right-hand numbering for all equations in your document, or just for this group? – Bernard Sep 26 '20 at 15:53
  • @EliSimhayev Excuse me, my was only a suggestion. All the best. – Sebastiano Sep 26 '20 at 15:54
  • just for this group @Bernard All my other equations are in vertical order – Eli Simhayev Sep 26 '20 at 16:03
  • And the numbering should be columnwidse (I mean the numbers1 & 2 should be in the first column, not in the first row)? – Bernard Sep 26 '20 at 16:07
  • @Bernard Hi, I saw before also the tasks package. I think that can be another alternative: https://ctan.mirror.garr.it/mirrors/ctan/macros/latex/contrib/tasks/tasks-manual.pdf – Sebastiano Sep 26 '20 at 16:19
  • 1
    @Sebastiano: That's precisely what I was thinking of – the shortlst is still another possibility, but it's not in the official distributions for copyright reasons, and still another, Olga Lapko's tablists. – Bernard Sep 26 '20 at 16:49
  • @Bernard Ah, I have understood but I did not know this situation. Anyway, I appreciated your work :-) – Sebastiano Sep 26 '20 at 19:27

3 Answers3

3

I have used tasks package using manual enumeration to have the same enumerate list of your image. Now it is perfect. :-)

\documentclass[12pt]{article}
\usepackage[margin=2.5cm]{geometry}
\usepackage{tasks,amsmath,amssymb}
\begin{document}
\section{Stackexchange Question}
The equations are:
\begin{tasks}[counter-format=(tsk[1]),label-width=4.5em, column-sep =4.4pt](2)
\task $\displaystyle \tilde{{U_{i}}} = \bar{{U_{i}}} + z_{\alpha \slash 2} \cdot \sigma_{U_{i}}$
\task[(3)] $\displaystyle \sigma_{\text{foo}}^2 = \sigma_{U_{i}}^2 = \frac{1}{m-1}\sum_{j=1}^m(U_{m}-\bar{U_{i}})^2$
\task[(2)] $\displaystyle \bar{U_i} = \frac{1}{m}\sum_{j=1}^m U_{ij}$
\task[(4)] $\displaystyle \tilde{y_i} = \frac{1}{m}\sum_{j=1}^m v_{ij} \cdot U_{ij} + (1-v_{ij})\cdot L_{ij}$
\end{tasks}

\end{document}

enter image description here

Sebastiano
  • 54,118
2

A code with tabularx and align, using the \leqnomode command, defined in Werner's answer to this question. It uses the equation counter. The vertical spacing between the first & second line of align in the left column had to be found by trial and error:

\documentclass{article}
\usepackage{geometry}
\usepackage{amsmath}
\makeatletter
\newcommand{\leqnomode}{\tagsleft@true}%
\makeatother
\usepackage{tabularx}

\usepackage{tasks}

\begin{document}

\section{Stackexchange Question} The equations are:

{\noindent\setlength{\tabcolsep}{0pt}\begin{tabularx}{\textwidth}{*2{>{\leqnomode\arraybackslash}X}} {\begin{align} & \bar{U_i} = \frac{1}{m}\sum_{j=1}^m U_{ij} \[1.6ex] & \tilde{{U_{i}}} = \bar{{U_{i}}} + z_{\alpha \slash 2} \cdot \sigma_{U_{i}} \end{align}} & {\begin{align} & \sigma_{foo}^2 = \sigma_{U_{i}}^2 = \frac{1}{m-1}\sum_{j=1}^m(U_{m}-\bar{U_{i}})^2 \ & \tilde{y_i} = \frac{1}{m}\sum_{j=1}^m v_{ij} \cdot U_{ij} + (1-v_{ij}) \cdot L_{ij} \end{align}} \end{tabularx}}

\end{document}

enter image description here

Bernard
  • 271,350
1

enter image description here

\documentclass{article}
\usepackage{multicol}
\setlength{\columnsep}{-10mm}
%\setlength{\columnseprule}{1pt}
\usepackage{enumitem}
\usepackage{amsmath}

\begin{document} \section{Stackexchange Question} The equations are: \begin{multicols}{2} \begin{enumerate}[label={(\arabic*)}] \item $\bar{U_i} = \frac{1}{m}\sum_{j=1}^m U_{ij}$ \item $\tilde{{U_{i}}} = \bar{{U_{i}}} + z_{\alpha \slash 2} \cdot \sigma_{U_{i}} $ \columnbreak \item $\sigma_{foo}^2 = \sigma_{U_{i}}^2 = \frac{1}{m-1}\sum_{j=1}^m(U_{m}- \bar{U_{i}})^2$ \item $\tilde{y_i} = \frac{1}{m}\sum_{j=1}^m v_{ij} \cdot U_{ij} + (1- v_{ij})\cdot L_{ij}$

\end{enumerate} \end{multicols}

\end{document}

js bibra
  • 21,280
