Why cannot cite .tex @phdthesis citation?

Question

I'm trying to cite a phdthesis report :

    \documentclass[notitlepage]{article}
\usepackage{amsmath, amssymb}
\usepackage{pdflscape}
\usepackage[left=0.3in,right=0.3in,top=0.3in,bottom=0.5in]{geometry}
\usepackage{colortbl}
\usepackage[margin=1cm]{caption}
\usepackage{multirow}
\usepackage{booktabs}
\usepackage{float}
\usepackage{graphicx}
\graphicspath{{figures/}}
\usepackage{longtable}
%\usepackage{algorithm}
\usepackage{algorithmic}
\usepackage{pdfpages}
\usepackage[ruled,vlined]{algorithm2e}
\usepackage{ifoddpage}
\usepackage{blindtext}
\usepackage{authblk}
\begin{filecontents}[overwrite]{references3.bib}
@phdthesis{hajjar2014cartes,
    title={Cartes auto-organisatrices pour la classification de donn{'e}es symboliques mixtes, de donn{'e}es de type intervalle et de donn{'e}es discr{'e}tis{'e}es.},
    author={Hajjar, Chantal},
    year={2014},
    school={Sup{'e}lec}
}
% ...........%
 \end{filecontents}
\renewenvironment{abstract}
{\par\noindent\textbf{\abstractname.}\ \ignorespaces}
{\par\medskip}
\begin{document}
\title{  title   }
\author{author1 ,\
    ----------@gmail.com

}
\affil[1]{Department of Computer Science,---------------------------- }
\maketitle
\begin{abstract}
    \small
some text .....................
\end{abstract}
\textbf{Keywords} : global numerical optimization, mono-objective, descent gradient variants, analytic hierarchy process, \ hybrid optimization, random search
\section{Problem formulation}
\cite{hajjar2014cartes}  :
\Floatbarrier
\newpage
\bibliographystyle{ieeetr}
\bibliography{references3.bib}
\end{document}

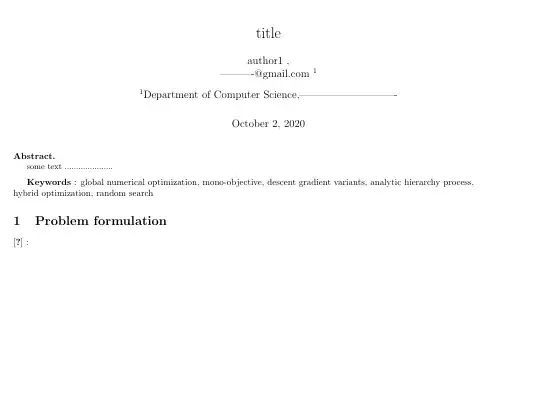

Using the previous script , i got the following output :

Unfortunately , the citation isn't displayed as expected.

I hope my question is clear!

Thank you in advance for your help !

Yes, but @campa is asking how you compile. TeX studio is only a specialised editor, with some facilities to compile. — Bernard, Oct 02 '20 at 11:25
@Bernard , i compile usually with F6 button ( or run symbol ) — Tou Mou, Oct 02 '20 at 11:26
@Bernard , i tried the sequence many times but it doesn't worked ! — Tou Mou, Oct 02 '20 at 11:34

hh93 · Accepted Answer · 2020-10-10T15:26:10.040

1

I am not able to comment, hence I write an answer (although @Bernard already gave one in the comments):

This could help: How to compile bibtex with TeXstudio?

Choose the right settings in the menu shown there. In most cases the right settings are already default (then F6+F8+F6+F6 should work). But you could change the “default compiler” to include bibtex.

edited Oct 10 '20 at 15:26

answered Oct 02 '20 at 11:33

hh93

79

thank you a lot for precious help --> problem solved ! – Tou Mou Oct 02 '20 at 11:58

score 0 · Answer 2 · answered Oct 02 '20 at 11:57

0

Based on the previous comments , the problem is resolved as follow :

Options> Configure TeXstudio

Last , press F6 to generate output :

answered Oct 02 '20 at 11:57

Tou Mou

205
