I am drawing a triangle and its angles but tikz adds a small line to each arc of each angle. This should not happen as can be seen for example here. My code:

\documentclass{article}

\usepackage[utf8]{inputenc}
\usepackage{graphicx}
\usepackage{cancel}
\usepackage{amsmath}
\usepackage{makecell}
\usepackage{tikz}
\usepackage{tkz-euclide}


\begin{tikzpicture}[]
\coordinate (O) at (0,0);
\coordinate (A) at (4,0);
\coordinate (B) at (-1,2);
\draw (O)--(A)--(B)--cycle;


\tkzMarkAnglesize=0.5;
\tkzLabelAnglepos = 0.25{$\gamma$}


\tkzMarkAnglesize=0.8cm
\tkzLabelAnglepos = 0.6{$\alpha$}


\tkzMarkAnglesize=0.7cm
\tkzLabelAnglepos = 0.5{$\beta$}


\end{tikzpicture}
\end{document}

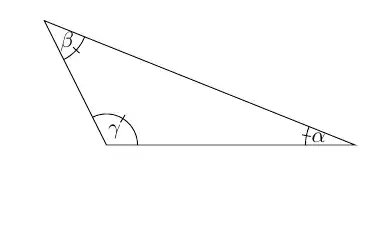

And the result:

enter image description here

How can I draw an arc for an angle without a small line?

Phelype Oleinik
  • 70,814
Matt N.
  • 543
  • 6
  • 13
  • 1
    Thank you for the information! – Matt N. Oct 11 '20 at 07:58
  • You might want to list package versions as well (both on your own system and that online editor that I've never heard of). You can list versions by adding \listfiles before \documentclass, then they are listed in the log – daleif Oct 11 '20 at 08:10
  • Hey Matt, I closed your question as a duplicate under suggestion of other users, because I feel you were asking more or less the same. Let me/us know if the other question helps you with this one. :) – Alenanno Oct 18 '20 at 09:10

1 Answers1

2

With the new version 3.0 of tkz-euclide, by default, the macro \tkzMarkAngle marks the angle with a mark formed by a single small line. To remove it, add the option mark=none.

\tkzMarkAngle[size=0.5,mark=none](A,O,B);

To modify it, you have the choice with these options |, ||,|||, z, s, x, o, oo

screenshot

\documentclass{article}
\usepackage{tkz-euclide}
\begin{document}

\begin{tikzpicture}
\coordinate (O) at (0,0);
\coordinate (A) at (4,0);
\coordinate (B) at (-1,2);
\draw (O)--(A)--(B)--cycle;


\tkzMarkAnglesize=0.5,mark=none;
\tkzLabelAnglepos = 0.25{$\gamma$}


\tkzMarkAnglesize=0.8cm,mark=none
\tkzLabelAnglepos = 0.6{$\alpha$}


\tkzMarkAnglesize=0.7cm,mark=none
\tkzLabelAnglepos = 0.5{$\beta$}


\end{tikzpicture}
\end{document}

Example of other mark : |, ||,|||, z, s, x, o, oo

screenshot

\documentclass{article}
\usepackage{tkz-euclide}
\begin{document}

\begin{tikzpicture}
\coordinate (O) at (0,0);
\coordinate (A) at (4,0);
\coordinate (B) at (-1,2);
\draw (O)--(A)--(B)--cycle;


\tkzMarkAnglesize=0.5,mark=o;
\tkzLabelAnglepos = 0.25{$\gamma$}


\tkzMarkAnglesize=1cm,mark=x
\tkzLabelAnglepos = 0.6{$\alpha$}


\tkzMarkAnglesize=0.8cm,mark=||
\tkzLabelAnglepos = 0.5{$\beta$}


\end{tikzpicture}
\end{document}
AndréC
  • 24,137
