Children of different parents - cross married

Question

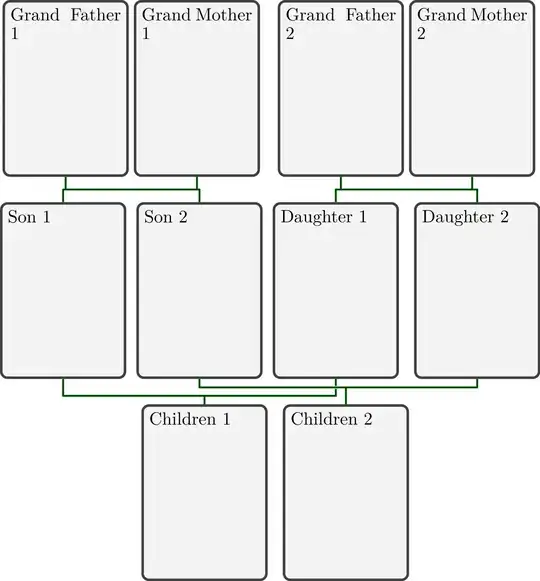

Hi I would like to draw a situation, when two sons of are getting married two daughters like on the diagram. I have code like this:

parent{
    g{Children1}
    parent {
        g{Son1}
        c{Son2}
        p{GrandFather1}
        p{GrandMother1}
    }
    parent{
        g{Daugher1}
        c{Daugher2}
        p{GrandFather2}
        p{GrandMother2}
    }
}

How to add a second marriage and children? Is it possible with Latex genealogyTree?

Thanks for help!

Answer 1

You can represent a complex tree by adjusting the relative positions of several trees (for example with adjust position) and linking the families (for example with add parent).

Once the relations are written, you can adjust the edges positions (for example with edges down byor pivot shift).

\documentclass{standalone}
\usepackage{genealogytree}
\begin{document}
    \begin{tikzpicture}
        \genealogytree{
            child{
                g{Grand Father 1}
                p[id=grandmother2]{Grand Mother 1}
                c[id=son1]{Son 1}
                c[id=son2]{Son 2}
            }
        }
        \genealogytree[
            adjust position=grandfather2 right of grandmother2 distance 1.6cm,
            add parent=son1 to fam_daughter1,
            add parent=son2 to fam_daughter2
        ]{
            child{
                g[id=grandfather2]{Grand Father 2}
                p{Grand Mother 2}
                child[id=fam_daughter1, edges down by= 1 of 6, pivot shift=-2.6cm]{
                    g{Daughter 1}
                    c{Children 1}
                }
                child[id=fam_daughter2, edges up by= 1 of 6, pivot shift=-2.6cm]{
                    g{Daughter 2}
                    c{Children 2}
                }
            }
        }
    \end{tikzpicture}
\end{document}
