Label all figures in tabular

Question

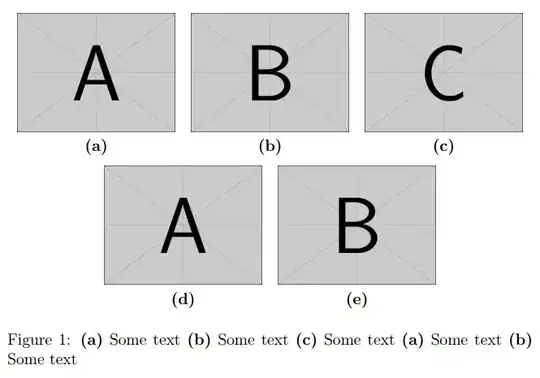

I've found this code here and I need to know if someone knows how can I label all the figures to be able to make a reference to them in the text and to appear for example: "In figure 1A..."

\documentclass[12pt,a4paper]{article}
\usepackage{graphicx}
\usepackage{float}
\begin{document}
\begin{figure} [H]
\centering
\begin{tabular}{cccc}
\includegraphics[width=0.3\textwidth]{example-image-a} &
\includegraphics[width=0.3\textwidth]{example-image-b} &
\includegraphics[width=0.3\textwidth]{example-image-c} \
\textbf{(a)}  & \textbf{(b)} & \textbf{(c)}  \[6pt]
\end{tabular}
\begin{tabular}{cccc}
\includegraphics[width=0.3\textwidth]{example-image-a} &
\includegraphics[width=0.3\textwidth]{example-image-b} \
\textbf{(d)}  & \textbf{(e)}  \[6pt]
\end{tabular}
\caption{ \textbf{(a)} Some text
\textbf{(b)} Some text
\textbf{(c)} Some text
\textbf{(d)} Some text
\textbf{(e)} Some text}
\label{fig:Name}
\end{figure}
\end{document}

Thanks @leandriis and @campa but that's not what I'm looking for, I do not intend to modify that figure, but simply that in the text I can put \ref{fig:1a} for example and it will recognise it as valid — Alejandro Fernández Suárez, Nov 21 '20 at 18:27

score 3 · Accepted Answer · answered Nov 21 '20 at 18:57

If you have control over the pictures and their labels, then you should definitely use the approach described in the answers to the question How does one create, caption, label and refer to a subfigure?.

If the five images and their captions are a single image that you do not want to dissect, you can define a command \extralabel{labelname}{subnumber} in the preamble:

\makeatletter
\newcommand\extralabel[2]{{\edef\@currentlabel{\@currentlabel#2}\label{#1}}}
\makeatother

and later can reference labelname with \ref.

\documentclass{article}
\makeatletter
\newcommand\extralabel[2]{{\edef\@currentlabel{\@currentlabel#2}\label{#1}}}
\makeatother
\usepackage{graphicx}
\begin{document}
\begin{figure}
\centering
\begin{tabular}{cccc}
\includegraphics[width=0.3\textwidth]{example-image-a} &
\includegraphics[width=0.3\textwidth]{example-image-b} &
\includegraphics[width=0.3\textwidth]{example-image-c} \\
\textbf{(a)}  & \textbf{(b)} & \textbf{(c)}  \\[6pt]
\end{tabular}
\begin{tabular}{cccc}
\includegraphics[width=0.3\textwidth]{example-image-a} &
\includegraphics[width=0.3\textwidth]{example-image-b} \\
\textbf{(d)}  & \textbf{(e)}  \\[6pt]
\end{tabular}
\caption{ \textbf{(a)} Some text
\textbf{(b)} Some text
\textbf{(c)} Some text
\textbf{(d)} Some text
\textbf{(e)} Some text}
\label{fig:Name}
\extralabel{fig:Name:a}{(a)}
\extralabel{fig:Name:b}{(b)}
\extralabel{fig:Name:c}{(c)}
\extralabel{fig:Name:d}{(d)}
\extralabel{fig:Name:e}{(e)}
\end{figure}
See subfigures \ref{fig:Name:a}, \ref{fig:Name:b}, \ref{fig:Name:c}, \ref{fig:Name:d}, \ref{fig:Name:e}.
\end{document}

Thank you so much, it works perfectly! :D – Alejandro Fernández Suárez Nov 21 '20 at 19:17 — Alejandro Fernández Suárez, Nov 21 '20 at 19:17

score 3 · Answer 2 · answered Nov 21 '20 at 19:14

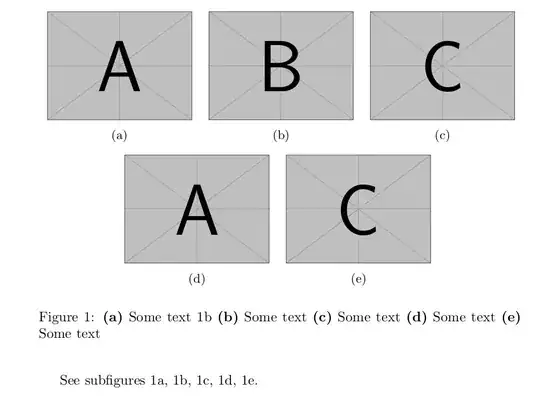

If you have control over the five pictures and their captions, then you can let the subcaption package handle the subcaptions and sublabes.

\documentclass{article}
\usepackage{subcaption}
\usepackage{graphicx}
\begin{document}
\begin{figure}
  \centering
\begin{tabular}{ccc}
  \subcaptionbox{\label{fig:Name:a}}{\includegraphics[width=0.3\textwidth]{example-image-a}} &
  \subcaptionbox{\label{fig:Name:b}}{\includegraphics[width=0.3\textwidth]{example-image-b}} &
  \subcaptionbox{\label{fig:Name:c}}{\includegraphics[width=0.3\textwidth]{example-image-c}}
\end{tabular}
\medskip
\begin{tabular}{cc}
  \subcaptionbox{\label{fig:Name:d}}{\includegraphics[width=0.3\textwidth]{example-image-a}} &
  \subcaptionbox{\label{fig:Name:e}}{\includegraphics[width=0.3\textwidth]{example-image-c}}
\end{tabular}
\medskip
\caption{ \textbf{(a)} Some text \ref{fig:Name:b}
\textbf{(b)} Some text
\textbf{(c)} Some text
\textbf{(d)} Some text
\textbf{(e)} Some text}
\label{fig:Name}
\end{figure}
See subfigures \ref{fig:Name:a}, \ref{fig:Name:b}, \ref{fig:Name:c}, \ref{fig:Name:d}, \ref{fig:Name:e}.
\end{document}

Thanks for your answer – Alejandro Fernández Suárez Nov 21 '20 at 19:17 — Alejandro Fernández Suárez, Nov 21 '20 at 19:17
