I'm trying but failing since quite some time now to get the following:

I've got 6 equations aligned and I want to brace the first 4 of them with some text behind.

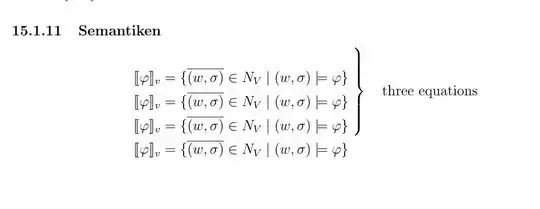

But my result is this something like this: compiled

If I'd get the brace to surround only the first 4 and still being aligned with the other equations, that'd be great!

Code looks something like this so far:

 \documentclass{article}
\usepackage{amsmath}
\usepackage{stmaryrd}
\begin{document}
    \begin{equation*}
    \begin{aligned}
    \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
    \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
    \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
    \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}
    \end{aligned}
    \begin{aligned}
    &\left.\vphantom{\begin{aligned}
        \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
        \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
        \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}  \\
        \llbracket \varphi \rrbracket_v &= \{\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \}
        \end{aligned}}\right\rbrace\quad\text{three equations}\\
    &\left.\vphantom{\begin{aligned}
        \implies m &= n \\
        o &= p*q
        \end{aligned}} \right.
    \end{aligned}
    \end{equation*}
\end{document}
Bernard
  • 271,350
Algebruh
  • 203
  • 2
    Welcome to TEX.SE! Please provide a full minimal working example starting with \documentclass{...} and ending with \end{document}. Right now we have to fill in some code and some packages; e.g. which one defines \llbracket? I think stmaryrd does, but you are leaving the work to us. Please help us helping you. – campa Jan 21 '21 at 16:15
  • You're completly right! I'm sry, bold me. Made some changes and hope it's better now :) – Algebruh Jan 21 '21 at 18:08

2 Answers2

10

A simple solution using an array and the bigdelim package:

\documentclass{article}
\usepackage{array, bigdelim}
\usepackage{stmaryrd}
\usepackage{mathtools}

\begin{document}


\begin{equation}
    \begin{array}{r@{}l@{:}l}
    \llbracket\varphi\rrbracket_v &{}=\bigl {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi\bigr}&\rdelim}{4}{}[\text{\quad three equations}] \[1ex]
     \llbracket\varphi\rrbracket_v &{}=\bigl {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \bigr} \[1ex]
    \llbracket \varphi \rrbracket_v &{}=\bigl {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \bigr} \[1ex]
    \llbracket \varphi \rrbracket_v &{}=\bigl {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi \bigr}
    \end{array}
\end{equation*}


\end{document}

enter image description here

Bernard
  • 271,350
9

With stmaryrd, nicematrix and tikz is relative easy:

enter image description here

\documentclass{article}
\usepackage{stmaryrd}
\usepackage{nicematrix}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing,
                calligraphy}
\tikzset{
B/.style = {decorate,
            decoration={calligraphic brace, amplitude=4pt,
            raise=1mm},
            very thick,
            pen colour=red}
        }

\begin{document}
    [
\begin{NiceArray}{c @{,} c<{\strut}}%
[create-extra-nodes,
 code-after = {\begin{tikzpicture}
        \draw[B] (1-2.north east) -- node[right=2mm] {four equation} (4-2.south east);
              \end{tikzpicture}
              }
]
\llbracket \varphi \rrbracket_v
    & = {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi }  \
\llbracket \varphi \rrbracket_v
\llbracket \varphi \rrbracket_v
    & = {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi }  \
\llbracket \varphi \rrbracket_v
    & = {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi }  \
\llbracket \varphi \rrbracket_v
    & = {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi }  \
\llbracket \varphi \rrbracket_v
    & = {\overline{(w, \sigma)} \in N_V \mid (w, \sigma) \models \varphi }
\end{NiceArray}
    ]
\end{document}

You need to compile at least twice that you will get showed result.

Zarko
  • 296,517
