Titlepage with tikz

Question

I need some help with a titlepage for tikz

I want to create the following... 3 red lines, a gray space a green space but I already fail with just creating a line across the whole page...

\draw (0,0) -- (\pagewidth,0) fails :-(, it only creates a line of 2 cm or so...

I hope anyone is good with tikz and can create this for me.

Update

@Tobi I now have the following:

\documentclass{report}
\usepackage{graphicx}
\usepackage{tikz}
\usetikzlibrary{
  calc,
  positioning
}
\begin{document}
\begin{titlepage}
\begin{tikzpicture}[overlay,remember picture]
  \coordinate (SW) at (current page.south west);
  \coordinate (SE) at (current page.south east);
  \coordinate (NW) at (current page.north west);
  \coordinate (NE) at (current page.north east);

  % commented out because it is not necessary to compile,
  % but one should note that the background is here,
  % because of overlapping parts.
  %\node at ($(current page.south west)$){
  %  \begin{tikzpicture}[overlay]
  %    %\includegraphics[width=\paperwidth]{./figures/cover_spaceshuttle.jpg}
  %  \end{tikzpicture}};

  \fill[blue,very nearly opaque] ($(SW)!0.2!(SE)$) -| ($(SE)!1.95!(NE)$) -- cycle;
  \fill[red,very nearly opaque] ($(SW)!0.2!(SE)$) -| ($(SE)!1.95!(NE)$) -- cycle;
  \draw[white,fill] ($(SW)$) rectangle ($(SE)!0.1!(NE)$);
  \fill[blue,very nearly opaque] ($(SW)!0.2!(SE)$) -| ($(SE)!1.95!(NE)$) -- cycle;
  \draw[red] ($(SW)!0.20!(SE)$) -- ($(NW)!0.61!(NE)$);
  \draw[red] ($(SW)!0.10!(NW)$) -- ($(SE)!0.10!(NE)$);
  \node at ($(SW)!0.1!(NW)$) [
    anchor=north,
    xshift=6.40cm,
    yshift=0.13cm,
    minimum width=\paperwidth,
    align=center,
    outer sep=0pt,
    font=\sffamily]{something};
\end{tikzpicture}
\end{titlepage}
\end{document}

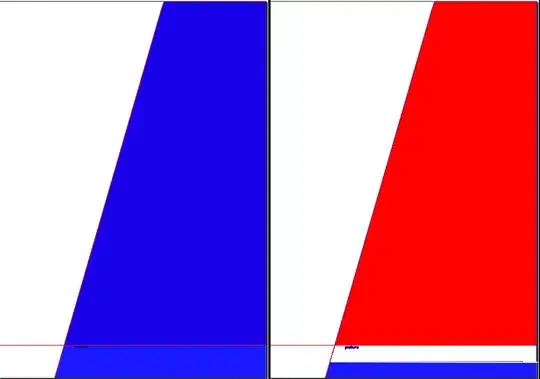

This code generates the following page

Now the blue fill fills all the way to the top, on the left side. But I only want to let it fill at about $(SW)!0.05!(NW)$, the right side. How do I achieve this? Thanks in advance

Answer 1

Use the options overlay and remember picture to make the cooridnates of the current page available as the current page node.

Try to adapt this to fit your needs …

\documentclass{article}

\usepackage{tikz}
\usetikzlibrary{calc,positioning}% [0]

\begin{document}
\begin{titlepage}
\begin{tikzpicture}[overlay,remember picture,line width=5pt]
    % set a new origin [1]
    \coordinate (O) at (current page.south west);
    % gray triangle
    \fill [gray] (current page.south west) -| (current page.north east) -- cycle;
    % red line
    \draw [red] (current page.south west) -- (current page.north east);
    % white framed box
    \node at (current page.south) [%
        draw=red,
        inner sep=15pt,
        fill=white,
        above=5cm,
        font=\sffamily\bfseries\Huge
    ] {The book title};
    % red box at 0.8\pageheight
    \node (Author) at ($(O)+(0,0.8\paperheight)$) [% [2] [4]
        fill=red,
        anchor=south west,
        minimum width=\paperwidth,
        align=center,
        outer sep=0pt,
        font=\sffamily\bfseries] {Jon Doe};
    % red box at 0.75\paperheight
    \node at ($(current page.south)!0.75!(current page.north)$) [% [3]
        fill=red,
        anchor=south,
        minimum width=\paperwidth,
        align=center,
        outer sep=0pt,
        font=\sffamily] {\today};
    % red box above the author
    \node [%
        fill=red,
        above=1mm of Author,% [5]
        minimum width=\paperwidth,
        align=center,
        outer sep=0pt,
        font=\sffamily] {\TeX.SX example press};
\end{tikzpicture}
\end{titlepage}
\end{document}

(Compile twice to get the right result)

Update
I added three more ways to position your elements on the page

• Set a new origin coordinate (O) to the lower left corner 1 of the page and move relatively [2] to it (needs calc library [0]).
• Use TikZ to calculate the position using the (point)!div!(point) syntax [3] (needs calc library [0]).
• Name a node [4] and position a second node relatively to it [5] (needs positioning library [0]).
