Draw anything in a figure using pylatex

Question

I'm wondering to know how to draw some lines in a figure or and add some linewidth on an image but I've trying I have not get any solution.

This is the code I'm trying:

from pylatex import Document, PageStyle, Head, MiniPage, Foot, LargeText, \
MediumText, LineBreak, simple_page_number, Figure, NoEscape,\
StandAloneGraphic, Package, Command, VerticalSpace,\
HugeText, Section, NewPage, Center, TikZDraw,\
TikZCoordinate, TikZOptions, TikZ, TikZNode
from pylatex.utils import bold
import os
def generate_header():
    #Imagenes Portada
    image = os.path.join(os.path.dirname(file), 'logo.png')
with doc.create(Center()) as center:
center.append(VerticalSpace("20pt"))
     with center.create(Section('Screen 1', numbering=True)):
          center.append(VerticalSpace("20pt"))
          with center.create(Figure(position='h!')) as image1:
              image1.add_image(image, width='317px')
              image1.add_caption('Description')

              with image1.create(TikZ()) as pic:
                  # pic.append(TikZDraw([TikZCoordinate(-5, 0),
                  #             'rectangle',
                  #             TikZCoordinate(7, -2)],
                  #             ))
                   pic.append(TikZDraw([TikZCoordinate(0,0),
                        'circle'],
                        options=TikZOptions(radius='5pt')
                        ))

What I get is the circle below the image and not over the figure.

Answer 1

This might be horrible code, but it works I suppose. I didn't use exactly the same strategy as in the post I linked to in the comment, as I'm too daft/lazy to figure out how to do it. Specifically, I dropped the scope, which means that the coordinates are not relative to the image size. Hence, if you change the size of the image, you have to change all the coordinates of the paths. The way this is set up, the lower left corner of the image is at the coordinate (0,0).

from pylatex import Document, PageStyle, Head, MiniPage, Foot, LargeText, \
MediumText, LineBreak, simple_page_number, Figure, NoEscape,\
StandAloneGraphic, Package, Command, VerticalSpace,\
HugeText, Section, NewPage, Center, TikZDraw,\
TikZCoordinate, TikZOptions, TikZ, TikZNode
from pylatex.utils import bold
import os
def generate_header():
    #Imagenes Portada
    image = 'example-image'
with doc.create(Center()) as center:
    center.append(VerticalSpace("20pt"))
    with center.create(Section('Screen 1', numbering=True)):
        center.append(VerticalSpace("20pt"))
        with center.create(Figure(position='h!')) as image1:
            with image1.create(TikZ()) as pic:
                pic.append(TikZNode(text=StandAloneGraphic(image,image_options='width=7cm').dumps(),
                            options=TikZOptions('inner sep=0pt,name=img', 'anchor=south west')
                            ))
                pic.append(TikZDraw([TikZCoordinate(0.1, 3), '--', TikZCoordinate(6, 4)], options=TikZOptions('draw', 'red', 'ultra thick', '-stealth')))
                pic.append(TikZDraw([TikZCoordinate(3.5,0.5), 'rectangle', TikZCoordinate(6, 2)],
                                     options=TikZOptions('draw','blue','thick')))


doc = Document()
generate_header()
doc.generate_tex('my_solution')

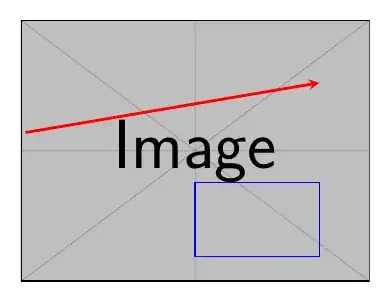

Which generates this code:

\documentclass{article}%
\usepackage[T1]{fontenc}%
\usepackage[utf8]{inputenc}%
\usepackage{lmodern}%
\usepackage{textcomp}%
\usepackage{lastpage}%
\usepackage{ragged2e}%
\usepackage{tikz}%
%
%
%
\begin{document}%
\normalsize%
\begin{center}%
\vspace*{20pt}%
\section{Screen 1}%
\label{sec:Screen1}%
\vspace*{20pt}%
\begin{figure}[h!]%
\begin{tikzpicture}%
\node[inner sep=0pt,name=img,anchor=south west] {\includegraphics[width=7cm]{example-image}};%
\path[draw,red,ultra thick,-stealth,draw] (0.1,3.0) -- (6.0,4.0);%
\path[draw,blue,thick,draw] (3.5,0.5) rectangle (6.0,2.0);%
\end{tikzpicture}%
\end{figure}
%
\end{center}%
\end{document}
