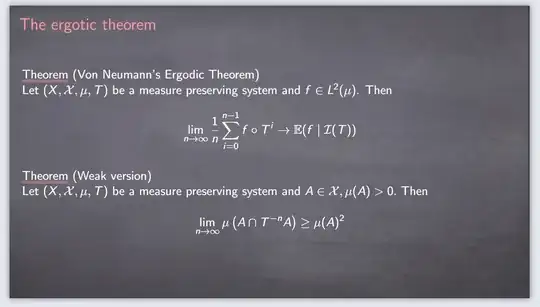

Consider the image below enter image description here It looks great for presentation.

My question is what TeX packages render such slides?

  • 5
    "Looks great" is a matter of opinion ;-) but this might be a starting point: https://tex.stackexchange.com/q/162873/82917 – campa Jul 08 '21 at 14:48

2 Answers2

2

That may be achieved via different methods, I am sending here one idea of how to do it.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\documentclass[aspectratio=169]{beamer}

\usetheme{Madrid} \usecolortheme{fly} \setbeamercolor{normal text}{fg=white} \setbeamercolor{frametitle}{fg=red!40}

\setbeamertemplate{navigation symbols}{} % Remove nav. icons

\usepackage{graphicx} \usebackgroundtemplate {\includegraphics[width=\paperwidth,height=\paperheight]{background-board.png}}

\usepackage{ulem,xcolor} \makeatletter \newcommand{\coloruuline}[2]{% \UL@protected\def\temp@uuline{\leavevmode \bgroup \UL@setULdepth \ifx\UL@on\UL@onin \advance\ULdepth2.8\p@\fi \markoverwith{\textcolor{#1}{\lower\ULdepth\hbox {\kern-.03em\vbox{\hrule width.2em\kern1\p@\hrule}\kern-.03em}}}% \ULon}% \temp@uuline{#2}% }
\makeatother \newcommand{\rul}[1]{\coloruuline{red!40}{#1}}

\title[Example]{Beamer example} %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% \begin{document} %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% \section{First section} \begin{frame}[plain]{The ergotic theorem}

\rul{Theorem} (Von Neumann's Ergodic Theorem)

Let $(X, \mathcal{X}, \mu, T)$ be a measure preserving system and $f \in L^{2}(\mu)$. Then

\begin{equation} \lim {n \rightarrow \infty} \frac{1}{n} \sum{i=0}^{n-1} f \circ T^{i} \rightarrow \mathbb{E}(f \mid \mathcal{I}(T))
\end{equation
}

\vspace{10pt} \rul{Theorem} (Weak version)

Let $(X, \mathcal{X}, \mu, T)$ be a measure preserving system and $A \in \mathcal{X}, \mu(A)>0 .$ Then

\begin{equation} \lim _{n \rightarrow \infty} \mu\left(A \cap T^{-n} A\right) \geq \mu(A)^{2}
\end{equation
}

\end{frame} %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% \end{document} %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% % EOF

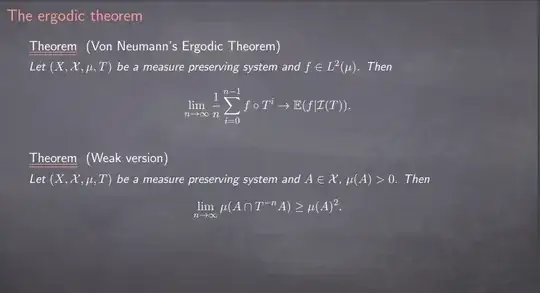

Sample of the output. enter image description here

The background picture. enter image description here

0

How about this? I created a new environment for that. I think everything should be described inline.

\documentclass{beamer}
\usetheme{default}
\def\myEmphColor{red}% <== ADAPT COLOR HERE.
\usepackage{amsmath,ulem,ifthen}
\setbeamercolor{frametitle}{fg=\myEmphColor}
\usebackgroundtemplate{\includegraphics[width=\paperwidth,height=\paperheight]{example-image-duck}}% Simply use a blackboard-image of correct size here. Sorry for stretching you, Mr. Duck!

\newenvironment{mythm}[1][]{% create new environment with 1 optional parameter. \setbeamercolor{block title}{fg=black}% \setbeamercolor{block body}{fg=black}% \begin{block}{{% \color{\myEmphColor}\uuline{\color{black}Theorem}}% print 'Theorem' and underline it twice in color 'myEmphColor'. \ifthenelse{\equal{#1}{}}{}{ (#1)}}% if given, add the optional theorem name in parentheses. }{% \end{block}% }

\begin{document}
\begin{frame}{The ergodic theorem} \begin{mythm}[Von Neumann's Ergodic Theorem] Let $(X,\mathcal X,\mu,T)$ be a measure preserving system and $f\in L^2(\mu)$. Then \begin{equation} \lim_{n\to\infty}\frac{1}{n}\sum_{i=0}^{n-1}f\circ T^i\to\mathbb E(f\vert\mathcal I(T)). \end{equation} \end{mythm}

  \begin{mythm}% &lt;- works without theorem title, too.
     Let $(X,\mathcal X,\mu,T)$ be a measure preserving system and $A\in\mathcal X$, $\mu(A)&gt;0$. Then
     \begin{equation*}
        \lim_{n\to\infty}\mu(A\cap T^{-n}A)\geq\mu(A)^2.
     \end{equation*}
  \end{mythm}

\end{frame} \end{document}

enter image description here
