I would like to insert a slide to show an image while revealing a TikZ Mindmap.

\documentclass[t]{beamer}
\usetheme[progressbar=frametitle]{metropolis}
\usetikzlibrary{overlay-beamer-styles}
\setbeamercovered{transparent=7}
\usetikzlibrary{mindmap,trees,shadows}
%https://tex.stackexchange.com/questions/55806/mindmap-tikzpicture-in-beamer-reveal-step-by-step
\tikzset{
    invisible/.style={opacity=0.1},
    visible on/.style={alt={#1{}{invisible}}},
    alt/.code args={<#1>#2#3}{%
      \alt<#1>{\pgfkeysalso{#2}}{\pgfkeysalso{#3}} % \pgfkeysalso doesn't change the path
    },
  }
%%%---------------
\usetikzlibrary{calc}
%%%%---------------------
% \usepackage{smartdiagram}
\usepackage{adjustbox}
\usepackage{standalone}
\setbeamercolor{background canvas}{bg=white}
\setbeamercovered{transparent=7}
\begin{document}
            \begin{frame}[t]{Desafíos técnicos}
                \begin{center}
                    \begin{tikzpicture}[scale=.58, every node/.style={transform shape},]

                    \path[mindmap,concept color=black,text=white, ,visible on=&lt;{1,2,4}&gt;
                            ] node[concept] {Desafíos Técnicos}
                    [clockwise from=150]

                    child[concept color=green!50!black,visible on=&lt;{2,4}&gt;] {
                        node[concept] {Tamaño de la red}
                            [clockwise from=-90]
                            child { node[concept] {Concurren\-cia operaciones}
                                [clockwise from=210]
                                child[concept color=red!50!black] { node[concept] {Max. throrughput}}
                            }
                            child { node[concept] (bulk) {Operacio\-nes \emph{bulk}}
                                [clockwise from=210]
                                child[concept color=red!50!black] { node[concept] {Max. throrughput}}
                            }
                            child { node[concept] {Distribu\-ción}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Reducir carga cómputo}}
                                child[concept color=red!50!black] { node[concept] {Reducir tráfico}}
                            }
                    }
                    child[concept color=cyan!60!black,visible on=&lt;{1,2,4}&gt;] {
                        node[concept] {Características de aplicaciones}
                            [clockwise from=150]
                            child { node[concept] {Basadas en transacciones}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Heteroge\-neidad equipos}}
                            }
                            child { node[concept] (a) {Basadas en interrupciones}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Correla\-ción de alarmas}}
                            }
                            child { node[concept] {Basadas en cómputo}
                                [clockwise from=30]
                                child[concept color=red!50!black] { node[concept] {Capaci\-dad de cálculo}}
                                child[concept color=red!50!black] { node[concept] {Grandes datasets}}
                            }
                    }
                    child[concept color=yellow!60!black, visible on=&lt;4&gt;] {
                        node[concept] {Integración}
                            [clockwise from=30]
                            child[concept color=red!50!black] { node[concept] {Swivel-chair syndrome}
                            }
                    };
                \end{tikzpicture}
            \end{center}
            \only&lt;3&gt;{
                    \includegraphics[scale=.6]{concurr12.png}
            }

        \end{frame}




\end{document}

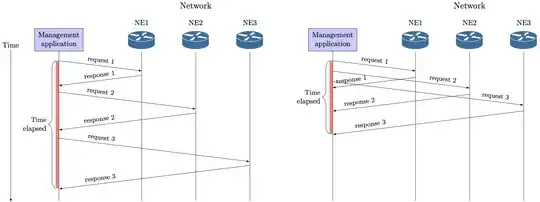

The PNG file of slide 3:

enter image description here

To show step-by-step, I am using the solution in previous post of link.

The problem is that slide 3 has the mindmap, and the concurr12.png image is placed below. I would like to insert slides 3, 4, 6, and 7 with figures like concurr12.png in the same beamer frame.

pablo
  • 451

1 Answers1

3

You can use absolute positioning with remember picture, overlay.

\documentclass[t]{beamer}
\usetheme[progressbar=frametitle]{metropolis}
\usetikzlibrary{overlay-beamer-styles}
\setbeamercovered{transparent=7}
\usetikzlibrary{mindmap,trees,shadows}
%https://tex.stackexchange.com/questions/55806/mindmap-tikzpicture-in-beamer-reveal-step-by-step
\tikzset{
    invisible/.style={opacity=0.1},
    visible on/.style={alt={#1{}{invisible}}},
    alt/.code args={<#1>#2#3}{%
      \alt<#1>{\pgfkeysalso{#2}}{\pgfkeysalso{#3}} % \pgfkeysalso doesn't change the path
    },
  }
%%%---------------
\usetikzlibrary{calc}
%%%%---------------------
% \usepackage{smartdiagram}
\usepackage{adjustbox}
\usepackage{standalone}
\setbeamercolor{background canvas}{bg=white}
\setbeamercovered{transparent=7}
\begin{document}
            \begin{frame}[t]{Desafíos técnicos}
                \begin{center}
                    \begin{tikzpicture}[scale=.58, every node/.style={transform shape},]

                    \path[mindmap,concept color=black,text=white, ,visible on=&lt;{1,2,4}&gt;
                            ] node[concept] {Desafíos Técnicos}
                    [clockwise from=150]

                    child[concept color=green!50!black,visible on=&lt;{2,4}&gt;] {
                        node[concept] {Tamaño de la red}
                            [clockwise from=-90]
                            child { node[concept] {Concurren\-cia operaciones}
                                [clockwise from=210]
                                child[concept color=red!50!black] { node[concept] {Max. throrughput}}
                            }
                            child { node[concept] (bulk) {Operacio\-nes \emph{bulk}}
                                [clockwise from=210]
                                child[concept color=red!50!black] { node[concept] {Max. throrughput}}
                            }
                            child { node[concept] {Distribu\-ción}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Reducir carga cómputo}}
                                child[concept color=red!50!black] { node[concept] {Reducir tráfico}}
                            }
                    }
                    child[concept color=cyan!60!black,visible on=&lt;{1,2,4}&gt;] {
                        node[concept] {Características de aplicaciones}
                            [clockwise from=150]
                            child { node[concept] {Basadas en transacciones}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Heteroge\-neidad equipos}}
                            }
                            child { node[concept] (a) {Basadas en interrupciones}
                                [clockwise from=150]
                                child[concept color=red!50!black] { node[concept] {Correla\-ción de alarmas}}
                            }
                            child { node[concept] {Basadas en cómputo}
                                [clockwise from=30]
                                child[concept color=red!50!black] { node[concept] {Capaci\-dad de cálculo}}
                                child[concept color=red!50!black] { node[concept] {Grandes datasets}}
                            }
                    }
                    child[concept color=yellow!60!black, visible on=&lt;4&gt;] {
                        node[concept] {Integración}
                            [clockwise from=30]
                            child[concept color=red!50!black] { node[concept] {Swivel-chair syndrome}
                            }
                    };
                \end{tikzpicture}
            \end{center}
            \only&lt;3&gt;{



\tikz[remember picture,overlay]{\node at (current page.center){\includegraphics[width=\textwidth]{concurr12.png}};}                                 }


        \end{frame}




\end{document}

presentation with correct position of image

vi pa
