The numbers are in Persian (side SB=6 and angle SBA=60 degrees).

Vafa Khalighi
  • 677
  • You can give a look at : http://tex.stackexchange.com/questions/46682/making-a-3d-colored-pyramid-in-tikz and http://tex.stackexchange.com/questions/37442/draw-a-prism-in-tikz-or-pstricks – Alain Matthes Jul 02 '12 at 07:35

2 Answers2

7

A solution with tkz-euclide but I made a mistake (HBS=60 and not SBA). Your example shows HBS ??. It's easy to make the same thing with TikZ but perhaps you can place some points like A,B,C,S and after we can help you to finish your drawing.

\documentclass[11pt]{article}
\usepackage{tkz-euclide}
\usetkzobj{all}

\begin{document}
\begin{tikzpicture}
\tkzDefPoint(0,0){B}
\tkzDefPoint(4,0){C}
\tkzDefPoint(60:6){S}
\tkzDefPoint(30:3){A}
\tkzDefPointWith[colinear= at S](B,A)   \tkzGetPoint{I}
\tkzDefPointBy[projection=onto B--C](S) \tkzGetPoint{H}
\tkzDefPointWith[colinear= at S](B,C)   \tkzGetPoint{D}
\tkzDrawPolygon(S,D,I)
\tkzDrawSegments(B,C S,H B,S C,D)
\tkzDrawSegments[dashed](A,C A,B A,I)
\tkzLabelPoints[below right](C,D,H)
\tkzLabelPoints[above left](A,B,S,I)
\tkzMarkRightAngle[fill=lightgray](B,H,S)
\tkzMarkAngle[mark=|,arc=||,size=.5 cm,mkcolor=gray](C,B,S)
\tkzLabelAngle[pos=1,circle,fill=white](C,B,S){$60^{\circ}$}
\tkzLabelSegment[left](B,S){6}
\end{tikzpicture}
\end{document}

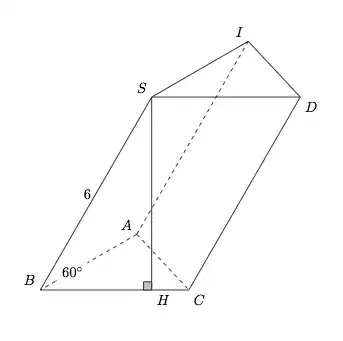

enter image description here

Update

The definition of the coordinates with TikZ are given by

  \begin{tikzpicture}
   \coordinate (B) at (0,0);
   \coordinate (C) at (4,0);
   \coordinate (S) at (60:6);
   \coordinate (D) at ($(60:6)+(C)-(B)$);
   \coordinate (A) at (30:3);
   \coordinate (I) at ($(60:6)+(A)-(B)$);
   \coordinate (H) at ($(B)!(S)!(C)$);
   \draw (D) -- (S) -- node[left] {6}(B)--(C) --  cycle;
   \draw (S) -- (H);
   \draw[dashed] (B) -- (A) --(C) (I) -- (A);
   \draw (S) -- (I) -- (D);
  \end{tikzpicture}
Alain Matthes
  • 95,075
2

Compile the following with either xelatex or latex-dvips-ps2pdf.

enter image description here

\documentclass[border=12pt]{standalone}
\usepackage{pst-eucl}

\begin{document}
\begin{pspicture}[showgrid=false](9.2,7.7)
    \psset{PointSymbol=none}
    \pstTriangle[PosAngleA=-140,PosAngleC=135](0,0){B}(5,0){C}(3,2){A}
    \pstGeonode[PointName=none](0,0){M}(4,6){N}
    \pstTranslation[PointName={none,S,D},CurveType=polygon,PosAngle={0,135,0}]{M}{N}{A,B,C}
    \pstLineAB[linestyle=dashed]{A}{A'}
    \pstLineAB{B}{B'}
    \pstLineAB{C}{C'}
    \pstGeonode[PosAngle=-90,PointNameSep=7pt](B'|B){H}
    \pstLineAB{B'}{H}
    \pspolygon[fillstyle=solid,fillcolor=gray,opacity=0.5](B)(H)(B')
    \pstRightAngle{B}{H}{B'}
\end{pspicture}
\end{document}
