Tables doesn't have vertical line at the right of each

Question

I have two tables, but I can't figure out why it doesn't have vertical line at the right of the table. Could you tell me, where I've made mistake?

First one:

    \newline
\begin{center}
\begin{tabular}{||c c c c c c||}
 \hline
 $\emph{p}$ & $\emph{q}$ & $([\emph{p} \wedge$ & $(\emph{p} \Rightarrow \emph{q]})$ & $\Rightarrow$ & $\emph{q}$ \\ [0.5ex]
 \hline\hline
 0 & 0 & 0 & 1 & 1\\
 \hline
 0 & 1 & 0 & 1 & 1\\
 \hline
 1 & 0 & 0 & 0 & 1\\
 \hline
 1 & 1 & 1 & 1 & 1\\
 \hline
\end{tabular}
\end{center}

Second one:

    \newline
\begin{center}
\begin{tabular}{||c c c c c c c c c||}
 \hline
 $\emph{p}$ & $\emph{q}$ & $\neg$ & $(\emph{p} \vee \emph{q})$ & $\leftrightarrow$ & $(\neg\emph{p}$ & $\wedge$ & $\neg\emph{q})$ \\ [0.5ex]
 \hline\hline
 0 & 0 & 1 & 0 & 1 & 1 & 1 & 1\\
 \hline
 0 & 1 & 0 & 1 & 1 & 1 & 0 & 0\\
 \hline
 1 & 0 & 0 & 1 & 1 & 0 & 0 & 1\\
 \hline
 1 & 1 & 0 & 1 & 1 & 0 & 0 & 0\\
 \hline
 \hline
\end{tabular}
\end{center}

in the first table you specified a rule after the 6th column, but you only have 5 columns and in second table you have a rule after the 9th column but only 8 columns — David Carlisle, Nov 02 '21 at 18:48
Off-topic: what you like to achieve with $\emph{q}$? Correct is just `$q$ ... etc — Zarko, Nov 02 '21 at 18:53
@DavidCarlisle I'm sorry, but I can't find that rule. I'm totally new to Latex. I've been using it for like 2 hours. — GuwniakSmierdzoncy, Nov 02 '21 at 18:57
Following @DavidCarlisle's suggestion, that's often why it's contextually easier to use the *{<num>}{<col spec>} approach to defining your tabular column specification. In your first instance: || *{6}{c} || would help highlight there are 6 columns; your second instance: || *{9}{c} || would help highlight there are 9 columns. — Werner, Nov 02 '21 at 19:01
you have 6 c cccccc|| so if you have 6 columns the last one will get || but you only have 5 columns, delete one of the c — David Carlisle, Nov 02 '21 at 19:01

score 1 · Answer 1 · answered Nov 02 '21 at 19:29

Your issue is related to specifying too many columns and then not using them all. Your first table has a column specification with 6 centered columns, while you only supply 5 values per row before terminating the row (with \\). That leaves the last column (which also holds the righthand ||) out of the row and therefore no vertical rules on the right. The same principle holds for the second table. In general, you can use a *{<num>}{<col spec>} approach to defining <num> columns, each of which will have a <col spec> specification. For example, *{5}{c} would be equivalent to c c c c c, and *{3}{| c p{2cm}} would be equivalent to | c p{2cm} | c p{2cm} | c p{2cm}. It's sometimes easier to ensure the same number of columns in the specification and the table by using the abbreviated form.

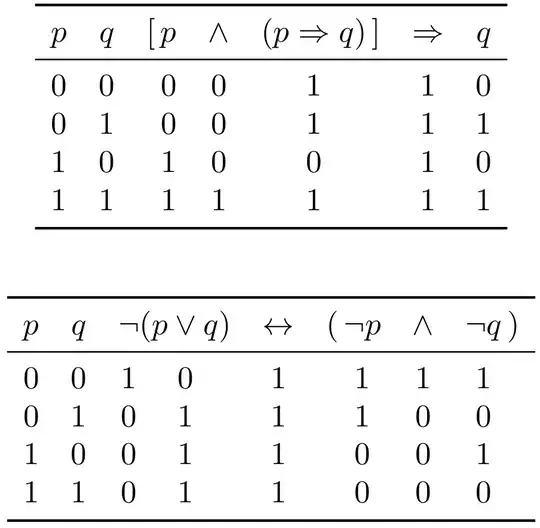

Here's a slightly different approach to showing the content, using booktabs. It shows:

\documentclass{article}
\usepackage{booktabs}
\begin{document}
[
  \begin{array}{ c c c @{,} c c c @{,} c c c }
   \toprule
   p & q & [ & p & \wedge & (p \Rightarrow q) & ] & \Rightarrow & q \
   \midrule
   0 & 0 &   & 0 &   0    &         1         &   &       1     & 0 \
   0 & 1 &   & 0 &   0    &         1         &   &       1     & 1 \
   1 & 0 &   & 1 &   0    &         0         &   &       1     & 0 \
   1 & 1 &   & 1 &   1    &         1         &   &       1     & 1 \
   \bottomrule
  \end{array}
]
[
  \begin{array}{ c c c @{} c c c @{,} c c c @{,} c }
    \toprule
    p & q & \neg & (p \vee q) & \leftrightarrow & ( & \neg p & \wedge & \neg q & ) \
    \midrule
    0 & 0 &   1  &      0     &        1        &   &    1   &   1    &    1   &   \
    0 & 1 &   0  &      1     &        1        &   &    1   &   0    &    0   &   \
    1 & 0 &   0  &      1     &        1        &   &    0   &   0    &    1   &   \
    1 & 1 &   0  &      1     &        1        &   &    0   &   0    &    0   &   \
    \bottomrule
  \end{array}
]
\end{document}

Note that @{<stuff>} in the column specification changes the space between the adjacent columns to <stuff>. So, in the above cases, I insert a small horizontal space \, between the two columns.
