Table center alignment and missing border

Question

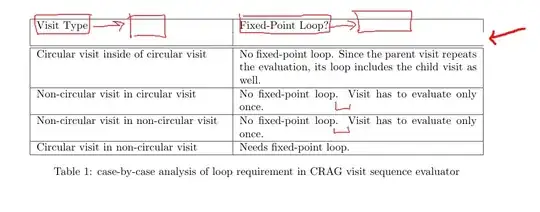

This table has a few issues.

I used the \centering command to center align the first row of the table but it doesn't work and everything is left aligned
border on the top-right hand side of the table is missing some parts
Is there a way to minimize empty spaces between the rows?

Code:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage[a4paper, total={6in, 8in}]{geometry}
\usepackage{algorithm}
\usepackage{algpseudocode}
\usepackage{amsmath,amssymb}
\usepackage{amsthm}
\usepackage{mathrsfs}
\usepackage{cleveref}
\usepackage{tikz}
\usetikzlibrary{positioning,calc,arrows.meta}%arrows is deprecated
\usepackage{float}
\usepackage{framed}
\usepackage{blindtext}
\newfloat{infobox}{htbp}{lop}
\theoremstyle{definition}
\newtheorem{definition}{Definition}[section]
\pagenumbering{gobble}
\begin{document}
\begin{center}
\begin{table}
\centering
\begin{tabular}{|p{0.4\linewidth} | p{0.5\linewidth}|}
\hline
Visit Type & Fixed-Point Loop?   \ \
\hline\hline
Circular visit inside of circular visit & No fixed-point loop. Since the parent visit repeats the evaluation, its loop includes the child visit as well.\ \hline
Non-circular visit in circular visit & No fixed-point loop. Visit has to evaluate only once. \ \hline
Non-circular visit in non-circular visit & No fixed-point loop. Visit has to evaluate only once. \ \hline
Circular visit in non-circular visit & Needs fixed-point loop. \ \hline
\end{tabular}\caption{case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
\end{table}
\end{center}
\end{document}

A general remark about your code: Never encase a figure or table float in a center environment`. — Mico, Nov 07 '21 at 07:08
@NodeJS how did you manage the extra spacing in between the sentences -- No fixed-point loop. (extra spacing here)Visit has to evaluate only once — js bibra, Nov 07 '21 at 07:55

Dr. Manuel Kuehner · Accepted Answer · 2021-11-07T00:55:55.280

For your next question: Your code contains a lot of unnecessary packages.
You centered the (complete!) table twice (using \begin{center} and \centering). The \centering version is better since it does not add additional vertical white space, see When should we use \begin{center} instead of \centering?.
Regarding the first problem (centering the content of a cell), I provide a solution based on Aligning inside tabular environment, specific cell.
For the other problem (word spacing), I recommend having a look at Right alignment for p{length} box in tabular or How can I left-justify a paragraph cell in a table? (I have to stop procrastinating now and work on my actual work :)).

\documentclass{article}
%\usepackage[utf8]{inputenc}
\begin{document}
\begin{table}
\centering
\begin{tabular}{|p{0.4\linewidth} | p{0.5\linewidth}|}
\hline
% https://tex.stackexchange.com/questions/33486
\multicolumn{1}{|c|}{Visit Type} & \multicolumn{1}{c|}{Fixed-Point Loop?}   \
\hline\hline
Circular visit inside of circular visit & No fixed-point loop. Since the parent visit repeats the evaluation, its loop includes the child visit as well.\ \hline
Non-circular visit in circular visit & No fixed-point loop. Visit has to evaluate only once. \ \hline
Non-circular visit in non-circular visit & No fixed-point loop. Visit has to evaluate only once. \ \hline
Circular visit in non-circular visit & Needs fixed-point loop. \ \hline
\end{tabular}\caption{case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
\end{table}
\end{document}

Thank you so much for the answe. Is it common to have an upside-down question mark? — Node.JS, Nov 07 '21 at 00:54
@Node.JS Ignore that. I had a wrong symbol in my editor (copy and paste mistake). — Dr. Manuel Kuehner, Nov 07 '21 at 00:55
@Node.JS I go offline now. Good luck (tables are no fun in LaTeX, I know the pain). — Dr. Manuel Kuehner, Nov 07 '21 at 00:57
@Dr.ManuelKuehner I must have a strange perception of fun then, because I like creating tables in LaTeX... — Skillmon, Nov 07 '21 at 10:19
Actually the center environment does not center the table environment`; it may only add vertical space somewhere. — egreg, Nov 07 '21 at 11:34

score 4 · Answer 2 · answered Nov 07 '21 at 11:49

You could use \centering in the cells of the first row, with the caveat that you need \tabularnewline in order to end it.

Don't enclose table inside center: you'd only get vertical space somewhere, not necessarily around the table.

I also add a different rendering of the table, without vertical rules and with less repetitions.

\documentclass{article}
\usepackage[a4paper, total={6in, 8in}]{geometry}
\usepackage{booktabs} % for the second rendering
\begin{document}
\begin{table}[htp]
\centering
\begin{tabular}{|p{0.4\linewidth} | p{0.5\linewidth}|}
\hline
\centering Visit Type & \centering Fixed-Point Loop? \tabularnewline
\hline\hline
Circular visit inside of circular visit &
  No fixed-point loop. Since the parent visit repeats the evaluation,
  its loop includes the child visit as well. \
\hline
Non-circular visit in circular visit &
  No fixed-point loop. Visit has to evaluate only once. \
\hline
Non-circular visit in non-circular visit &
  No fixed-point loop. Visit has to evaluate only once. \
\hline
Circular visit in non-circular visit &
  Needs fixed-point loop. \
\hline
\end{tabular}
\caption{Case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
\end{table}
\begin{table}[htp]
\centering
\begin{tabular}{@{} l p{0.6\linewidth} @{}}
\toprule
Visit Type & \centering Fixed-Point Loop? \tabularnewline
\midrule
Circular in circular &
  No fixed-point loop. Since the parent visit repeats the evaluation,
  its loop includes the child visit as well. \
\addlinespace
Non-circular in circular &
  No fixed-point loop. Visit has to evaluate only once. \
\addlinespace
Non-circular in non-circular &
  No fixed-point loop. Visit has to evaluate only once. \
\addlinespace
Circular in non-circular &
  Needs fixed-point loop. \
\bottomrule
\end{tabular}
\caption{Case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
\end{table}
\end{document}

score 2 · Answer 3 · answered Nov 07 '21 at 13:44

You may try to use tabularray package. Use it is simple to define styles of the first row (containing columns headers) and lines styles. Below are two examples /similar as is in the @egreg answer (+1)/:

\documentclass{article}
\usepackage[a4paper, total={6in, 8in}]{geometry}
\usepackage{tabularray}
\begin{document}
\begin{table}[htp]
\centering

\begin{tblr}{hline{1,Z}=1pt, hline{2}=0.6pt, hline{3-Y}={solid},

             vlines,
             colspec={Q[j,t, wd=0.4\linewidth] Q[j,t, wd=0.5\linewidth]},
             row{1} = {font=\bfseries, c}% content of cells in the first row
                                         % are horizontal centered
             }
Visit Type  &   Fixed-Point Loop? \
Circular visit inside of circular visit
            &   No fixed-point loop. Since the parent visit repeats the evaluation,
                its loop includes the child visit as well. \
Non-circular visit in circular visit
            &   No fixed-point loop. Visit has to evaluate only once. \
Non-circular visit in non-circular visit
            &   No fixed-point loop. Visit has to evaluate only once. \
Circular visit in non-circular visit
            &   Needs fixed-point loop. \
\end{tblr}
    \caption{Case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
    \label{tab:?}
    \end{table}
\begin{table}[htp]
\centering

\begin{tblr}{hline{1,Z}=1pt, hline{2}=0.6pt,
             colspec={@{} Q[j,t, wd=0.4\linewidth] Q[j,t, wd=0.5\linewidth] @{}},
             row{1} = {font=\bfseries, c},
             row{2-Y} = {belowsep+=3pt}
             }
Visit Type  &   Fixed-Point Loop? \
Circular visit inside of circular visit
            &   No fixed-point loop. Since the parent visit repeats the evaluation,
                its loop includes the child visit as well. \
Non-circular visit in circular visit
            &   No fixed-point loop. Visit has to evaluate only once. \
Non-circular visit in non-circular visit
            &   No fixed-point loop. Visit has to evaluate only once. \
Circular visit in non-circular visit
            &   Needs fixed-point loop. \
\end{tblr}
    \caption{Case-by-case analysis of loop requirement in CRAG visit sequence evaluator}
    \label{tab:??}
    \end{table}
\end{document}

BTW, captions for tables are usual above table.
