1
\noindent
\begin{tabularx}{\textwidth}{|c||c||c|}
\hline
 Scheme & Architecture & Functionality \\
\hline
Intelligent wall & Active frequency selective surfaces with PIN diodes & Fully transparent reflecting surfaces\\
Spatial microwave modulators & Binary phase state tunable meta-surfaces & Shaping complex microwave fields\\
Coding meta-materials & Meta-surfaces with binary elements (0 or $\pi$ phases) & Reconfigurable scattering patterns\\
Programmable meta-surface & Meta-surfaces with PIN diode-equipped cells & Reconfigurable phase, polarization,
and scattering\\
Reconfigurable reflect-arrays & Reflect-arrays with tunable (varactor-tuned) resonators & Adjustable reflection phase\\
Large intelligent surface & Active contiguous surface for transmission and reception & Gains compared to massive MIMO   \\
Software-controlled hypersurface & Meta-surfaces equipped with IoT gateways & Wave absorption, polarization,
and steering\\
\hline
\end{tabularx}\\ \\
Paul Gessler
  • 29,607
  • Tabularx without any X type column does not really make sense. You may want to try replacing the c column type with X column types. – leandriis Dec 06 '21 at 18:17
  • I tried it, did not work –  Dec 06 '21 at 18:23
  • 1
    What exactly does "did not work" mean? Do you end up with a code that is not compilable, does the table still protrude into the right margin or do you end up with a table that fits but you just don't like the look of it? – leandriis Dec 06 '21 at 18:27
  • Please also make your code compilable by adding the documentclass as well as the relevant packages. (See also: minimal working example (MWE)) – leandriis Dec 06 '21 at 18:31
  • the table still in right side –  Dec 06 '21 at 18:32
  • "on right side" or "in right side" doesn't really make sense. I think you mean "is going too far to the right" or "protrudes into the right margin". – Teepeemm Dec 06 '21 at 18:58

1 Answers1

1

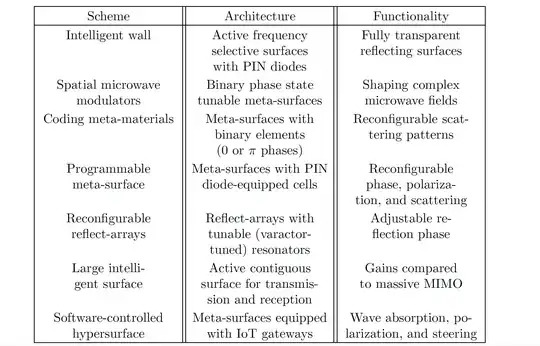

Something like this?

enter image description here

\documentclass{article}
\usepackage{tabularx,ragged2e}
\newcolumntype{C}{>{\Centering}X}

\begin{document}


\setlength\extrarowheight{3pt}
\setlength{\tabcolsep}{4pt}
\noindent
\begin{tabularx}{\textwidth}{|C||C||C|}
\hline
 Scheme & Architecture & Functionality \
\hline
Intelligent wall & Active frequency selective surfaces with PIN diodes & Fully transparent reflecting surfaces\
Spatial microwave modulators & Binary phase state tunable meta-surfaces & Shaping complex microwave fields\
Coding meta-materials & Meta-surfaces with binary elements (0 or $\pi$ phases) & Reconfigurable scattering patterns\
Programmable meta-surface & Meta-surfaces with PIN diode-equipped cells & Reconfigurable phase, polarization, and scattering\
Reconfigurable reflect-arrays & Reflect-arrays with tunable (varactor-tuned) resonators & Adjustable reflection phase\
Large intelligent surface & Active contiguous surface for transmission and reception & Gains compared to massive MIMO   \
Software-controlled hypersurface & Meta-surfaces equipped with IoT gateways & Wave absorption, polarization, and steering\
\hline
\end{tabularx}


\end{document}
Mico
  • 506,678
