Reference: My question which was answered by Dr. Christian Feuersänger Link to the question.. This is a follow-up question.

The MWE (Provided by Dr. Christian Feuersänger in his answer)

\documentclass{standalone}
 \usepackage{pgfplotstable}
\begin{document}

\pgfplotstabletypeset[
  col sep=comma,
  columns/col1/.style={string type,column type=r},
  columns/col2/.style={string type,column type=l},
  columns/col3/.style={string type,column type=l},
  ]
{
    col1,col2,col3
    Col A,B,C
    The first column,E,F
}

\end{document}

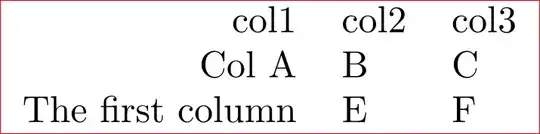

enter image description here

Question: How to get a table having only two columns with second column having the elements

col2/col3
B/C
E/F

In detail, the table should be like this:

    col1               col2/col3
    Col A              B/C
    The first column   E/F

How to get it using pgfplotstable?

Community
  • 1

1 Answers1

7

In order to create a new column based on existing ones, you have to define the new column somehow. This involves three steps:

  1. defining how the new column should be defined (i.e. define its content): create one use
  2. tell pgfplotstable that it should be part of the output (and at which position) : columns key
  3. modify the appearance options of the new column: column/<name>/.style={...}

enter image description here

\documentclass{standalone}
\usepackage{pgfplotstable}
\begin{document}

\pgfplotstabletypeset[
  col sep=comma,
  columns/col1/.style={string type,column type=r},
  columns/col2/.style={string type,column type=l},
  columns/col3/.style={string type,column type=l},
  columns/mixed/.style={string type,column type=l,column name={col2/col3}},
  columns={col1,mixed},
  create on use/mixed/.style={
    create col/assign/.code={%
        \edef\entry{\thisrow{col2}/\thisrow{col3}}%
        \pgfkeyslet{/pgfplots/table/create col/next content}\entry
    }
  },
  ]
{
    col1,col2,col3
    Col A,B,C
    The first column,E,F
}

\end{document}

The new lines are those which refer to mixed (which is my name for the new column).

The line columns={col1,mixed} tells pgfplotstable that which columns should be typeset (and in which order), i.e. it fulfills step (2).

The line columns/mixed/.style=... configures appearance options for column mixed (including its display name), i.e. it fulfills step (3).

Finally, the create on use/mixed/.style={...} statement defines how to create the new column (step (1). In our case, we provide a /.code fragment which uses two programming constructs to define the content: The line \edef\entry... means "define \entry to the expanded value in the braces (expanded def)". The \thisrow{colname} statement expands to the value of colname in the currently processed row (there is also \nextrow{colname} and \prevrow{colname} which operate in a similar way). Finally, \pgfkeyslet{.../next content}\entry writes the value of \entry into some value which is expected by the create col/assign method as output.
