I want to display 3 figures as shown on the picture: 2 in the same column and the third one on the right column. My document isnt in columns.

I tried things with subfigure, but i only achieved to place 2 figures in a same rowenter image description here

Baptiste
  • 1
  • Welcome to TeX:SE! Please show us, what you try so far. DO this figures has (sub)captions)? Try to insert them in two consecutive minipages. – Zarko Feb 15 '22 at 17:16
  • 1
    See if https://tex.stackexchange.com/questions/66955/placing-subfigures-vertically?noredirect=1&lq=1 helps. – Torbjørn T. Feb 15 '22 at 18:17

1 Answers1

1

Try this code:

\documentclass{book}

\usepackage{graphicx}


\usepackage{lipsum,mwe}
\begin{document}
    \lipsum[1]\
        \begin{table}[h!]
        \caption{Table with 3 graphs}


    \begin{tabular}{l l}

        \parbox{2in}{\includegraphics[width=2in,height=1in]{image-a}\\ \includegraphics[width=2in,height=1in]{image-b}} &\parbox{2in}{\includegraphics[width=2in,height=2in]{image-c}}\\

    \end{tabular}
\end{table}




\end{document}

The output:

enter image description here

EDIT:

If you want captions below each subfigure consider this modified code:

\documentclass{book}

\usepackage{graphicx}


\usepackage{lipsum,mwe}
\begin{document}
    \lipsum[1]\
        \begin{table}[h!]
            \begin{center}
                \caption{Table with 3 graphs}
                \begin{tabular}{l l}
                    \parbox{2in}{\includegraphics[width=2in,height=1in]{image-a}\ (a) sinus graph\ \includegraphics[width=2in,height=1in]{image-b}\(b)cosinus graph} &\parbox{2in}{\includegraphics[width=2in,height=2.2in]{image-c}\ (c) tangent graph}\
                \end{tabular}
            \end{center}
        \end{table}
\end{document}

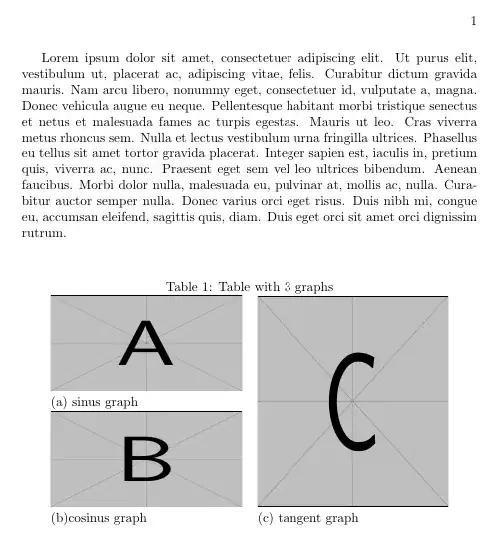

and his output:

enter image description here
