how to draw this 3D kinematics diagram

Question

i need some help to complete a 3d kinematic diagram (see attached image)

I know how to draw almost everything but I would like to find a clean solution to draw the contact planes on each side of the 3 balls. I drew the two plans for the top ball (easy to calculate!), I can calculate the others, but is there a Tikz or pgf solution that will automate the calculation.

\documentclass[10pt,a4paper]{standalone}
\usepackage{tikz}
 \usetikzlibrary{3d,calc,positioning}
\begin{document}
\begin{tikzpicture}
 [z={(-0.866cm,-0.5cm)}, x={(0.866cm,-0.5cm)}, y={(0cm,1cm)}, scale=2]
  \draw[->,red] (0,0,0) --  (3,0,0) node[above]{x};
  \draw[->,blue] (0,0,0) --  (0,3,0) node[left]{y};

  \draw[->,black] (0,0,0) --  (0,0,3) node[above]{z};
\foreach \aa/\nn in {90/1,-30/2,-150/3}{
\draw (0,0,0) coordinate(O) circle (1.5);
\node[circle,draw,fill=blue,minimum size=1.4cm] (Ca\nn) at ({1.5cos(\aa)},{1.5sin(\aa)},0){};
\draw[dashed] (Ca\nn) -- (O);
\draw[thick,red] (Ca\nn) --++(0,0,1.8) coordinate(B\nn)-- ($(O)+(0,0,1.8)$)-- ++(0,0,1);
\draw[thick,green] (Ca\nn) --++(0,0,-1.8) coordinate(B\nn)-- ($(O)+(0,0,-1.8)$)-- ++(0,0,-1);
}
\begin{scope}[shift={(Ca1)}]
\path[thick,red] (0,0.5,-0.5) -- ++({0.5cos(15)},0,{-0.5sin(15)})coordinate(a1)--++({-cos(15)},0,{+sin(15)})coordinate(a2);
\path[thick,red] (0,-0.5,-0.5) -- ++({0.5cos(15)},0,{-0.5sin(15)})coordinate(a3)--++({-cos(15)},0,{+sin(15)})coordinate(a4);
\draw[fill=green,opacity=0.5] (a1) -- (a3) -- (a4) -- (a2) -- cycle;
\node[circle,draw,fill=blue,minimum size=1.4cm] at (Ca1){};
\path[thick,red] (0,0.5,0.5) -- ++({0.5cos(15)},0,{-0.5sin(15)})coordinate(a1)--++({-cos(15)},0,{+sin(15)})coordinate(a2);
\path[thick,red] (0,-0.5,0.5) -- ++({0.5cos(15)},0,{-0.5sin(15)})coordinate(a3)--++({-cos(15)},0,{+sin(15)})coordinate(a4);
\draw[fill=red,opacity=0.5] (a1) -- (a3) -- (a4) -- (a2) -- cycle;
\draw[->] (Ca1) --++ ({1.5sin(15)},0,{1.5cos(15)})node[right]{na1};
\end{scope}
%
%  \begin{scope}[canvas is xy plane at z=0]
%
%
%
%      \draw[blue,shift={(1.5,0)}] (0,0) -- (1,0)--(1,1)--(0,1)--cycle;
%      \draw[blue,shift={(3,0)}] (0,0) -- (1,0)--(1,1)--(0,1)--cycle;
%  \end{scope}
\end{tikzpicture}
\end{document}

Something looks wrong - it is like there is much more space between the plates than the ball. Is the plates not to touch the ball!? — hpekristiansen, Feb 18 '22 at 16:13

hpekristiansen · Answer 1 · 2022-02-18T18:18:24.693

I did not want to spend time understanding your calculations, so I started over - hope your can use it:

\documentclass[tikz, border=1cm]{standalone}
\usetikzlibrary{3d}
\tikzset{viewport/.style 2 args={
    z={({cos(-#1)*1cm},{sin(-#1)*sin(#2)*1cm})},
    x={({-sin(-#1)*1cm},{cos(-#1)*sin(#2)*1cm})},
    y={(0,{cos(#2)*1cm})}
}}
\begin{document}
\begin{tikzpicture}[viewport={135}{40}] %[z={(-0.866cm,-0.5cm)}, x={(0.866cm,-0.5cm)}, y={(0cm,1cm)}]
\draw[->, red] (0,0,0) -- (4,0,0) node[above]{x};
\draw[->, blue] (0,0,0) -- (0,4,0) node[left]{y};
\draw[->, black] (0,0,0) -- (0,0,4) node[above]{z};
\foreach \angle in {90,210,330}
  \draw[green, thick] ([shift={(0,0,-0.5)}] \angle:2) -- ([shift={(0,0,-2.5)}] \angle:2) -- (0,0,-2.5) -- (0,0,-3.5);
\begin{scope}[canvas is xy plane at z=-0.5]
\foreach \angle in {90,210,330}
  \draw[fill=green, opacity=0.5, shift={(\angle:2)}] (-0.6,-0.6) rectangle (0.6,0.6);
\end{scope}
\begin{scope}[canvas is xy plane at z=0]
\draw (0,0) circle[radius=2];
\foreach \angle in {90,210,330}{
  \draw[dashed]  (0,0) -- (\angle:2);
  \node[circle, draw, fill=blue, minimum size=1cm] at (\angle:2) {};
}
\end{scope}
\begin{scope}[canvas is xy plane at z=0.5]
\foreach \angle in {90,210,330}
  \draw[fill=red, opacity=0.5, shift={(\angle:2)}] (-0.6,-0.6) rectangle (0.6,0.6);
\end{scope}
\foreach \angle in {90,210,330}
  \draw[red, thick] ([shift={(0,0,0.5)}] \angle:2) -- ([shift={(0,0,2.5)}] \angle:2) -- (0,0,2.5) -- (0,0,3.5);
\end{tikzpicture}
\end{document}

viewport={135}{40}

viewport={155}{20}

viewport is adapted from here: https://tex.stackexchange.com/a/199715/8650 where it is used in another context for another reason. You do not need it, and can just set x, y and z unit vectors explicitly if you wish.

Edit:

Here I use tikz-3dplot to rotate the planes 15 deg. I had to use the std. coordinate system with z-axis pointing up, but the labels can be changed:

\documentclass[tikz, border=1cm]{standalone}
\usepackage{tikz-3dplot}
\begin{document}
\tdplotsetmaincoords{60}{130}
\begin{tikzpicture}[tdplot_main_coords]
\newcommand{\rw}{0.6}
\draw[->, red] (0,0,0) -- (4,0,0) node[above]{x};
\draw[->, blue] (0,0,0) -- (0,4,0) node[above]{y};
\draw[->, black] (0,0,0) -- (0,0,4) node[above]{z};
\begin{scope}[canvas is yz plane at x=0]
\draw (0,0) circle[radius=2];
\end{scope}
\foreach \point in {(0,{2*cos(90)},{2*sin(90)}) , (0,{2*cos(210)},{2*sin(210)}) , (0,{2*cos(330)},{2*sin(330)}) }{
\draw[dashed]  (0,0,0) -- \point;
\tdplotsetrotatedcoordsorigin{\point}
\tdplotsetrotatedcoords{0}{0}{15}
\draw[fill=green, opacity=0.5, tdplot_rotated_coords] (-0.5,-\rw,-\rw) -- (-0.5,-\rw,\rw) -- (-0.5,\rw,\rw) -- (-0.5,\rw,-\rw) -- cycle;
\node[circle, draw, fill=blue, minimum size=1cm] at \point {};
\draw[->, shift={\point}] (0.5,0,0) -- (2,0,0);
\draw[->, tdplot_rotated_coords] (0.5,0,0) -- (2,0,0);
\draw[fill=red, opacity=0.5, tdplot_rotated_coords] (0.5,-\rw,-\rw) -- (0.5,-\rw,\rw) -- (0.5,\rw,\rw) -- (0.5,\rw,-\rw) -- cycle;
}
\end{tikzpicture}
\end{document}

Seen from top \tdplotsetmaincoords{0}{0}

merci but the planes are not perpendicular to z, but inclined by 15° around the axis passing through the center. — rpapa, Feb 18 '22 at 16:37
Correct the order in which the elements are drawn - the ring should not be behind everything like in the code or in front like my picture. Draw green planes first, then ring and lastly red planes. — hpekristiansen, Feb 18 '22 at 19:23
Thanks, but that's not quite it yet, if the foreground revolves around y (actually ua), the others revolve around ub and uc respectively. That's what I have a problem with, this double rotation. — rpapa, Feb 19 '22 at 09:34
Do one ball at a time and change \tdplotsetrotatedcoords{0}{0}{15} to \tdplotsetrotatedcoords{0}{15}{0} or \tdplotsetrotatedcoords{15}{0}{0}. I can not do it as you do not supply a picture of desired result - or the picture is so bad I do not understand it. — hpekristiansen, Feb 19 '22 at 13:25

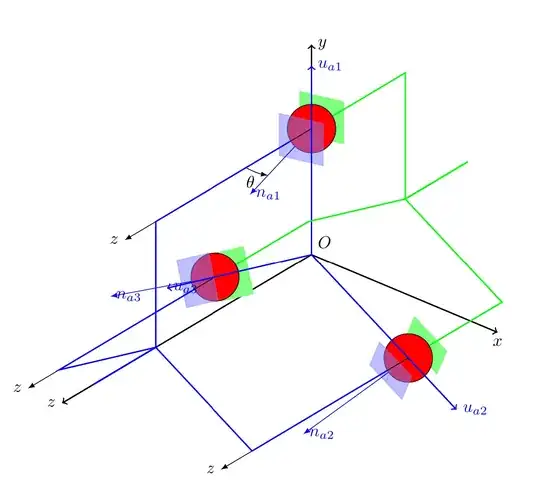

I added a 3d cad model to better explain the orientation of the planes — rpapa, Feb 19 '22 at 18:09
