As it is well known, some tex projects need to be compiled several times to get things done.

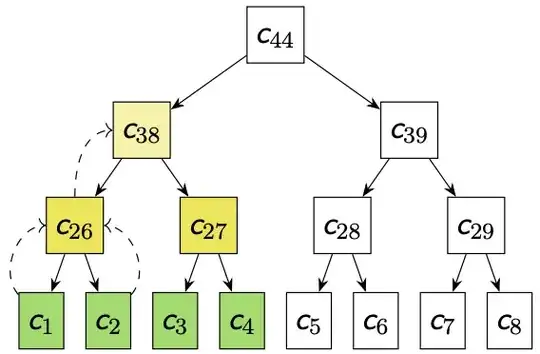

I have this case with the forest package where the output is as expected at the first compilation.

enter image description here

However, I need to run the compilation command more than once as the rest of my slides have references, for instance.

The problem is that the frame became a pretty mess after two or more compilations. Besides, the figure is fixed after I delete the .aux files.

enter image description here

I'm using lualatex v1.13, but the problem remains with other compilers. Does anyone knows what is the problem here?

\documentclass[notes,11pt, aspectratio=169]{beamer}

\usepackage{tikz} \usepackage{forest}

\usetikzlibrary{overlay-beamer-styles} \usetikzlibrary{snakes, arrows, fit, arrows.meta}

\tikzset{ every picture/.style={remember picture,baseline}, alt/.code args={<#1>#2#3}{% \alt<#1>{\pgfkeysalso{#2}}{\pgfkeysalso{#3}} }, temporal/.code args={<#1>#2#3#4}{% \temporal<#1>{\pgfkeysalso{#2}}{\pgfkeysalso{#3}}{\pgfkeysalso{#4}} }, onslide/.code args={<#1>#2}{% \only<#1>{\pgfkeysalso{#2}} } }

\begin{document} \begin{frame}{Test} \begin{forest} for tree={ treenode/.style = {draw,align=center, inner sep=3pt, text centered, font=\sffamily}, arn_n/.style = {treenode, rectangle}, arn_x/.style = {treenode}, gray-arrow/.style = {draw=gray}, edge=-{Stealth}} [$c_{44}$, arn_n, [$c_{38}$, arn_n, temporal=<2>{fill=yellow}{fill=yellow!50}{fill=yellow!25}, name=c38, [$c_{26}$, arn_n, temporal=<2>{fill=green}{fill=yellow}{fill=yellow!50}, name=c26, [$c_{1}$, arn_x, temporal=<2>{}{fill=green}{}, name=c1], [$c_{2}$, arn_x, temporal=<2>{}{fill=green}{}, name=c2 ] ], [$c_{27}$, arn_n, temporal=<2>{fill=green}{fill=yellow}{fill=yellow!50}, [$c_{3}$, arn_x, temporal=<2>{}{fill=green}{}], [$c_{4}$, arn_x, temporal=<2>{}{fill=green}{} ] ] ], [$c_{39}$, arn_n, [$c_{28}$, arn_n, [$c_{5}$, arn_x], [$c_{6}$, arn_x] ], [$c_{29}$, arn_n, [$c_{7}$, arn_x], [$c_{8}$, arn_x] ] ] ] \draw[->, dashed] (c1) to[out=north west, in=west] (c26); \draw[->, dashed] (c2) to[out=north east, in=east] (c26); \draw[->, dashed] (c26) to[out=north, in=west] (c38); \end{forest} \end{frame} \end{document}

  • 2
    It seems to be related to remember picture at least, remove that and it works fine. Beyond that, I have no idea though .. – Torbjørn T. Apr 03 '22 at 17:29
  • @TorbjørnT. Thanks. I was unaware that the remember picture was useless in my slides (newbie here!)... While it solved my question, I'm curious to know what was affecting it! – José Joaquim Apr 03 '22 at 17:49
  • 1
    remeber picture is tikz instruction which need that document should be compiled at least twice (simplified: at first image coordinates are stored in .aux` file, at second are correct establish on image). – Zarko Apr 03 '22 at 18:34
  • Normally forest cleans away its coordinates etc. (unless you tell it not to). I'm guessing the tikz storage is interfering and you're getting multiple things floating around with the same identifiers, but I don't know. – cfr Aug 09 '23 at 00:59
