Add ports for flipflop in Circuitikz

Question

I've got this so far:

\begin{circuitikz}
\node[flipflop D] (D) at (2,0) {};
\node[flipflop T] (T) at (6,0) {};
\node[flipflop JK] (JK) at (10,0) {};
\draw[SkyBlue] (D.pin 4) -| (3.8,0) |- (T.pin 1);
\draw[SkyBlue] (T.pin 6) -- (JK.pin 1);
\draw[OliveGreen] (D.pin 6) -| (3.5,-1.5) -| (JK.pin 3);
\draw (JK.pin 6) -- ++(1, 0)node[right] {$Q_4$};
\draw (D.pin 1) -- ++(-1, 0)node[left] {D};
\draw (0,-2) node[left] {$clock$} -- (0.5,-2) node[circ] (clk1) {};
\draw (clk1) -- (4,-2) node[circ] (clk2) {};
\draw (clk2) -- (8,-2) |- (JK.pin 2);
\draw (clk1) |- (D.pin 3);
\draw (clk2) |- (T.pin 3);
\end{circuitikz}

How do I add the preset and clear?

ETA: Figured it out:

    \draw (0,-3) node[left] {$clear$} -| (D.bdown)node[ocirc,below]{};
\draw (0,2) node[left] {$preset$} -| (D.bup)node[ocirc,above]{};

Since you have some responses below that seem to answer your question, please consider marking one of them as ‘Accepted’ by clicking on the tickmark below their vote count (see How do you accept an answer?). This shows which answer helped you most, and it assigns reputation points to the author of the answer (and to you!). It's part of this site's idea to identify good questions and answers through upvotes and acceptance of answers. — Rmano, Apr 20 '22 at 08:12

score 10 · Answer 1 · answered Apr 06 '22 at 18:34

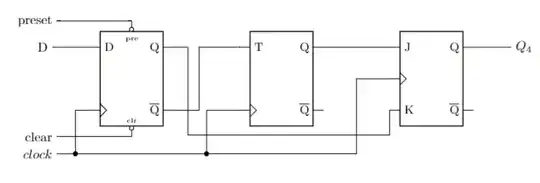

You may define a custom flip-flop with preset and clear.

\documentclass{article}
\usepackage{circuitikz}
%---------------------------------------------------
\tikzset{flipflop DMod/.style={flipflop,
    flipflop def={t1=D, t6=Q, t4={\ctikztextnot{Q}},
        tu=pre, nu=1, td=clr, nd=1, c3=1},
}}
%---------------------------------------------------
\begin{document}
\begin{circuitikz}
\node[flipflop DMod] (D) at (2,0) {};
\node[flipflop T] (T) at (6,0) {};
\node[flipflop JK] (JK) at (10,0) {};
\draw (D.pin 4) -| (3.8,0) |- (T.pin 1);
\draw (T.pin 6) -- (JK.pin 1);
\draw (D.pin 6) -| (3.5,-1.5) -| (JK.pin 3);
\draw (JK.pin 6) -- ++(1, 0)node[right] {$Q_4$};
\draw (D.pin 1) -- ++(-1, 0)node[left] {D};
\draw (0,-2) node[left] {$clock$} -- (0.5,-2) node[circ] (clk1) {};
\draw (clk1) -- (4,-2) node[circ] (clk2) {};
\draw (clk2) -- (8,-2) |- (JK.pin 2);
\draw (clk1) |- (D.pin 3);
\draw (clk2) |- (T.pin 3);
\draw (D.up) |- ++(-2, 0)node[left] {preset}; %--> added
\draw (D.down) |- ++(-2, 0)node[left] {clear}; %--> added
\end{circuitikz}
\end{document}

To add to @Imran's excellent answer, I just want to point out that section 3.25 of the manual on page 127 describes what all those nu, td, nd, etc are. 2 pages later, in section 3.25.1, there is a very good example. (Valid for version 1.3.0 of the manual) — Bill Nace, Apr 07 '22 at 02:46
