I want to draw certain shapes inside a set of concentric circles. I have been able to draw the concentric circles. My current MWE is:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{tikz}
\usetikzlibrary{decorations.text,calc,arrows.meta}
\usetikzlibrary{positioning}
% Color Define
\definecolor{magenta}{HTML}{FF00FF}
\definecolor{brass}{rgb}{0.71, 0.65, 0.26}
\begin{document}
\begin{figure}
\centering
\begin{tikzpicture}[line width=0.5mm]
\coordinate (O) at (0,0);
\draw[magenta] (O) circle (6.5);
\draw[magenta] (O) circle (4.8);
\draw[magenta] (O) circle (2.3);
\draw[brass,dashed]  (O) circle (1.1);
\draw[red] (O) circle (0.35);
\end{tikzpicture}
\end{figure}
\end{document}

This provides [not drawn to scale]:

enter image description here

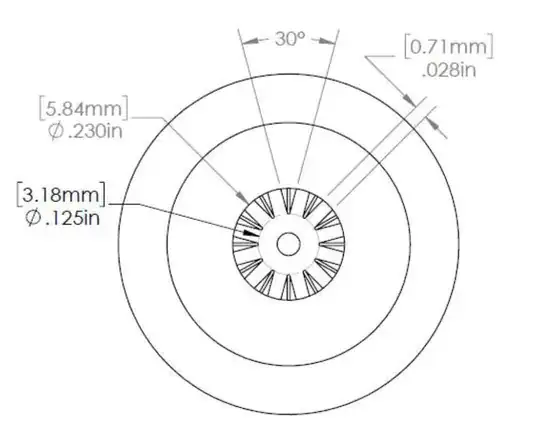

The desired output is as follow, basically how to draw those shapes inside the circle and show the dimensions:

enter image description here

Appreciate your suggestions and insights in advance.

Rahman
  • 189
  • It is not an answer but the difference in the difficulty seems to be similar as in the first picture of this page: https://glebbahmutov.com/blog/how-to-draw-an-owl/ ;-) – Przemysław Scherwentke Apr 23 '22 at 07:11
  • See links given here: https://tex.stackexchange.com/questions/405285/technical-drawing-in-latex ; which includes this tutorial http://www.ursoswald.ch/metapost/tutorial.html ; see also https://tex.stackexchange.com/questions/14901/dimensioning-of-a-technical-drawing-in-tikz. // Found via searchterms: tikz technical drawing . – MS-SPO Apr 23 '22 at 07:14
  • Thanks. I'll check'em out. – Rahman Apr 24 '22 at 08:12

1 Answers1

1

enter image description here

Some comments The figure you want to obtain has a rotational symmetry which asks for a loop based on 30, 60, ... degrees. Moreover, the points on which the 12 "triangles" are constructed live on an unseen circle which is drawn in red in the figure above. You can set the radius of this circle by modifying the parameter \r-0. The point corresponding to the vertical "triangle" is especially important in the construction of the label $30^\circ$.

The code

\documentclass[11pt, border=.8cm]{standalone}
\usepackage{tikz}
\usetikzlibrary{calc, math, arrows.meta}

\begin{document}
\tikzset{
  c arc/.style args={#1:#2:#3}{insert path={++(#1:#3) arc (#1:#2:#3)}},
}
\tikzmath{
  real \r-0, \r0, \r1, \R, \eps;
  \r-0 = 0.46;
  \r0 = 1.1;
  \r1 = 1.25;
  \R = 2.30;
  \eps = .01;
}
\begin{tikzpicture}[scale=2]
  \draw[thick] (0, 0) circle (\r-0);
  \draw[red!50, very thin] (0, 0) circle (\r0);
  \draw[gray] (0, 0) circle (\r1);
  \draw[thick] (0, 0) circle (\R);
  \draw[thick] (0, 0) circle (2.1\R);
  \draw[thick] (0, 0) circle (3\R);
  \foreach \a in {0, 30, ..., 330}{%
    \draw[thick] (\a: \r0) ++(\a -15: \r1 -\r0) -- ++(\a: \R -\r1);
    \draw[thick] (\a: \r0) ++(\a -15: \r1 -\r0) -- ++(\a -15: \R -\r1 +\eps);
    \draw[thick] (\a: \r0) ++(\a +15: \r1 -\r0) -- ++(\a: \R -\r1);
    \draw[thick] (\a: \r0) ++(\a +15: \r1 -\r0) -- ++(\a +15: \R -\r1 +\eps);
  }


%% label 30 degrees
  \draw[gray] (90: \r0) ++(90 -15: \R -\r0 +.3) -- ++(90 -15: 2.5\R);
  \draw[gray] (90: \r0) ++(90 +15: \R -\r0 +.3) -- ++(90 +15: 2.5\R);
  \draw[very thin, arrows={Latex[length=5]-Latex[length=5]}]
  (90: \r0) [c arc={90 -15}: {90 +15}: {3*\R}]
  node[pos=.5, above] {$30^\circ$};
\end{tikzpicture}
\end{document}
Daniel N
  • 5,687
