This is a fairly nice solution to double-underlines for matrices and single-underline for vectors:

\def\mat#1{\underline{\underline{#1}}}

\def\v#1{\underline{#1}}

However, it doesn’t work well when you have multiple matrices or vectors in a row, since it underlines them all continuously:

\mat{X}\mat{X}\mat{Y}

\v{X}\v{X}\v{Y}

enter image description here

How do I get the above kluge to treat the matrix/vector elements as separate?

I understand that potentially may have to use different solutions/macros instead of the basic \underline.

puf
  • 57
  • 1
    Do you really want to use a very old-fashioned notation? – egreg Jun 27 '22 at 19:49
  • Is there no easy solution other than going to double-overline (which, I also do not know if it has an easy/clean solution either). – puf Jun 27 '22 at 19:56
  • @egreg: don't you get a sense of deja vu? :-) The duplicate I found started with you asking basically the same question in the comment and then providing an answer... – Willie Wong Jun 27 '22 at 20:18
  • Thanks to both :) I am using google keywords of vectors and matrices; I did not find that answer using these keywords :( – puf Jun 27 '22 at 20:28

1 Answers1

5

I still think that underlining is evil and really old-fashioned notation.

Anyway, here's a working solution.

\documentclass{article}
\usepackage{amsmath}

\makeatletter
% overline
\newcommand{\dbloverline}[1]{\overline{\dbl@overline{#1}}}
\newcommand{\dbl@overline}[1]{\mathpalette\dbl@@overline{#1}}
\newcommand{\dbl@@overline}[2]{%
  \begingroup
  \sbox\z@{$\m@th#1\overline{#2}$}%
  \ht\z@=\dimexpr\ht\z@-2\dbl@adjust{#1}\relax
  \box\z@
  \ifx#1\scriptstyle\kern-\scriptspace\else
  \ifx#1\scriptscriptstyle\kern-\scriptspace\fi\fi
  \endgroup
}
% underline
\newcommand{\dblunderline}[1]{@@underline{\dbl@underline{#1}}}
\newcommand{\dbl@underline}[1]{\mathpalette\dbl@@underline{#1}}
\newcommand{\dbl@@underline}[2]{%
  \begingroup
  \sbox\z@{$\m@th#1@@underline{#2}$}%
  \dp\z@=\dimexpr\dp\z@-2\dbl@adjust{#1}\relax
  \box\z@
  \ifx#1\scriptstyle\kern-\scriptspace\else
  \ifx#1\scriptscriptstyle\kern-\scriptspace\fi\fi
  \endgroup
}
\newcommand{\dbl@adjust}[1]{%
  \fontdimen8
  \ifx#1\displaystyle\textfont\else
  \ifx#1\textstyle\textfont\else
  \ifx#1\scriptstyle\scriptfont\else
  \scriptscriptfont\fi\fi\fi 3
}
\makeatother


% vectors and matrices
\renewcommand{\vec}[1]{{%
  \mspace{0.5mu}%
  \underline{\mspace{-0.5mu}#1_{}\kern-\scriptspace\mspace{-0.5mu}}%
  \mspace{0.5mu}%
  \mathcorr{#1}%
}}
\newcommand{\mat}[1]{{%
  \mspace{0.5mu}%
  \dblunderline{\mspace{-0.5mu}#1_{}\kern-\scriptspace\mspace{-0.5mu}}%
  \mspace{0.5mu}%
  \mathcorr{#1}%
}}
\makeatletter
\newcommand{\mathcorr}[1]{\mathpalette\math@corr{#1}}
\newcommand{\math@corr}[2]{%
  \begingroup
  \sbox\z@{$\m@th#1#2$}\sbox2{$\m@th#1#2_{}\kern-\scriptspace$}%
  \kern\dimexpr\wd\z@-\wd\tw@\relax
  \endgroup
}
\makeatother


\begin{document}


\begin{gather}
\mat{X}\mat{X}\mat{Y}^2
\
\vec{X}\vec{X}\vec{f}
\
F(\vec{v})
\
3\vec{\mathrm{i}}+2\vec{\mathrm{j}}-\vec{\mathrm{k}}
\end{gather}


\end{document}

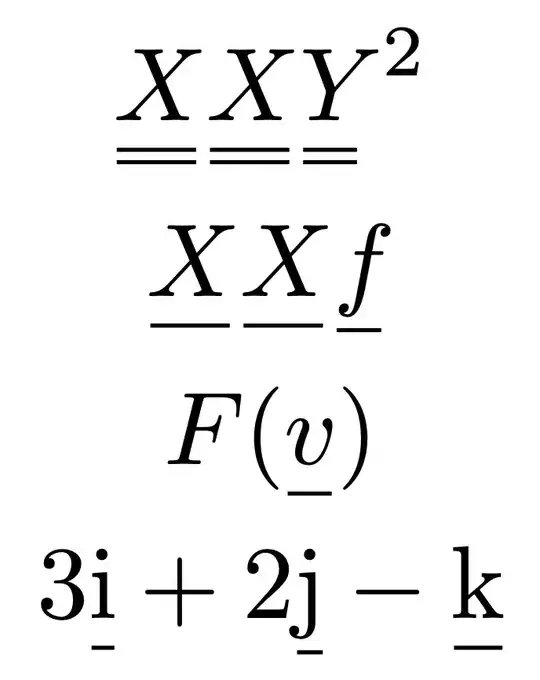

enter image description here

The idea is to

  1. remove the italic correction inserted after the letter
  2. underline a smaller part of the letter
  3. add the same space around
  4. reinstate the italic correction
  5. using a more compact version of double underlining

Bits of code from

https://tex.stackexchange.com/a/452094/4427

https://tex.stackexchange.com/a/71065/4427

egreg
  • 1,121,712
  • Thanks so much @egreg ! I like the notation in handwriting, when it is hard to bold; in use in formal latex, perhaps it is not the most suitable / appropriate :) – puf Jun 27 '22 at 20:29
