I'm trying to add a table with gradient cell shading using the example from Gradient color in one cell of a table
My sample document looks like this:
\documentclass[a4paper,twoside,11pt]{article}
%\input{tla.tex}
\usepackage{mathtext}
\usepackage[cp1251]{inputenc}
\usepackage[english,russian]{babel}
\usepackage{fancyhdr}
%\usepackage{newprog1e}
\usepackage{amsfonts,amsmath,amssymb,amsthm}
\usepackage{icomma}
\usepackage{bm}
%\newcommand{\defeq}{%
% \mathrel{\vbox{\offinterlineskip\ialign{%
% \hfil##\hfil\cr
% $\scriptscriptstyle\triangle$\cr
% %\noalign{\kern0ex}
% $=$\cr
%}}}}
\usepackage{float}
\usepackage{cmap}
%%% Работа с картинками
\usepackage{graphicx} % Для вставки рисунков
\graphicspath{{images/}}% папки с картинками
\setlength\fboxsep{3pt} % Отступ рамки \fbox{} от рисунка
\setlength\fboxrule{1pt} % Толщина линий рамки \fbox{}
\usepackage{wrapfig} % Обтекание рисунков текстом
\usepackage{subcaption}
%%% Работа с таблицами
\usepackage{array,tabularx,tabulary,booktabs} % Дополнительная работа с таблицами
\usepackage{longtable} % Длинные таблицы
\usepackage{multirow} % Слияние строк в таблице
\usepackage{paralist}
\usepackage%[labelfont=bf]%
{caption}
\captionsetup[table]{labelsep=space, justification=raggedright}
\usepackage[ligature, inference]{semantic}
\usepackage{fixltx2e}
\usepackage{xcolor}
\def\SPSB#1#2{\rlap{\textsuperscript{\textcolor{red}{#1}}}\SB{#2}}
\def\SP#1{\textsuperscript{\textcolor{black}{#1}}}
\def\SB#1{\textsubscript{\textcolor{black}{#1}}}
\usepackage{pdflscape}
\def\labelitemi{--}
%\usepackage{geometry}
\usepackage{listings}
\definecolor{textblue}{rgb}{.2,.2,.7}
\definecolor{textred}{rgb}{0.54,0,0}
\definecolor{textgreen}{rgb}{0,0.43,0}
\lstset{language=SQL,
numbers=left,
numberstyle=\tiny,
stepnumber=1,
numbersep=-.5cm,
tabsize=4,
basicstyle=\ttfamily,
keywordstyle=\color{textblue},
commentstyle=\color{textred},
stringstyle=\color{textgreen},
frame=none,
columns=fullflexible,
keepspaces=true,
xleftmargin=\parskip,
showstringspaces=false}
\usepackage{tikz}
\usepackage{subcaption}
\renewcommand\thesubfigure{\asbuk{subfigure}}
\newenvironment{errortrace}
{\ttfamily\list{}{\leftmargin=1em\itemindent=-1em\parsep=\parskip}%
\catcode\.=\active \begingroup\lccode~=`.
\lowercase{\endgroup\def~}{.\penalty0 }%
\obeylines\raggedright\item\relax}
{\endlist}
\tolerance=1000
\newcommand{\defi}{\stackrel{\mathrm{def}}{=}}
\numberwithin{equation}{section}
\newtheorem{theorem}{Теорема}
\newtheorem{definition}{Определение}[section]
\newtheorem{lemma}{Лемма}[section]
%\newtheorem{theorem_ru}{Теорема}
\newtheorem{hypothesis}{Предположение}[section]
\newtheorem{assertion}{Утверждение}[section]
% tabular cell shadings start
\makeatletter
\tikzset{%
remember picture with id/.style={%
remember picture,
overlay,
save picture id=#1,
},
save picture id/.code={%
\edef\pgf@temp{#1}%
\immediate\write\pgfutil@auxout{%
\noexpand\savepointas{\pgf@temp}{\pgfpictureid}}%
},
if picture id/.code args={#1#2#3}{%
@ifundefined{save@pt@#1}{%
\pgfkeysalso{#3}%
}{
\pgfkeysalso{#2}%
}
}
}
\def\savepointas#1#2{%
\expandafter\gdef\csname save@pt@#1\endcsname{#2}%
}
\def\tmk@labeldef#1,#2@nil{%
\def\tmk@label{#1}%
\def\tmk@def{#2}%
}
\tikzdeclarecoordinatesystem{pic}{%
\pgfutil@in@,{#1}%
\ifpgfutil@in@%
\tmk@labeldef#1@nil
\else
\tmk@labeldef#1,(0pt,0pt)@nil
\fi
@ifundefined{save@pt@\tmk@label}{%
\tikz@scan@one@point\pgfutil@firstofone\tmk@def
}{%
\pgfsys@getposition{\csname save@pt@\tmk@label\endcsname}\save@orig@pic%
\pgfsys@getposition{\pgfpictureid}\save@this@pic%
\pgf@process{\pgfpointorigin\save@this@pic}%
\pgf@xa=\pgf@x
\pgf@ya=\pgf@y
\pgf@process{\pgfpointorigin\save@orig@pic}%
\advance\pgf@x by -\pgf@xa
\advance\pgf@y by -\pgf@ya
}%
}
\newcommand\tikzmark[2][]{%
\tikz[remember picture with id=#2] {#1;}}
\makeatother
% end of Andrew's code
\newcommand\ShadeCell[4][0pt]{%
\begin{tikzpicture}[overlay,remember picture]%
\shade[#4] ( $ (pic cs:#2) + (0pt,2ex) $ ) rectangle ( $ (pic cs:#3) +
(0pt,-#1*\baselineskip-.8ex) $ );
\end{tikzpicture}%
}%
% tabular cell shadings end
\begin{document}
\ShadeCell{start1}{end1}{left color=green!20,right color=green!20}
\ShadeCell{start2}{end2}{left color=green!20,right color=green!20}
\ShadeCell{start3}{end3}{left color=green!20,right color=red!20}
\ShadeCell{start4}{end4}{left color=green!20,right color=green!20}
\ShadeCell{start5}{end5}{left color=green!20,right color=red!20}
\ShadeCell{start6}{end6}{left color=red!20,right color=red!20}
\ShadeCell{start7}{end7}{left color=green!20,right color=green!20}
\ShadeCell{start8}{end8}{left color=green!20,right color=red!20}
\ShadeCell{start9}{end9}{left color=red!20,right color=red!20}
\begin{table}[h!]
\centering
\captionsetup{justification=raggedleft, singlelinecheck=false}
\caption{Практическая реализация требований}
\begin{tabular}{
>{\raggedright\arraybackslash}m{3.5cm}|
>{\centering\arraybackslash}m{1.8cm}|
>{\centering\arraybackslash}m{1.8cm}|
>{\centering\arraybackslash}m{1.8cm}}
%&&&&\[.1em]
&\centering Физический уровень & \centering Системный уровень & \centering
Уровень СПО \tabularnewline [2.5ex]
\hline
&&& \ [.1em]
Контроль ''легальных'' траекторий и сред распространения
& \multicolumn{1}{!{\tikzmark{start1}} c !{\vrule\tikzmark{end1}}}{+} &
\multicolumn{1}{!{\tikzmark{start2}} c !{\vrule\tikzmark{end2}}}{+} &
\multicolumn{1}{!{\tikzmark{start3}} c !{\tikzmark{end3}}}{ $ \pm $} \ [4ex]
\hline
&&& \ [.1em]
Контроль скрытых каналов
& \multicolumn{1}{!{\tikzmark{start4}} c !{\vrule\tikzmark{end4}}}{+} &
\multicolumn{1}{!{\tikzmark{start5}} c !{\vrule\tikzmark{end5}}}{$ \pm $} &
\multicolumn{1}{!{\tikzmark{start6}} c !{\tikzmark{end6}}}{ -- } \ [4ex]
\hline
&&& \ [.1em]
Формальное доказательство эффективности механизмов ЗИ
& \multicolumn{1}{!{\tikzmark{start7}} c !{\vrule\tikzmark{end7}}}{+} &
\multicolumn{1}{!{\tikzmark{start8}} c !{\vrule\tikzmark{end8}}}{$ \pm $} &
\multicolumn{1}{!{\tikzmark{start9}} c !{\tikzmark{end9}}}{ -- } \
[4ex]
\end{tabular}
\label{table:1}
\end{table}
\end{document}
But it produces an error:
Runaway argument? (pic cs:start1) + (0pt,2ex) $ ) rectangle ( $ (pic cs:end1) + (0pt,-\ETC. ! Paragraph ended before \tikz@parse@calculator was complete.
\par l.199
I suspect you've forgotten a `}', causing me to apply this control sequence to too much text. How can we recover? My plan is to forget the whole thing and hope for the best. )

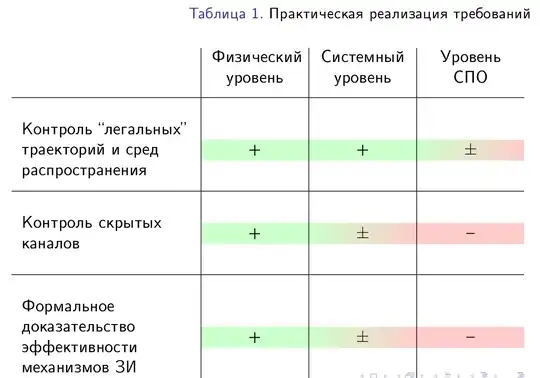

Similar code works fine in beamer.
Any help would be appreciated. Thanks. Alex.
