Drawing this figure using tikz

Question

I am interested in creating the following figure using TikZ, although I am really new to this "machinery".

Thanks to this old post, I managed to create the following

QUESTIONS:

1. How can I add all these little balls inside and around the shape?
2. How can I add the corresponding letter notation?
3. Is there a way that the color of the boundary can be changed?

Many many thanks in advance for the time and the help!

Answer 1

While you are waiting for some tikz-help, here is a version in Metapost making use of the two random number generators: uniformdeviate n and normaldeviate.

You should compile this with lualatex (or work out how to adapt it for plain MP):

\documentclass[border=5mm]{standalone}
\usepackage{luamplib}
\begin{document}
\mplibtextextlabel{enable}
\begin{mplibcode}
beginfig(1);
% make some nice colours
color orange, berry, claret, pine;
orange = 1/256(252, 128, 8);
berry = 1/256(70, 122, 168);
claret = 1/256(168, 75, 68);
pine = 1/256(74, 170, 122);
% define a roughly circular boundary
path boundary;
boundary = for i=0 upto 7: (50 + uniformdeviate 20) * dir (45i-30) .. endfor cycle;
% and draw it with a thick pen and in orange
draw boundary withpen pencircle scaled 3 withcolor orange;
% put 12 random green circles inside the boundary
for i=1 upto 12:
    path p; p = fullcircle scaled 4
        shifted (uniformdeviate 7/8)[origin, point uniformdeviate 8 of boundary];
    fill p withcolor pine; draw p;
endfor
% and now add n red/blue circles round the outside
numeric t, n, dt;
t = 0; n = 32; 2 dt = arclength boundary / n;
for i=1 upto n-1:
    t := t + 5/4 dt + 3/2 uniformdeviate dt;
    numeric a; a = arctime t of boundary;
    path p; p = fullcircle scaled 4
        shifted point a of boundary
        shifted 4 unitvector(direction a of boundary rotated -90);
    fill p withcolor if normaldeviate > 0: claret else: berry fi;
    draw p;
endfor
% add labels, the "-30" in the definition of boundary
% means that the 0 point is roughly bottom right
label.ulft("$\Omega$", point 0 of boundary);
label.lrt("$\Gamma$", point 0 of boundary) withcolor orange;
endfig;
\end{mplibcode}
\end{document}

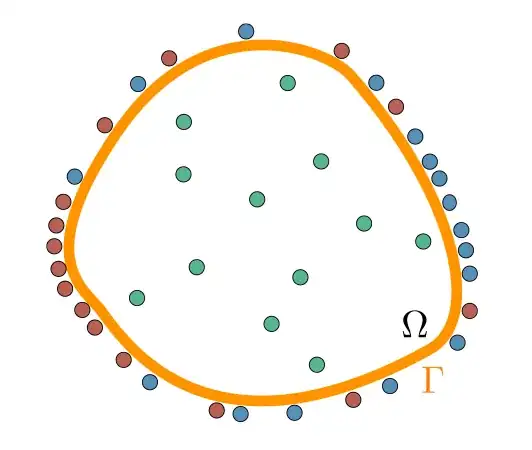

It will (of course) give you slightly different output each time you compile it, and as I did not put in any aesthetic checking for collisions you may need to compile it several times before you get a nice looking diagram.

You can find tutorials and reference material for Metapost by following the link at the top.

Notes

• uniformdeviate n returns a random number, uniformly distributed between 0 and n, where n is any valid MP number. The mean value returned will be roughly 1/2 n if you call it enough times.

• normaldeviate returns a random number that is normally distributed with mean = 0 and standard deviation = 1. Roughly half the numbers returned will be negative, and very few of them will be outside the range (-3, 3).

• The colours are defined as RGB colours. MP uses a tuple of three numbers to represent an RGB colour, and expects each of the three elements to be between 0 and 1. Any values less than 0 are clipped to 0 and any value > 1 are clipped to 1. So to represent the WebSafe colour #FF6633, you need first to make it into a decimal tuple (255, 102, 51), then reduce all the values to the range 0 to 1 instead of 0 to 255. You can do this simply by dividing the tuple by 255 like so (255, 102, 51)/255 or because MP supports fraction constants and implicit multiplication 1/255(255, 102, 51).

• If you prefer to use regular colours defined in your Latex doc, then using another bit of luamplib magic, you can still access them in a MP graphic. So if you have (say) \definecolor{mmm}{rgb}{.6, .3, .1} in your regular LaTeX preamble, then you could use this directly inside an mplibcode environment like this:

    draw boundary withcolor \mpcolor{mmm};
