I have the following table with 5 rows with a first column of text and 4 columns of data :

\newenvironment{mytable}[1][h!]{\begin{table}[#1]\centering\small}{\end{table}}

\begin{mytable} \begin{center} \begingroup \setlength{\tabcolsep}{3pt} % Default value: 6pt \renewcommand{\arraystretch}{1} % Default value: 1 \begin{tabular}{|c|c|c|c|c|} \hline \addstackgap{Redshift central bin} & 1.0 & 1.2 & 1.4 & 1.65 \ \hline \addstackgap{$\mathrm{d}N / \mathrm{d}\Omega\mathrm{d}z\left[\mathrm{deg}^{-2}\right]$} & 1815.0 & 1701.5 & 1410.0 & 940.97 \ \hline \addstackgap{$\Delta z$ : width of bin} & 0.2 & 0.2 & 0.2 & 0.3 \ \hline \addstackgap{$\rho_{gal}$,(gal.arcmin$^{-2}$}) & 0.1008 & 0.0945 & 0.0783 & 0.0784 \ \hline \addstackgap{$\rho_{gal,tot}$,(gal.arcmin$^{-2}$)} & \multicolumn{1}{c}{} 0.3521 & \multicolumn{1}{c}{} &
\multicolumn{1}{c}{} & \ \hline \end{tabular} \endgroup \end{center} \caption{Spectroscopic specifications from \citetalias{IST:paper1} with 4 bins} \label{density1} \end{mytable}\

Here is the rendering :

table

I would like to keep the same format excepted the fact that I should center the value 0.3521 on the last row, between the first and fourth column.

Could anyone see how to perform this centering ?

  • 1
    Your code doesn't compile, please read about Minimal Working Example and edit your post accordingly. Also, why is the last value (0.3521) outside the third argument of \multicolumn? – Miyase Oct 07 '22 at 18:06
  • Also, you're not actually making anything use multiple columns. The number which is the first argument determines that. The last cell should presumably just be \multicolumn{4}{c|}{0.3521} (without the empty cells and other multicolumn commands afterwards). – frabjous Oct 07 '22 at 18:09
  • [h!] you should not default h it usually is impossible to achieve and generates a warning that it is being changed to ht and you should not default ! as that is for ignoring the default constraints to over-ride the behaviour in special cases. Defaulting to ignoring the defaults is weird:-) – David Carlisle Oct 07 '22 at 20:00

2 Answers2

1

For information, here is the way to construct that table with nicematrix.

\documentclass{article}
\usepackage{nicematrix}

\begin{document}

\begin{table} \centering \renewcommand{\arraystretch}{1.4} \begin{NiceTabular}{ccccc}[hvlines] Redshift central bin & 1.0 & 1.2 & 1.4 & 1.65 \ $\mathrm{d}N / \mathrm{d}\Omega\mathrm{d}z\left[\mathrm{deg}^{-2}\right]$ & 1815.0 & 1701.5 & 1410.0 & 940.97 \ $\Delta z$ : width of bin & 0.2 & 0.2 & 0.2 & 0.3 \ $\rho_{gal}$,(gal.arcmin$^{-2}$) & 0.1008 & 0.0945 & 0.0783 & 0.0784 \ $\rho_{gal,tot}$,(gal.arcmin$^{-2}$) & \Block{1-4}{0.3521} \end{NiceTabular} \caption{Spectroscopic specifications from XXXXXXX with 4 bins}\label{density1} \end{table}

\end{document}

Output of the above code

F. Pantigny
  • 40,250
0

I would like to show you a solution with tabularray:

\documentclass{article}
\usepackage{tabularray}

\newenvironment{mytable}[1][h]{\begin{table}[#1]\centering\small}{\end{table}}

\begin{document}

\begin{mytable} \begin{tblr}{ colspec={*5{c}}, hlines,vlines, rows={rowsep+=2pt}, colsep=3pt } Redshift central bin & 1.0 & 1.2 & 1.4 & 1.65 \ $\mathrm{d}N / \mathrm{d}\Omega\mathrm{d}z\left[\mathrm{deg}^{-2}\right]$ & 1815.0 & 1701.5 & 1410.0 & 940.97 \ $\Delta z$ : width of bin & 0.2 & 0.2 & 0.2 & 0.3 \ $\rho_{gal}$,(gal.arcmin$^{-2}$) & 0.1008 & 0.0945 & 0.0783 & 0.0784 \ $\rho_{gal,tot}$,(gal.arcmin$^{-2}$) & \SetCell[c=4]{c} 0.3521 &&&\ \end{tblr} \caption{Spectroscopic specifications from XXXXXXX with 4 bins}\label{density1} \end{mytable}

\end{document}

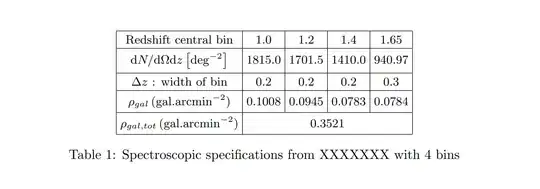

enter image description here

However, with your MWE, as frabjous suggested, use \multicolumn{4}{c|}{0.3521}:

\documentclass{article}
\usepackage{stackengine}

\newenvironment{mytable}[1][h]{\begin{table}[#1]\centering\small}{\end{table}}

\begin{document}

\begin{mytable} %\begin{center}<--- no, you're already using \centering and see https://tex.stackexchange.com/questions/23650/when-should-we-use-begincenter-instead-of-centering %\begingroup<--- Why this? you're already in a group \setlength{\tabcolsep}{3pt} % Default value: 6pt \renewcommand{\arraystretch}{1} % Default value: 1 \begin{tabular}{|c|c|c|c|c|} \hline \addstackgap{Redshift central bin} & 1.0 & 1.2 & 1.4 & 1.65 \ \hline \addstackgap{$\mathrm{d}N / \mathrm{d}\Omega\mathrm{d}z\left[\mathrm{deg}^{-2}\right]$} & 1815.0 & 1701.5 & 1410.0 & 940.97 \ \hline \addstackgap{$\Delta z$ : width of bin} & 0.2 & 0.2 & 0.2 & 0.3 \ \hline \addstackgap{$\rho_{gal}$,(gal.arcmin$^{-2}$)} & 0.1008 & 0.0945 & 0.0783 & 0.0784 \ \hline \addstackgap{$\rho_{gal,tot}$,(gal.arcmin$^{-2}$)} & \multicolumn{4}{c|}{0.3521} \ \hline \end{tabular} %\endgroup %\end{center} \caption{Spectroscopic specifications from XXXXXXX with 4 bins}\label{density1} \end{mytable}%\<--- don't use \ outside tables

\end{document}

enter image description here

CarLaTeX
  • 62,716
