Drawing a control diagram with graph

Question

I am trying to create the attached diagram. But I can't seem to figure out how to create it. My code is shown below. Could someone please help me? Thanks for your help

  \begin{tikzpicture}
        \node [draw=black!50,
            minimum width=2cm,
            minimum height=1.2cm,
            fill=gray!5
            ]  (controller) {Extremum Seeking Controller};
        \node [draw=black!50,
        minimum width=5cm,
        minimum height=3cm,
        above=1.5cm of controller, fill=gray!5
        ]  (plant) {Plant};

   % \draw[-stealth] (plant.east) -| (controller.east)

   \draw[] (plant.east) -- ++ (1.5,0)
    node[](output){}node[midway,above]{};

    \draw[-stealth] (output.east) |- (controller.east);

    \draw[] (controller.west) --++  (-1.5,0)
        node[](fromESCline){};

    \draw[-stealth] (fromESCline.west) |-  (plant.west) ;

\end{tikzpicture}

You need some of these options to connect nodes. For example \draw[-stealth] (plant.east) -- ++ (1.5,0) node[align=center]{Plant \\Output} |- (controller); \draw[-stealth] (controller.west) --++ (-1.5,0) |- node[near end, align=center]{Manipulated\\Variables} (plant); — Qrrbrbirlbel, Dec 15 '22 at 08:04

Raffaele Santoro · Accepted Answer · 2022-12-15T09:09:00.230

1

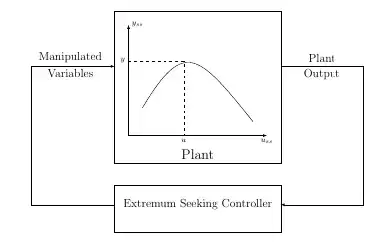

You have this:

whit this code (flat solution...):

\documentclass[10pt,a4paper]{article}
\usepackage{tikz,graphicx}
\begin{document}
    \begin{tikzpicture}
        \draw[-latex] (2,1)--(-1,1)-=(-1,6)--(2,6);
        \draw (2,0) rectangle (8,1.7);
        \draw (2,2.5) rectangle (8,8);
        \draw (5,2.8) node () {\Large Plant};
        \draw[-latex] (8,6)--(11,6)--(11,1)--(8,1);
        \draw[-latex] (2.5,3.5)--(7.5,3.5) node[below] {\footnotesize $u_{ss}$};
        \draw[-latex] (2.5,3.5)--(2.5,7.5) node[right] {\footnotesize $y_{ss}$};
        %\clip (3,4) rectangle (7,7);
        \draw (3,4.5).. controls  (4.5,7) and (5,6.5)..(7,4);
        \draw[dashed] (2.5,6.2)--(4.5,6.2)--(4.5,3.5);
        \draw (2.5,6.2) node[left] () {\footnotesize $y$};
        \draw (4.5,3.5) node[below] () {\footnotesize $u$};
        \draw (5,1) node[] () {\large Extremum Seeking Controller};
        \draw (0.4,6) node[above] () {\large Manipulated};
        \draw (0.4,6) node[below] () {\large Variables};
        \draw (9.5,6) node[above] () {\large Plant};
        \draw (9.5,6) node[below] () {\large Output};

    \end{tikzpicture}
\end{document}

edited Dec 15 '22 at 09:09

answered Dec 15 '22 at 08:45

Raffaele Santoro

9,702

I wanted to add that there is a possibility of having a node and simply including another graphics in it in case there is real data to be displayed . Good solution Raffaele. – anis Dec 15 '22 at 09:10
@anis I need understanding better: You need only to change the central rectangle (Plant)? – Raffaele Santoro Dec 15 '22 at 09:20
All that I am saying is that I would have replaced the plant rectangle by \node [rectangle] {\includegraphics[...]{...}. But that is not a question. thank you. – anis Dec 15 '22 at 09:26
Thank you @RaffaeleSantoro – Tee Dec 15 '22 at 16:11
@anis great suggestion. I did not know that it was possible to add a graph with real data. I will consider that option. – Tee Dec 15 '22 at 16:13
@tee you pay want to check the tikz library named datavisualization. You an even read CSV files directly and plot them. – anis Dec 15 '22 at 16:16
