Latex wrapfigure page break if the figure does not fit to the page

Question

I have founded a solution on this page: link

If the figure does not fit it is allowing a page breake, that is working.

But the one extra line appears after the figure, and I do not know why, and I do not know how to solve thi issue.

Code

\documentclass{article}
\usepackage[margin=2.5cm]{geometry}
\usepackage{graphicx}
\usepackage{wrapfig}
\usepackage{lipsum}
\usepackage{parskip}
\BeforeBeginEnvironment{wrapfigure}{\setlength{\intextsep}{0pt}}
\newsavebox\curwrapfig
\makeatletter
\long\def\wrapfiguresafe#1#2#3{
  \sbox\curwrapfig{#3}
  \par\penalty-100
  \begingroup
    \dimen@\pagegoal \advance\dimen@-\pagetotal
    \advance\dimen@-\baselineskip
    \ifdim \ht\curwrapfig>\dimen@
      \break%
    \fi%
  \endgroup%
  \begin{wrapfigure}{#1}{#2}
    \usebox\curwrapfig
  \end{wrapfigure}
}
\makeatother
\begin{document}
\lipsum[1-6]
\wrapfiguresafe{r}{0mm}{\centering\rule{3cm}{6cm}}
\lipsum[1-6]
\end{document}

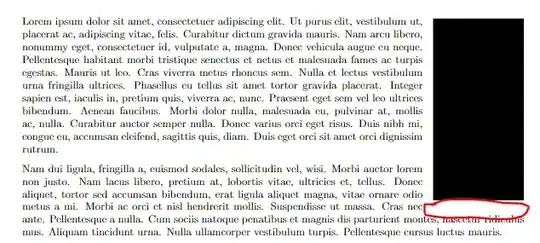

Screenshot:

Which one extra line do you mean? I don't see any line. Or do you mean that you think that there is one short line too much? — Skillmon, Jan 01 '23 at 13:46
If you add \vfill\hrule to the bottom of the page, you will see that the wrapfigure will overlap the last shortened line of text (text can shrink or expand slightly to fit) — John Kormylo, Jan 01 '23 at 18:07

score 1 · Answer 1 · answered Jan 01 '23 at 14:18

The wrapfigure environment has two optional parameters that your wrapping macro don't support, also the support for wrapfigure's second mandatory argument of your macro was incorrect as well. The following is an altered implementation that should correctly implement a wrapper that supports both optional argument and should behave correct with the second mandatory argument not being equal to 0pt.

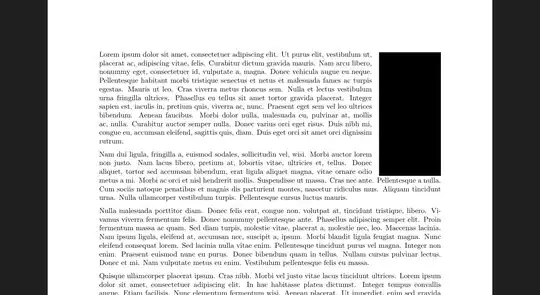

The first optional argument of wrapfigure specifies how many short lines the figure should produce. The following sets that parameter to 14 which is correct in your example.

\documentclass{article}
\usepackage[margin=2.5cm]{geometry}
\usepackage{graphicx}
\usepackage{wrapfig}
\usepackage{lipsum}
\usepackage{parskip}
\BeforeBeginEnvironment{wrapfigure}{\setlength{\intextsep}{0pt}}
\ExplSyntaxOn
\cs_new_protected:Npn \ForwardOarg #1#2
  {
    \tl_if_eq:nnTF {#1} {#2}
      { \tl_clear:N \ProcessedArgument }
      { \tl_set:Nn \ProcessedArgument {[{#2}]} }
  }
\ExplSyntaxOff
\newsavebox\curwrapfig
\makeatletter
\NewDocumentCommand\wrapfiguresafe
  {>{\ForwardOarg{}}O{} m >{\ForwardOarg{}}O{} m m}
  {%
    \ifdim#4=\z@
      \sbox\curwrapfig{#5}%
    \else
    \sbox\curwrapfig{\parbox[b]{#4}{#5}}%
    \fi
    \par\penalty-100
    \begingroup
      \dimen@\pagegoal \advance\dimen@-\pagetotal
      \advance\dimen@-\baselineskip
      \ifdim \ht\curwrapfig>\dimen@
        \break
      \fi
    \endgroup
    \begin{wrapfigure}#1{#2}#3{#4}%
      \usebox\curwrapfig
    \end{wrapfigure}%
  }
\makeatother
\begin{document}
\lipsum[1-6]
\wrapfiguresafe[14]{r}{0mm}{\centering\rule{3cm}{6cm}}
\lipsum[1-6]
\end{document}

I see, is it mandatory to count down the number of line (in this case 14), or is there another way to make it fully automatic (without manual line counting)? — mala97, Jan 01 '23 at 14:26
@mala97 the fully automatic approach was the one that got the count wrong... — Skillmon, Jan 01 '23 at 14:54
