This question is similar to Using Beamer to step through an algorithm written in pseudocode. but not tied to any particular environment. I prefer minted, but any other similar environment that can accomplish what I want is acceptable.

I want to step through an algorithm in beamer on a two-column frame. The left column should highlight the current line and the right column should show the execution state. MWE:

\documentclass{beamer}
\usepackage{minted}
\setminted[python]{autogobble}
\begin{document}
\begin{frame}[fragile]{Running code}
  \begin{columns}
    \begin{column}{0.50\textwidth}
      \begin{overprint}
        \onslide<1>
        \begin{minted}[highlightlines={1}]{python}
          N = 5
          i = 0
          lst = []
          while i < N:
              lst.append(i)
              i = i + 1
        \end{minted}
        \onslide<2>
        \begin{minted}[highlightlines={2}]{python}
          N = 5
          i = 0
          lst = []
          while i < N:
              lst.append(i)
              i = i + 1
        \end{minted}
        \onslide<3>
        \begin{minted}[highlightlines={3}]{python}
          N = 5
          i = 0
          lst = []
          while i < N:
              lst.append(i)
              i = i + 1
        \end{minted}
        \onslide<4>
        \begin{minted}[highlightlines={4}]{python}
          N = 5
          i = 0
          lst = []
          while i < N:
              lst.append(i)
              i = i + 1
        \end{minted}
      \end{overprint}
    \end{column}
    \begin{column}{0.50\textwidth}
      Defined variables here and explanations of the highlighted line,
      etc.
    \end{column}
  \end{columns}
\end{frame}
\end{document}

While the above method "works", it is unpractical because it causes way too much code bloat. Is there a better method? Something like this would be nice:

\begin{minted}[highlighted_line_on_beamer_slide={1,2,3,4,5,6,4,5,6,4,5,6}]{python}
    N = 5
    i = 0
    lst = []
    while i < N:
        lst.append(i)
        i = i + 1
\end{minted}

1 Answers1

2

You could use the lstlinebgrd package (with a patch from https://tex.stackexchange.com/a/451538/36296)

\documentclass{beamer}

\usepackage{listings}

\makeatletter \let\old@lstKV@SwitchCases\lstKV@SwitchCases \def\lstKV@SwitchCases#1#2#3{} \makeatother \usepackage{lstlinebgrd} \makeatletter \let\lstKV@SwitchCases\old@lstKV@SwitchCases

\lst@Key{numbers}{none}{% \def\lst@PlaceNumber{\lst@linebgrd}% \lstKV@SwitchCases{#1}% {none:\% left:\def\lst@PlaceNumber{\llap{\normalfont \lst@numberstyle{\thelstnumber}\kern\lst@numbersep}\lst@linebgrd}\% right:\def\lst@PlaceNumber{\rlap{\normalfont \kern\linewidth \kern\lst@numbersep \lst@numberstyle{\thelstnumber}}\lst@linebgrd}% }{\PackageError{Listings}{Numbers #1 unknown}@ehc}} \makeatother

\makeatletter \newcommand*{\slideinframe}{\number\beamer@slideinframe} \makeatother

\begin{document}

\begin{frame}[fragile] \begin{lstlisting}[% language=python, linebackgroundcolor={% \ifnum\slideinframe=\value{lstnumber}\color{red}\fi }, escapechar=@ ] N = 5 i = 0 lst = [] while i < N: lst.append(i) i = i + 1 @\pause[\value{lstnumber}]@ \end{lstlisting} \end{frame} \end{document}

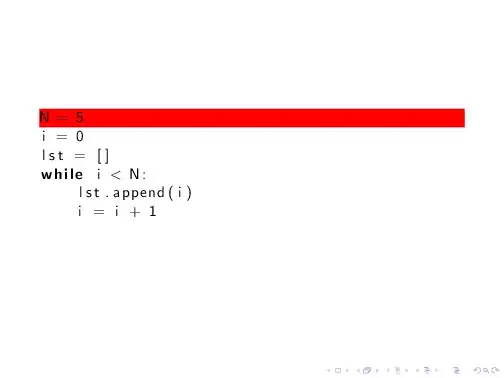

enter image description here

For showing the while loop multiple times, you could use the \againframe macro:

\documentclass{beamer}

\usepackage{listings}

\makeatletter \let\old@lstKV@SwitchCases\lstKV@SwitchCases \def\lstKV@SwitchCases#1#2#3{} \makeatother \usepackage{lstlinebgrd} \makeatletter \let\lstKV@SwitchCases\old@lstKV@SwitchCases

\lst@Key{numbers}{none}{% \def\lst@PlaceNumber{\lst@linebgrd}% \lstKV@SwitchCases{#1}% {none:\% left:\def\lst@PlaceNumber{\llap{\normalfont \lst@numberstyle{\thelstnumber}\kern\lst@numbersep}\lst@linebgrd}\% right:\def\lst@PlaceNumber{\rlap{\normalfont \kern\linewidth \kern\lst@numbersep \lst@numberstyle{\thelstnumber}}\lst@linebgrd}% }{\PackageError{Listings}{Numbers #1 unknown}@ehc}} \makeatother

\makeatletter \newcommand*{\slideinframe}{\number\beamer@slideinframe} \makeatother

\begin{document}

\begin{frame}[label=foo,fragile] \begin{lstlisting}[% language=python, linebackgroundcolor={% \ifnum\slideinframe=\value{lstnumber}\color{red}\fi }, escapechar=@ ] N = 5 i = 0 lst = [] while i < N: lst.append(i) i = i + 1 @\pause[\value{lstnumber}]@ \end{lstlisting} \end{frame}

\againframe<4->{foo} \againframe<4->{foo} \againframe<4->{foo} \againframe<4->{foo}

\end{document}

enter image description here
