How to shade entries in a matrix?

Question

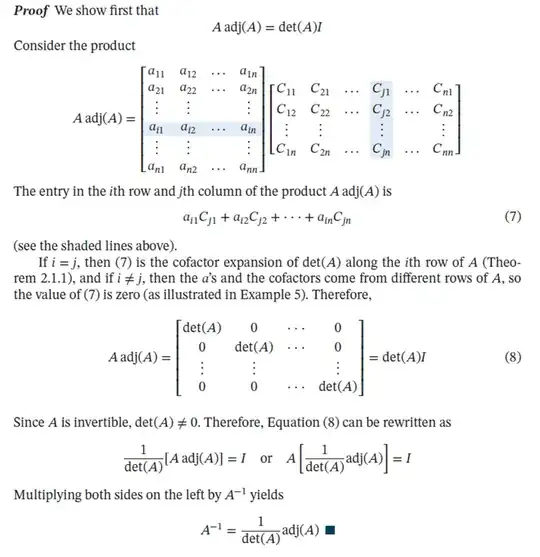

I'm using overleaf and I am trying to shade entries in a matrix like the picture below :

and this is my work without that shading.

Can anyone help?

This is my code :

\documentclass{article}
\usepackage[english]{babel}
\usepackage[a4paper,top=2cm,bottom=2cm,left=3cm,right=3cm,marginparwidth=1.75cm]{geometry}
\usepackage{amsmath}
\usepackage{amssymb}
\usepackage{amsthm}
\usepackage{enumerate}
\usepackage{enumitem}
\usepackage{graphicx}
\usepackage{xcolor}
\usepackage{indentfirst}
\usepackage{tabularx}
\usepackage{bm}
\usepackage[colorlinks=true, allcolors=teal]{hyperref}
\usepackage[T1]{fontenc}
\begin{document}
\makeatother
\begin{tabularx}{0.9\linewidth}{l@{}c@{}X}
\textbf{2.3.6} & $\quad$ & \textbf{Inverse of a Matrix Using Its Adjoint} \
& & If $A$ is an invertible matrix, then
\begin{equation}
A^{-1} = \frac{1}{\det(A)} \operatorname{adj}(A)
\end{equation}
\end{tabularx}
\begin{tabularx}{0.9\linewidth}{l@{}c@{}X}
\textbf{Proof} & $\quad$ & We show first that
$$A \operatorname{adj}(A) = \det(A) I$$
Consider the product
$$A \operatorname{adj}(A) = \begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \ a_{21}
& a_{22} & \cdots & a_{2n} \ \vdots & \vdots & & \vdots \ a_{i1} & a_{i2} & \cdots &
a_{in} \ \vdots & \vdots & & \vdots \ a_{n1} & a_{n2} & \cdots & a_{nn} \end{bmatrix}
\begin{bmatrix} C_{11} & C_{21} & \cdots & C_{j1} & \cdots & C_{n1} \ C_{12} & C_{22} &
\cdots & C_{j2} & \cdots & C_{n2} \ \vdots & \vdots & & \vdots & & \vdots \ C_{1n} &
C_{2n} & \cdots & C_{jn} & \cdots & C_{nn} \end{bmatrix}$$
The entry in the $i$th row and $j$th column of the product $A \operatorname{adj}(A)$ is
\begin{equation}
a_{i1} C_{j1} + a_{i2} + C_{j2} + \cdots + a_{in} C_{jn}
\end{equation}
(see the shaded lines above.) If $i = j$, then (12) is the cofactor expansion of
$\det(A)$ along the $i$th row of $A$ (\textbf{Theorem 2.1.1}), and if $i \ne j$, then
the $a$'s and the cofactors come from different rows of $A$, so the value of (12) is
zero. Therefore,
\begin{equation}
A \operatorname{adj}(A) = \begin{bmatrix} \det(A) & 0 & \cdots & 0 \ 0 & \det(A) &
\cdots & 0 \ \vdots & \vdots & & \vdots \ 0 & 0 & \cdots & \det(A) \end{bmatrix} =
\det(A) I
\end{equation}
Since $A$ is invertible and $\det(A) \ne 0$. Therefore, Equation (13) can be rewritten
as
$$\frac{1}{\det(A)} [A \operatorname{A}] = I \quad \text{or} \quad A \left[ \frac{1}
{\det(A)} \operatorname{adj}(A) \right] = I$$
Multiplying both sides on the left by $A^{-1}$ yields
$$A^{-1} = \frac{1}{\det(A)} \operatorname{adj}(A)$$
$\blacksquare$ \
\end{tabularx}
\end{document}

This is my first question here.

See https://tex.stackexchange.com/questions/69713/ – Zarko Feb 09 '23 at 05:23 — Zarko, Feb 09 '23 at 05:23

Sandy G · Accepted Answer · 2023-02-09T03:16:53.613

With nicematrix you can use \CodeBefore to shade any rectangular area by specifying the upper left and lower right cells:

To color full rows or columns, you can alternatively use \rowcolor{blue!15}{4} and \columncolor{blue!15}{4}. You can use this to shade multiple rows/columns, e.g., \rowcolor{blue!15}{1,3-5}

\documentclass{article}
\usepackage{nicematrix}
\begin{document}
Consider the product
[
A \operatorname{adj}(A) =
\begin{bNiceMatrix}
\CodeBefore
  \rectanglecolor{blue!15}{4-1}{4-4}
\Body

a_{11} & a_{12} & \cdots & a_{1n} \
a_{21} & a_{22} & \cdots & a_{2n} \
\vdots & \vdots & & \vdots \
a_{i1} & a_{i2} & \cdots & a_{in} \ \vdots & \vdots & & \vdots \
a_{n1} & a_{n2} & \cdots & a_{nn}
\end{bNiceMatrix}
\begin{bNiceMatrix}
\CodeBefore
  \rectanglecolor{blue!15}{1-4}{4-4}
\Body
C_{11} & C_{21} & \cdots & C_{j1} & \cdots & C_{n1} \
C_{12} & C_{22} &
\cdots & C_{j2} & \cdots & C_{n2} \
\vdots & \vdots & & \vdots & & \vdots \
C_{1n} & C_{2n} & \cdots & C_{jn} & \cdots & C_{nn}
\end{bNiceMatrix}
]
\end{document}
