Colored box from page limit to the end of chapter title in toc

Question

I'd like to have colored boxes around the titles in my toc. The box should begin at the edge of the page and finish after the end of the chapter name.

I found many solutions for having a box going from the chapter number to the page number. However, I couldn't find one corresponding to my need.

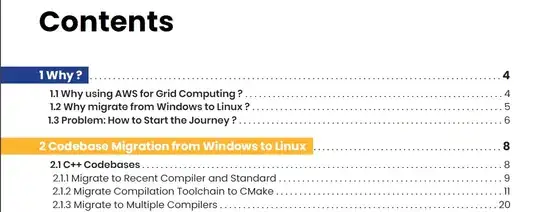

Here is an example of what I am trying to achieve:

Nb : due to font integration issues, I am using XeLatex.

edit

As mentioned before, I need to use XeLatex for unicode support. Hence, Tikz are not a good solution as tikzmark and pgfmark are not well supported (as per Why xelatex renders arrows in tikz figures differently than lualatex? and my many many trials).

I managed to get something working partially:

\documentclass[a4paper,11pt, american]{report}
\usepackage[utf8]{inputenc}
\usepackage{tocloft,tikz}
\usetikzlibrary{calc}
\makeatletter
\newcommand{\gettikzxy}[3]{%
  \tikz@scan@one@point\pgfutil@firstofone#1\relax
  \edef#2{\the\pgf@x}%
  \edef#3{\the\pgf@y}%
}
\makeatother
\newcommand*{\tikzcoordinate}[1]{%
    \tikz[remember picture, overlay] \coordinate (#1);}
\renewcommand{\cftchapfont}{%
    \tikzcoordinate{A}
    \bfseries\Large%
}
\renewcommand{\cftchappagefont}{\bfseries}
\renewcommand{\cftchapleader}{%
    \tikz[remember picture,overlay]{%
    \coordinate (C);%
    \coordinate (B) at (current page.west|- A);
    \gettikzxy{(A)}{\ax}{\ay}
    \gettikzxy{(B)}{\bx}{\by}
    \gettikzxy{(C)}{\cx}{\cy}
    \fill[red,opacity=.2] ([yshift=+1.3333em,xshift=-.3333em]B) rectangle
                                    ([xshift=.3333em,yshift=+-1ex]C |- 0,0);
    \ifx\by\cy
    \else
        \coordinate (D) at (\cx+.3333em,\by+1.3333em);
        \coordinate (E) at (\ax-.8em+\linewidth- \cftchapindent- \cftchapnumwidth,\cy+1em);
        \gettikzxy{(D)}{\dx}{\dy}
        \gettikzxy{(E)}{\ex}{\ey}
        \ifdim\dx<\ex
            \fill[red,opacity=.2] (D) rectangle (E);
        \else
            \fill[white,opacity=1] (D) rectangle (E);
        \fi
    \fi
  }%
  \bfseries\cftdotfill{\cftdotsep}%
}
\begin{document}
\tableofcontents
\chapter{(title chapter 1)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\chapter{(veryvery very very very very very very very very very very very very very very very very very very very very very long title chapter 2)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\chapter{(very very very very very very very very long title chapter 3)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\end{document}

Which produces:

Now, my problem is that I need the color to be on the background to allow the text to be written in white on top of it. Any clue on how to do that with XeLatex ?

Answer 1

Finally found a solution. Issue in using tikzmark was not XeLatex. However, a counter has to be used to ensure that each mark name is unique. There is probably a simpler solution but this one is working fine.

\documentclass{report}
\usepackage{tocloft,tikz}
\usetikzlibrary{calc}
\usetikzlibrary{tikzmark}
\makeatletter
\newcommand{\gettikzxy}[3]{%
  \tikz@scan@one@point\pgfutil@firstofone#1\relax
  \edef#2{\the\pgf@x}%
  \edef#3{\the\pgf@y}%
}
\makeatother
\newcounter{chapmarkcounter}
\setcounter{chapmarkcounter}{1}
\renewcommand{\cftchapfont}{%
    \def\markname{cs:cmark:\expandafter\thechapmarkcounter}%
    \tikz[remember picture,overlay]{%
        \coordinate (A);%
        \coordinate (B) at (current page.west|- A);%
        \coordinate (C) at (pic \expandafter\markname);%
        \gettikzxy{(A)}{\ax}{\ay}%
        \gettikzxy{(B)}{\bx}{\by}%
        \gettikzxy{(C)}{\cx}{\cy}%
        \fill[red] (\bx-.3333em, \by+1.3333em) rectangle (\cx + .3333em, \cy-0.9ex);%
        \ifx\by\cy%
        \else%
            \coordinate (D) at (\cx+.3333em,\by+1.3333em);%
            \coordinate (E) at (\ax-.8em+\linewidth- \cftchapindent- \cftchapnumwidth,\cy+1em);%
            \gettikzxy{(D)}{\dx}{\dy}%
            \gettikzxy{(E)}{\ex}{\ey}%
            \ifdim\dx<\ex%
                \fill[red] (D) rectangle (E);%
            \else%
                \fill[white] (D) rectangle (E);%
            \fi%
        \fi%
    }%
    \color{white}\bfseries\Large%
}
\renewcommand{\cftchappagefont}{\Large\bfseries}
\renewcommand{\cftchapleader}{%
    \pgfmark{cmark:\expandafter\thechapmarkcounter}%
    \addtocounter{chapmarkcounter}{1}%
    \bfseries\cftdotfill{\cftdotsep}%
}
\begin{document}
\tableofcontents
\chapter{(title chapter 1)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\chapter{(veryvery very very very very very very very very very very very very very very very very very very very very very long title chapter 2)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\chapter{(very very very very very very very very long title chapter 3)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\chapter{(title chapter 4)}
\section{(title section 1)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\section{(title section 2)}
\subsection{(title sub-section 1)}
\subsection{(title sub-section 2)}
\end{document}
