Set distance for every sibling individually in TikZ

Question

I have the following code in LaTeX:

\begin{figure}
    \centering
    \begin{tikzpicture}[nodes={draw, circle}, -,
        level/.style = {level distance = 1.5cm, sibling distance = 1cm},
        level 1/.style={sibling distance=3cm}]
        \node [minimum size=0.75cm]{$\rightarrow$\strut}
        child { node[rectangle, minimum size=0.75cm] {a\strut} }
        child { node [minimum size=0.75cm] {$\land$}
            child { node [rectangle, minimum size=0.75cm] {b\strut}}
            child { node [rectangle, minimum size=0.75cm] {c\strut}}
            child { node [rectangle, minimum size=0.75cm] {d\strut}}
            child { node [rectangle, minimum size=0.75cm] {e\strut}}
        }
        child { node[rectangle, minimum size=0.75cm] {g\strut} }
        child { node [minimum size=0.75cm] {$\times$}
            child { node [rectangle, minimum size=0.75cm] {h\strut}}
            child { node [rectangle, minimum size=0.75cm] {\tau \strut}}
        }
        child { node [minimum size=0.75cm] {$\land$}
            child { node [rectangle, minimum size=0.75cm] {i\strut}}
            child { node [rectangle, minimum size=0.75cm] {j\strut}}
            child { node [rectangle, minimum size=0.75cm] {k\strut}}
            child { node [rectangle, minimum size=0.75cm] {l\strut}}
            child { node [minimum size=0.75cm] {$\times$}
                child { node [rectangle, minimum size=0.75cm] {m\strut}}
                child { node [rectangle, minimum size=0.75cm] {\tau \strut}}
            }
        }
        child { node[rectangle, minimum size=0.75cm] {n\strut} };
    \end{tikzpicture}
\end{figure}

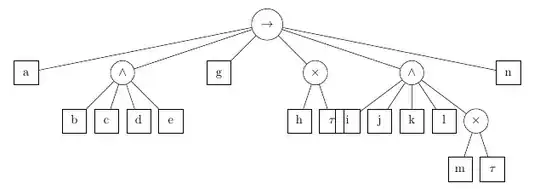

It produces this output:

How can i set the distance between g, the logical and, the multiplication symbol and the right and so that the tau and i node do not overlap?

Welcome to TeX.SX! Please extend your code to a minimal working example (MWE). — dexteritas, Mar 09 '23 at 13:26
You can set [sibling distance=15mm] within a child to only affect that child. But there are also more automatic ways using qtree or forest, see TikZ tree sibling distance. — dexteritas, Mar 09 '23 at 13:30
If you cross-post the same question on multiple different sites, you should include links to all other versions of the question in every version of your question. — samcarter_is_at_topanswers.xyz, Mar 09 '23 at 13:33

score 0 · Accepted Answer · answered Mar 09 '23 at 14:58

You might consider using the forest package, which will prevent overlapping nodes by default.

\documentclass{article}
\usepackage{forest}
\begin{document}
\begin{forest}
for tree={draw, minimum size=.75cm, l sep=7mm, if n children=0{text depth=0, text height=1.5ex}{circle}},
s sep=1cm
[$\rightarrow$, minimum size=1cm
    [a]
    [$\land$
        [b][c][d][e]
    ]
    [g]
    [$\times$
        [h][$\tau$]
    ]
    [$\land$
        [i][j][k][l][$\times$[m][$\tau$]]
    ]
    [n]
]
\end{forest}
\end{document}
