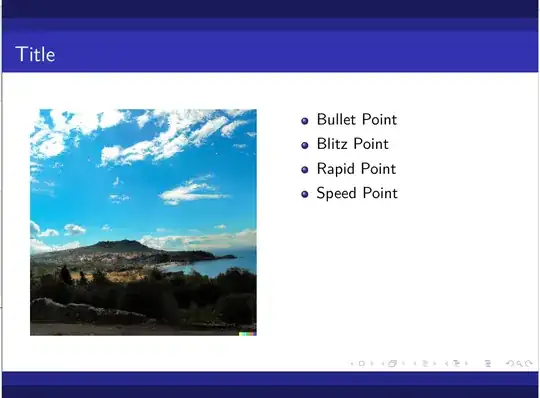

I'm trying to create a latex beamer presentation. I tried using the columns environment in my Frame to split it into 2 Parts: one text part, and another for an illustration. Here is how it looks: enter image description here

As you can see, the text is not vertically centered. How can I center the text vertically?

Here is my code:

\documentclass{beamer}

\usepackage[utf8]{inputenc} \usepackage[ngerman]{babel} \usepackage[T1]{fontenc} \usepackage{lmodern}

\mode <presentation>{ \usetheme{Ilmenau} \setbeamercovered{transparent}}

\begin{document}

\begin{frame} \frametitle{Title} \begin{columns}[T] \begin{column}{0.5\textwidth} \centering \includegraphics[width=\textwidth]{image} \end{column} \begin{column}{0.5\textwidth} \begin{itemize} \item Bullet Point \item Blitz Point \item Rapid Point \item Speed Point

            \end{itemize}
        \end{column}
    \end{columns}


\end{frame}


\end{document}

I tried using vspace the following way, like you do it to center text in minipages, but that didn't work.

\vspace*{\fill}
        \begin{itemize}
\item bullet point
\item bullet point
\item bullet point
        \end{itemize}

\vspace*{\fill}

Does anybody know how to center text vertically in the columns environment in latex beamer? It would be ideally if it were a preamble setting/package.

Image: image

User1986
  • 157

1 Answers1

2

By using the T option for your columns, you force them to be top aligned. You could replace it with c for centred columns or leave it out altogether because c is the default.

With normal text/images this would perfectly centre the content. For the special case of using a list as the first thing in the column, it will be very slightly off centre, but you could compensate for that e.g. by putting your image in a centre environment instead of using \centering.

\documentclass{beamer}

\usepackage[utf8]{inputenc} \usepackage[ngerman]{babel} \usepackage[T1]{fontenc} \usepackage{lmodern}

\mode <presentation>{ \usetheme{Ilmenau} \setbeamercovered{transparent}}

\begin{document}

\begin{frame} \frametitle{Title} \begin{columns}[c] \begin{column}{0.5\textwidth} \begin{center} \includegraphics[width=\textwidth]{example-image-duck} \end{center} \end{column} \begin{column}{0.5\textwidth} \begin{itemize} \item Bullet Point \item Blitz Point \item Rapid Point \item Speed Point \end{itemize} \end{column} \end{columns} \end{frame}

\end{document}
