How can I draw event on top of each other on a timeline?

Question

I want to draw events on top of each other on a time-line. As an example, I want to draw following figure, where event boxes could be place in different locations:

For https://tex.stackexchange.com/a/436306/127048 I was able to come up with:

\documentclass{article}
\newcommand{\ImageWidth}{11cm}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing,positioning, arrows.meta}
\begin{document}
\begin{tikzpicture}
    % draw horizontal line
    \draw[thick, -Triangle] (0,0) -- (4,0) node[font=\scriptsize,below left=3pt and -8pt]{hours};
% draw vertical lines
\foreach \x in {0,1,...,3}
\draw (\x cm,3pt) -- (\x cm,-3pt);

\foreach \x/\descr in {0/t_{1},1/t_{2},2/t_{3},3/t_{4}}
\node[font=\scriptsize, text height=1.75ex,
text depth=.5ex] at (\x,-.3) {$\descr$};

% colored bar up
\foreach \x/\perccol in
{0/100,1/75}
\draw[lightgray!\perccol!lightgray, line width=4pt]
(\x,.5) -- +(1,0);

% colored bar down
\foreach \x/\perccol in
{3/100,4/75,5/0}
(\x,-.7) -- +(1,0);

\end{tikzpicture}
\end{document}

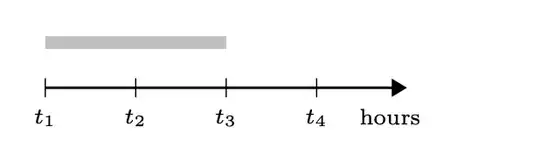

output:

Related: https://tex.stackexchange.com/a/210370/127048

That was in my mind, do you think its easier with pgfgantt? Also I had to combine pgfgantt along with other tikz figures — alper, May 18 '23 at 07:08

Raffaele Santoro · Accepted Answer · 2023-05-19T09:09:31.810

Like this?

Code:

\documentclass{article}
\newcommand{\ImageWidth}{11cm}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing,positioning, arrows.meta}
\begin{document}
    \begin{tikzpicture}
        % draw horizontal line
        \draw[thick, -Triangle] (0,0) -- (4,0) node[font=\scriptsize,below left=3pt and -8pt]{hours};
    % draw vertical lines
    \foreach \x in {0,1,...,3}
    \draw (\x cm,3pt) -- (\x cm,-3pt);

    \foreach \x/\descr in {0/t_{1},1/t_{2},2/t_{3},3/t_{4}}
    \node[font=\scriptsize, text height=1.75ex,
    text depth=.5ex] at (\x,-.3) {$\descr$};

    % colored bar1 up
    \draw[lightgray!50!lightgray, line width=7pt]
    (0,.5) -- +(2,0)  node[pos=.5,white] () {one};

    % colored bar2 up
    \draw[lightgray!50!red, line width=7pt]
    (0,.8) -- +(2,0)  node[pos=.5,white] () {two};

    % colored bar2 down
    \draw[lightgray!50!green, line width=7pt]
    (2,-.6) -- +(1.5,0)  node[pos=.5,white] () {three};
\end{tikzpicture}

\end{document}

UPDATE FOR DASHED LINES:

\documentclass{article}
\newcommand{\ImageWidth}{11cm}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing,positioning, arrows.meta}
\begin{document}
    \begin{tikzpicture}
        % draw horizontal line
        \draw[thick, -Triangle] (0,0) -- (4,0) node[font=\scriptsize,below left=3pt and -8pt]{hours};
    % draw vertical lines
    \foreach \x in {0,1,...,3}
    \draw (\x cm,3pt) -- (\x cm,-3pt);

    \foreach \x/\descr in {0/t_{1},1/t_{2},2/t_{3},3/t_{4}}
    \node[font=\scriptsize, text height=1.75ex,
    text depth=.5ex] at (\x,-.3) {$\descr$};

    % colored bar1 up
    \draw[lightgray!50!lightgray, line width=7pt]
    (0,.5) -- +(2,0)  node[pos=.5,white] () {one};

    % colored bar2 up
    \draw[lightgray!50!red, line width=7pt]
    (0,.8) -- +(2,0)  node[pos=.5,white] () {two};

    % colored bar2 down
    \draw[lightgray!50!green, line width=7pt]
    (2,-.6) -- +(1.5,0)  node[pos=.5,white] () {three};

    % dotted lines
    \foreach \x in {0,2}
        \draw[dashed] (\x,0)--(\x,1);
    \foreach \x in {2,3.5}
        \draw[dashed] (\x,0)--(\x,-.7);

\end{tikzpicture}

\end{document}

Final update:

\documentclass{article}
\newcommand{\ImageWidth}{11cm}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing,positioning, arrows.meta}
\begin{document}
    \begin{tikzpicture}
        % grid
        \draw[gray!20,step=.25] (-1,-1) grid (6,2);
        % draw horizontal line
        \draw[thick, -Triangle] (0,0) -- (4,0) node[font=\scriptsize,below left=3pt and -8pt]{hours};
    % draw vertical lines
    \foreach \x in {0,1,...,3}
    \draw (\x cm,3pt) -- (\x cm,-3pt);

    \foreach \x/\descr in {0/t_{1},1/t_{2},2/t_{3},3/t_{4}}
    \node[font=\scriptsize, text height=1.75ex,
    text depth=.5ex] at (\x,-.3) {$\descr$};

    % colored bar1 up
    \draw[lightgray!50!lightgray, line width=7pt]
    (0,.5) -- +(2,0)  node[pos=.5,white] () {one};

    % colored bar2 up
    \draw[lightgray!50!red, line width=7pt]
    (0,.8) -- +(2,0)  node[pos=.5,white] () {two};

    % colored bar2 down
    \draw[lightgray!50!green, line width=7pt]
    (2,-.6) -- +(1.5,0)  node[pos=.5,white] () {three};

    % dotted lines
    \foreach \x in {0,2}
        \draw[dashed] (\x,0)--(\x,1);
    \foreach \x in {2,3.5}
        \draw[dashed] (\x,0)--(\x,-.7);

\end{tikzpicture}

\end{document}

Output:

Is it possible to add light-gray grid lines at the background like pgfgantt has? Sorry I tried to add the dashed lines in my figure but it wasn't that clear — alper, May 18 '23 at 07:38
@alper If You want also a bg lightgray grid add ths code insede the pkzpicture environnement: \draw[gray!20] (-1,-1) grid (6,2); — Raffaele Santoro, May 18 '23 at 11:24
Now You dont have rectangle, but some large lines widhts. Perhaps You need to restart with rectangles... — Raffaele Santoro, May 19 '23 at 08:14
Final Q, can we make the grid more rapid (smaller boxes)? if possible I want to have additinoal lightgray line for all in between t_{n},t_{n+1} as well — alper, May 19 '23 at 08:22
