How can I add a circle along the planes?

Question

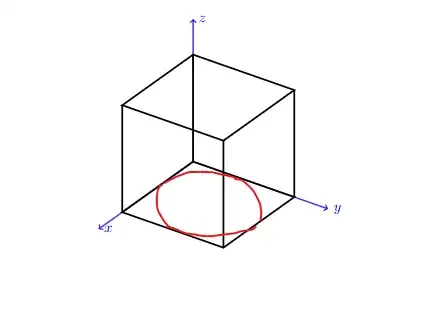

Hello! I was wondering how I can add a circle (x-1.5)^2+(y-1.5)^2=1.5^2 as shown in red. Here is my code:

\documentclass{article}
\usepackage{pgfplots}
\usepackage{graphicx}
\usepackage{amssymb}
\usepackage{amsmath}
\usepackage{tikz}
\usepackage{tikz-3dplot}
\usepackage{gensymb}
\usetikzlibrary{shapes,arrows,positioning}
\pgfplotsset{compat=1.18, width=10cm}
\begin{document}
\begin{center}
\tdplotsetmaincoords{60}{125}
\begin{tikzpicture}
        [tdplot_main_coords,
            cube/.style={very thick,black},
            axis/.style={->,blue,thick}]
%draw the axes
\draw[axis] (0,0,0) -- (4,0,0) node[anchor=west]{$x$};
\draw[axis] (0,0,0) -- (0,4,0) node[anchor=west]{$y$};
\draw[axis] (0,0,0) -- (0,0,4) node[anchor=west]{$z$};

%draw the top and bottom of the cube
\draw[cube] (0,0,0) -- (0,3,0) -- (3,3,0) -- (3,0,0) -- cycle;
\draw[cube] (0,0,3) -- (0,3,3) -- (3,3,3) -- (3,0,3) -- cycle;

%draw the edges of the cube
\draw[cube] (0,0,0) -- (0,0,3);
\draw[cube] (0,3,0) -- (0,3,3);
\draw[cube] (3,0,0) -- (3,0,3);
\draw[cube] (3,3,0) -- (3,3,3);



\end{tikzpicture}
\end{center}
\end{document}

related: Drawing a circle on a non xy-plane with TikZ – dexteritas Sep 04 '23 at 12:51 — dexteritas, Sep 04 '23 at 12:51

score 7 · Accepted Answer · answered Sep 04 '23 at 11:12

add the following line of code

            \draw[thick, red] (1.5, 1.5, 0)  circle (1.5);

MWE

\documentclass{article}
\usepackage{pgfplots}
\usepackage{graphicx}
\usepackage{amssymb}
\usepackage{amsmath}
\usepackage{tikz}
\usepackage{tikz-3dplot}
\usepackage{gensymb}
\usetikzlibrary{shapes,arrows,positioning}
\pgfplotsset{compat=1.18, width=10cm}
\begin{document}
    \begin{center}
    \tdplotsetmaincoords{60}{125}
    \begin{tikzpicture}
        [tdplot_main_coords,
        cube/.style={very thick,black},
        axis/.style={-&gt;,blue,thick}]

        %the circle
        \draw[thick, red] (1.5, 1.5, 0)  circle (1.5);

        %draw the axes
        \draw[axis] (0,0,0) -- (4,0,0) node[anchor=west]{$x$};
        \draw[axis] (0,0,0) -- (0,4,0) node[anchor=west]{$y$};
        \draw[axis] (0,0,0) -- (0,0,4) node[anchor=west]{$z$};

        %draw the top and bottom of the cube
        \draw[cube] (0,0,0) -- (0,3,0) -- (3,3,0) -- (3,0,0) -- cycle;
        \draw[cube] (0,0,3) -- (0,3,3) -- (3,3,3) -- (3,0,3) -- cycle;

        %draw the edges of the cube
        \draw[cube] (0,0,0) -- (0,0,3);
        \draw[cube] (0,3,0) -- (0,3,3);
        \draw[cube] (3,0,0) -- (3,0,3);
        \draw[cube] (3,3,0) -- (3,3,3);

    \end{tikzpicture}
\end{center}


\end{document}

Output

For the circles in the other planes, you can use \draw[thick, blue, canvas is yz plane at x=0] (1.5,1.5) circle (1.5); and \draw[thick, green, canvas is xz plane at y=0] (1.5,1.5) circle (1.5);. (see also Drawing a circle on a non xy-plane with TikZ) — dexteritas, Sep 04 '23 at 12:50
