How to put frame around each page with white space buffer so that text are do not touch the frame?

Question

I like to put frame around each page. Only around the text area of the page. Not including the header and footer.

I am also using fancyhdr. After some struggle, I got the following.

But the frame around the text area is too close to the text itself. I am not sure how to add extra space. Should I make textwidth itself smaller? Or make frame wider? And how to do these things. This is what I have now:

I am using Tikz code I found on the net and made small modification to change thickness and color of the frame. Here is MWE

\documentclass[12pt,oneside]{book}
\usepackage[letterpaper,margin=1in]{geometry}
\usepackage{blindtext}
%%%%%%%%%%%%%%%%%%%%%%%%% fancyhdr
\usepackage{textcase}
\usepackage{fancyhdr}
\fancyhead{} % clear all header fields
\fancyfoot{} % clear all footer fields
\renewcommand{\headrulewidth}{0pt}% default is 0pt
\fancyhead[R]{{\footnotesize\scshape\thepage}}
\fancyhead[L]{\leftmark}
\fancyfoot[L]{\nouppercase{\rightmark}}
\renewcommand{\footrulewidth}{0pt}% default is 0pt

\pagestyle{fancy}
\usepackage{tikzpagenodes}
\usepackage[contents={}]{background}
\AddEverypageHook{%
  \tikz[remember picture,overlay]{
    \draw[line width=.5pt,rounded corners,gray] (current page text area.north east) -- (current page text area.north west)
          -- (current page text area.south west) -- (current page text area.south east) -- cycle;
  }
}
\setcounter{tocdepth}{1} % 4 for main TOC must be in preamble
\setcounter{secnumdepth}{5}
\begin{document}
\title{My most important work\vspace{-8pt}}
\author{me}
\date{\today}
\maketitle

\tableofcontents
\blinddocument
\end{document}

Need something similar to Vector frame on all pages

But I could not make the above work with fancyhdr , it messed it up. Will keep trying.

The space buffer does not have to be too large. I just do not like the text touching the frame, makes it hard to read.

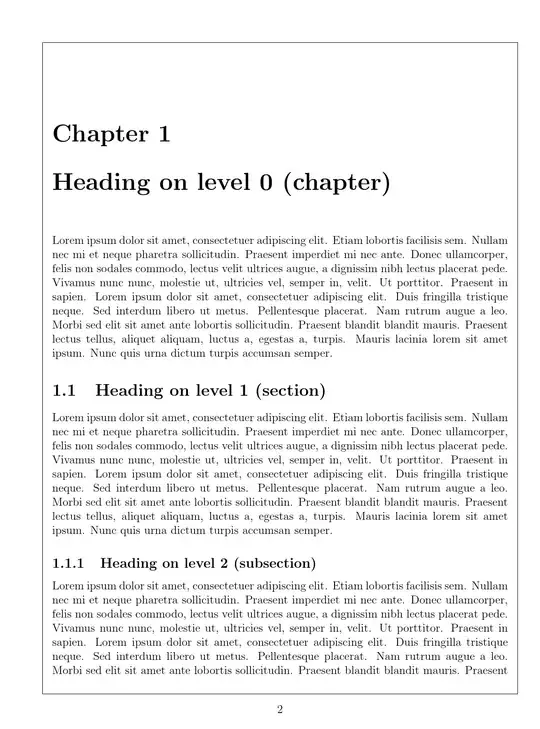

I basically need something like this:

using TL 2023 with lualatex

score 2 · Accepted Answer · answered Dec 19 '23 at 07:08

How about using the fit library and just a node?

\usetikzlibrary{fit}
\AddEverypageHook{%
  \tikz[remember picture,overlay]{
    \node [fit=(current page text area),draw,inner sep=10pt] {};
  }
}

You can modify inner sep as desired.

\documentclass[12pt,oneside]{book}
\usepackage[letterpaper,margin=1in]{geometry}
\usepackage{blindtext}
%%%%%%%%%%%%%%%%%%%%%%%%% fancyhdr
\usepackage{textcase}
\usepackage{fancyhdr}
\fancyhead{} % clear all header fields
\fancyfoot{} % clear all footer fields
\renewcommand{\headrulewidth}{0pt}% default is 0pt
\fancyhead[R]{{\footnotesize\scshape\thepage}}
\fancyhead[L]{\leftmark}
\fancyfoot[L]{\nouppercase{\rightmark}}
\renewcommand{\footrulewidth}{0pt}% default is 0pt

\pagestyle{fancy}
\usepackage{tikzpagenodes}
\usepackage[contents={}]{background}
\usetikzlibrary{fit}
\AddEverypageHook{%
  \tikz[remember picture,overlay]{
    \node [fit=(current page text area),draw,inner sep=10pt] {};
  }
}
\setcounter{tocdepth}{1} % 4 for main TOC must be in preamble
\setcounter{secnumdepth}{5}
\begin{document}
\title{My most important work\vspace{-8pt}}
\author{me}
\date{\today}
\maketitle

\tableofcontents
\blinddocument
\end{document}

Incidentally, I believe the background package may be deprecated in favour of the new hooks (but this would be another topic!).
