I want to have a XOR node in my TikZ diagram, but couldn't find any available symbol, therefore made one myself, but I am not very happy with it. I used the example from how to draw XOR gate symbol as a node in tikz? as basis.

\tikzstyle{XOR} = [draw,circle]

And use it as follows:

 \node [XOR] {\large +};

However, there is always a padding around the +. I want the + to 'connect' with the circle.

Here my MWE:

\documentclass{standalone}
\usepackage{tikz}
\usetikzlibrary{shapes,arrows,fit,calc,positioning,automata}
\begin{document}

\tikzstyle{XOR} = [draw,circle]
\tikzstyle{line}    = [draw, -latex']

\begin{tikzpicture}[auto,>=latex', scale = 1, transform shape]
    \tikzstyle{line}=[draw, -latex']

    \node (XOR-aa)[XOR] {\large +};


    \node [above of=XOR-aa,node distance=1.5cm,text width=1.5cm,anchor=south,align=center] (bla) {Bla};

    \node [right of=XOR-aa,node distance=3cm,text width=1.5cm,anchor=east,align=center] (Blob) {Blob};

    \node [left of=XOR-aa,node distance=3cm,text width=1.5cm,anchor=west,align=center] (blubb) {Blubb};

    \path[line] (XOR-aa) edge (Blob)
                (bla) edge (XOR-aa)
                (blubb) edge (XOR-aa);
\end{tikzpicture}
\end{document}
Community
  • 1
cherrung
  • 3,759
  • 2
    Wouldn't \node (XOR-aa) {$\displaystyle\oplus$}; be what you need? – egreg Oct 08 '12 at 15:19
  • I think your question is similar to how to draw XOR gate symbol as a node in tikz?, although Claudio's answer is not there. – Ignasi Oct 08 '12 at 15:58
  • Well, I don't know if anyone who voted to close my answer, actually read my question? I even pointed to the other thread, but in my case the XOR-gate is connected to the circle. Oh well. Claudio answered it nonetheless. – cherrung Oct 09 '12 at 02:28
  • @egreg Wow. I was actually looking for that symbol and couldn't find it. – cherrung Oct 09 '12 at 02:31
  • @cherrung I've voted for reopening. At the least you should try and edit the title so that it's clear that you want a different thing than what's in the other question. – egreg Oct 09 '12 at 06:31
  • 1
    I voted to reopen too. Notice indeed that in the previous question how to draw XOR gate symbol as a node in tikz? there's no mention about how to draw the XOR symbol. Here, instead, the question is clearly: how to draw an XOR symbol such that the + sign is connected to the external circle? – Claudio Fiandrino Oct 09 '12 at 07:01
  • I hope seamless describes it best. @egreg I think using \oplus is actually the most easy way, however, there is a padding between the arrows and the \oplus, which doesn't happen with the created tikzset. – cherrung Oct 09 '12 at 10:48
  • Try with \node[outer sep=0pt] (XOR-aa){$\displaystyle\oplus$};. From manual: This option adds an additional (invisible) separation space of hdimensioni outside the background path. The main effect of this option is that all anchors will move a little “to the outside.” – Ignasi Oct 09 '12 at 12:15
  • I was who first vote to close it, but now I also voted to reopen it. But, please, as egreg suggested, change the title. A second trick, when linking to another question just include the complete url, this site will replace it with its title which is more informative than just here. – Ignasi Oct 09 '12 at 12:20

2 Answers2

11

The best idea I think is to define the XOR in such a way that automatically the + sign is inside the circle. One possibility is:

\tikzset{XOR/.style={draw,circle,append after command={
        [shorten >=\pgflinewidth, shorten <=\pgflinewidth,]
        (\tikzlastnode.north) edge (\tikzlastnode.south)
        (\tikzlastnode.east) edge (\tikzlastnode.west)
        }
    }
}

The complete example:

\documentclass{standalone}
\usepackage{tikz}
\usetikzlibrary{shapes,arrows,fit,calc,positioning,automata}
\begin{document}

\tikzset{XOR/.style={draw,circle,append after command={
        [shorten >=\pgflinewidth, shorten <=\pgflinewidth,]
        (\tikzlastnode.north) edge (\tikzlastnode.south)
        (\tikzlastnode.east) edge (\tikzlastnode.west)
        }
    }
}
\tikzset{line/.style={draw, -latex',shorten <=1bp,shorten >=1bp}}

\begin{tikzpicture}[auto]

    \node (XOR-aa)[XOR,scale=1.2] {};


    \node [above of=XOR-aa,node distance=1.5cm,text width=1.5cm,anchor=south,align=center] (bla) {Bla};

    \node [right of=XOR-aa,node distance=3cm,text width=1.5cm,anchor=east,align=center] (Blob) {Blob};

    \node [left of=XOR-aa,node distance=3cm,text width=1.5cm,anchor=west,align=center] (blubb) {Blubb};

    \path[line] (XOR-aa) edge (Blob)
                (bla) edge (XOR-aa)
                (blubb) edge (XOR-aa);
\end{tikzpicture}
\end{document}

Notice in particular how the line is defined:

\tikzset{line/.style={draw, -latex',shorten <=1bp,shorten >=1bp}}

The shorten allows that the arrows does not touch the XOR: without this, a departing arrow could be confused with the the +.

The result is:

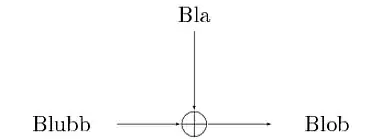

enter image description here

The approach allows to scale the XOR symbol very easily without problems; for example using:

\node (XOR-aa)[XOR,scale=2.5] {};

in the previous MWE leads to:

enter image description here

Claudio Fiandrino
  • 63,575
3

As an alternative to Claudio's XOR style, following code provides a xor shape based in forbidden sign shape.

\documentclass[tikz, border=2mm]{standalone}
\usetikzlibrary{positioning}

\makeatletter
\pgfdeclareshape{xor}
{
  \inheritsavedanchors[from=circle]
  \inheritanchorborder[from=circle]
  \inheritanchor[from=circle]{north}
  \inheritanchor[from=circle]{north west}
  \inheritanchor[from=circle]{north east}
  \inheritanchor[from=circle]{center}
  \inheritanchor[from=circle]{west}
  \inheritanchor[from=circle]{east}
  \inheritanchor[from=circle]{mid}
  \inheritanchor[from=circle]{mid west}
  \inheritanchor[from=circle]{mid east}
  \inheritanchor[from=circle]{base}
  \inheritanchor[from=circle]{base west}
  \inheritanchor[from=circle]{base east}
  \inheritanchor[from=circle]{south}
  \inheritanchor[from=circle]{south west}
  \inheritanchor[from=circle]{south east}
  \inheritbackgroundpath[from=circle]
  \foregroundpath{
    \centerpoint%
    \pgf@xc=\pgf@x%
    \pgf@yc=\pgf@y%
    \pgfutil@tempdima=\radius%
    \pgfmathsetlength{\pgf@xb}{\pgfkeysvalueof{/pgf/outer xsep}}%
    \pgfmathsetlength{\pgf@yb}{\pgfkeysvalueof{/pgf/outer ysep}}%
    \ifdim\pgf@xb<\pgf@yb%
      \advance\pgfutil@tempdima by-\pgf@yb%
    \else%
      \advance\pgfutil@tempdima by-\pgf@xb%
    \fi%
    \pgfpathmoveto{\pgfpointadd{\pgfqpoint{\pgf@xc}{\pgf@yc}}{\pgfqpoint{\pgfutil@tempdima}{0pt}}}
    \pgfpathlineto{\pgfpointadd{\pgfqpoint{\pgf@xc}{\pgf@yc}}{\pgfqpoint{-\pgfutil@tempdima}{0pt}}}
    \pgfpathmoveto{\pgfpointadd{\pgfqpoint{\pgf@xc}{\pgf@yc}}{\pgfqpoint{0pt}{-\pgfutil@tempdima}}}
    \pgfpathlineto{\pgfpointadd{\pgfqpoint{\pgf@xc}{\pgf@yc}}{\pgfqpoint{0pt}{\pgfutil@tempdima}}}
    \pgfsetarrowsstart{}
    \pgfsetarrowsend{}
  }
}
\makeatother

\begin{document}
\begin{tikzpicture}
\node[xor, draw=red, fill=red!30] (A) {};
\node[xor, draw, fill=green!30, right=1cm of A, minimum size=5mm, line width=.5mm] (B) {};
\draw (A)--(B);
\draw[<-] (A)--++(90:1cm) node[above](bla) {Bla};
\draw[->] (bla)--(B);
\end{tikzpicture}
\end{document}

enter image description here

Ignasi
